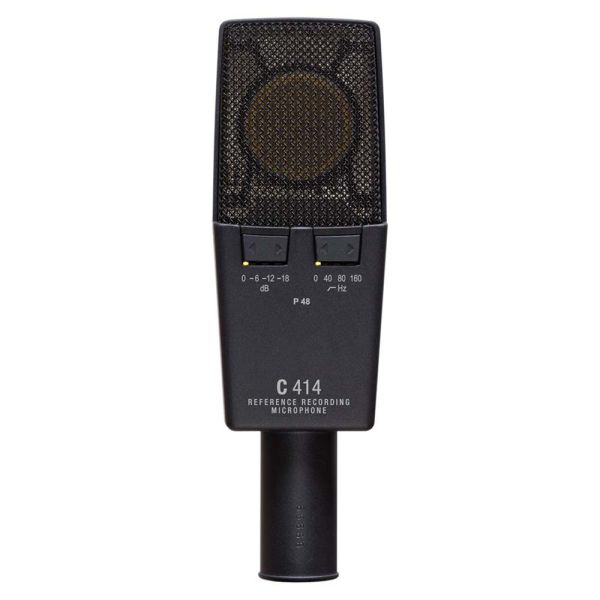

AKG C414 XLS Reference multipattern condenser microphone

The C414 XLS multipattern condenser microphone offers a choice of nine polar patterns for the perfect sonic capture for every application. A peak hold LED displays even the shortest overload peaks. For live sound applications and permanent installations, all controls can easily be disabled for trouble-free use. The C414 XLS maintains the sonic character of the legendary C414 B-ULS, the most popular AKG C414 version since 1971. Engineered for highest linearity and neutral sound, it has been the most versatile large-diaphragm microphone for decades.

General Specifications:

• Audio frequency bandwidth20 - 20000 Hz
• Equivalent noise level6 dB-A
• Sensitivity23 mV/Pa
• Signal to Noise88 dB-A
• Preattenuation Pad-6; -12; -18 dB
• Bass cut filter160; 80; 40 Hz
• Electrical impedance200 Ohms
• Recommended load impedance2200 Ohms
• Polar PatternsCardioid, Figure of eight, Hypercardioid, Omnidirectional, and Wide Cardioid
• Dimensions
•
• Length38 mm
• Width50 mm
• Height160 mm
• Net Weight300 g
• Design
•
• Finishdark gray/silver
• Audio Output
•
• TypeBalanced XLR
• GenderMale
• Contacts3-pin
• Powering Interface
•
• Voltage44 to 52 V
• Current4.5 mA
• Application
•
• Pro StudioYes
• Instrument
•
• VocalsYes
• Piano / StringsYes
• Horns / WoodwindsYes
