EarthQuaker Devices Swiss Things® — Pedalboard Reconciler

SKU
EQDSWISV1
$299.00
In stock

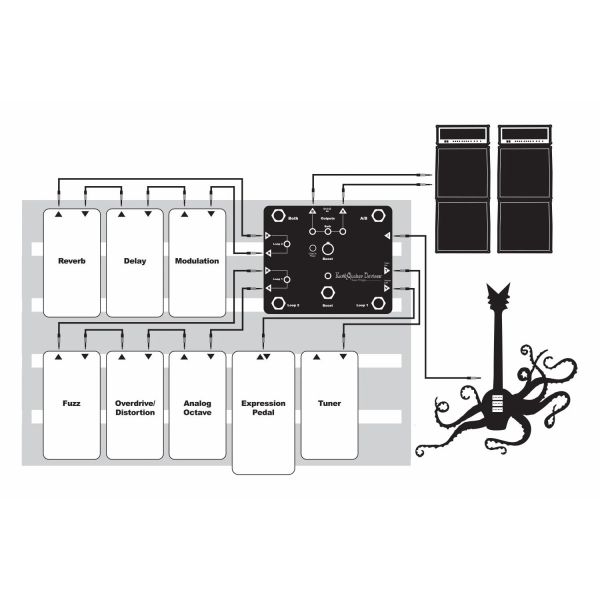

Swiss Things® is the ultimate pedalboard command center. It packs two true-bypass Flexi-Switch® loops, an AB-Y box with transformer isolation, a buffered tuner out, 20dB of clean boost, expression pedal volume control, and a high-headroom output buffer—all in one compact unit. Place it at the top-right of your board and tie your whole rig together with zero signal loss.

With Swiss Things®, you can:
- Run as many pedals as you want without tone-suck
- Engage or bypass entire effects chains with one click
- Use Flexi-Switch® control across your whole setup
- Turn any expression pedal into a clean volume control
- Run multiple amps with no phase or noise issues
- Keep your board neat, tight, and loss-free

Swiss Things® isn’t just a utility box—it’s the backbone of a pro rig.

View Pickup Points
Pickup is available in 1 stores

iHomiLA

821 S Los Angeles St, Los Angeles, 90014

United States

Pickup available

1 pcs
In stock
EarthQuaker Devices

Swiss Things® — Pedalboard Reconciler

Item #: EQDSWISV1

Video Demos

A commanding, tour-proven control center crafted to optimize your entire rig. Swiss Things unites two Flexi-Switch-enabled effects loops, an AB-Y with transformer isolation and phase correction, a buffered tuner out, a 20 dB clean boost, expression-driven master volume, and a high-headroom output buffer—all in one compact hub that eliminates tone-suck, shortens cable runs, and streamlines show control.

Key Features

  • Two independent effects loops: unbuffered for dirt, buffered for time/modulation
  • AB-Y routing with transformer isolation and phase switch
  • Up to +20 dB clean boost post-loops
  • Expression-driven buffered master volume
  • Dedicated buffered tuner output (always on)
  • High-headroom output buffer and Flexi-Switch control
  • Compact, tour-proven design with consolidated cabling

Specifications

Loops
Loop 1 unbuffered, Loop 2 buffered
AB-Y Routing
A/B select + Both; Output B isolated with phase switch
Boost
+20 dB clean, post-loops
Volume Control
TRS expression-driven master volume
Tuner Out
Dedicated buffered output
Output Stage
High-headroom buffer
Flexi-Switch
Momentary or latching on all switches
Dimensions
4.75 × 5.65 × 2.25 in (121 × 144 × 57 mm)
Current Draw
15 mA
Input / Output Z
1 MΩ in / 1 kΩ out
Power
9V DC, center-negative, 2.1 mm

Product Gallery

Related Keywords: EarthQuaker Devices Swiss Things, EQDSWISV1, pedalboard reconciler, guitar ABY switcher, pedalboard looper, effects loop switcher, expression volume pedal controller, guitar rig optimizer, clean boost pedal, amp phase correction
More Information
Drop Shipping No
UPC 855755007831
Stock Last 1
