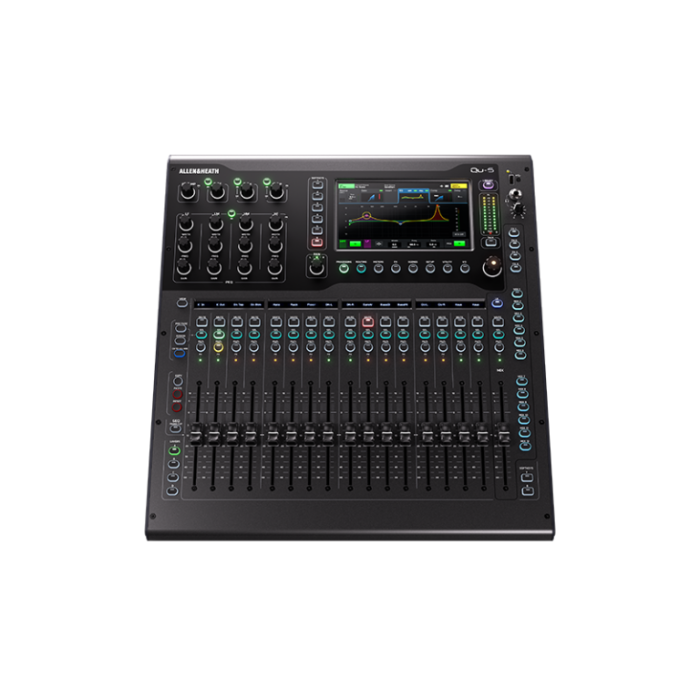

Allen & Heath Qu-5 32 Channel Digital Mixer

Feedback Assistant

Say Goodbye to Feedback

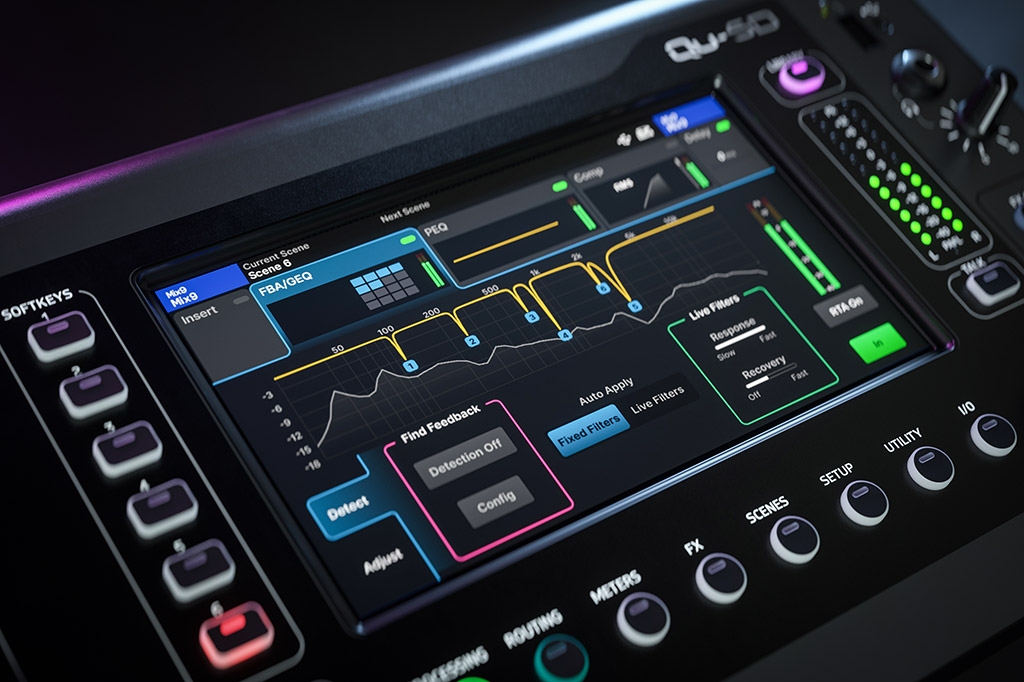

Qu’s easy to use Feedback Assistant automatically identifies and removes problematic frequencies with up to 16 filters per output, allowing you to mix with confidence and put feedback worries behind you.

Capture & Playback

Reliable Recording and Playback. Anywhere.

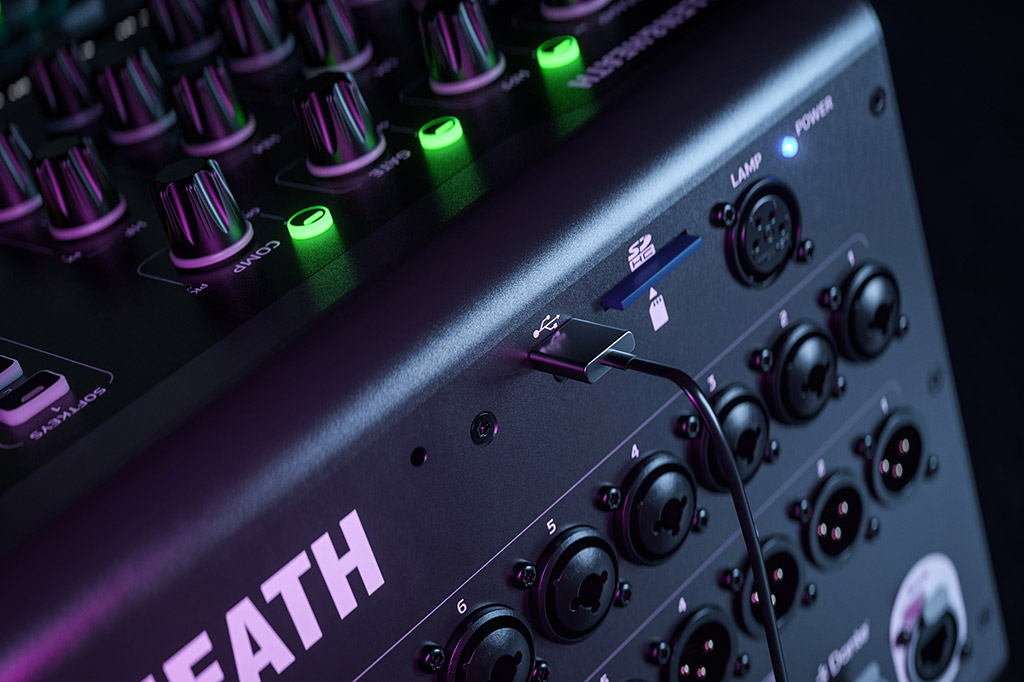

Every Qu model is packed with versatile recording and playback options, with an integrated 32×32 USB-C audio interface, 32-channel multitrack support via SD card, and simple stereo recording and playback through the USB-A port, whatever your application.

Updated Workflow

The original Qu series was well loved for its ease and speed of use, making it the perfect mixer for engineers coming from the analogue world. The new Qu takes this further, maintaining a focus on “walk up and mix” usability while adding 4 fully customisable layers, more assignable SoftKeys for workflow optimisation, and flexible routing options in addition to the classic 1:1 Qu routing, all accessible via a newly developed, fast and responsive, user interface.

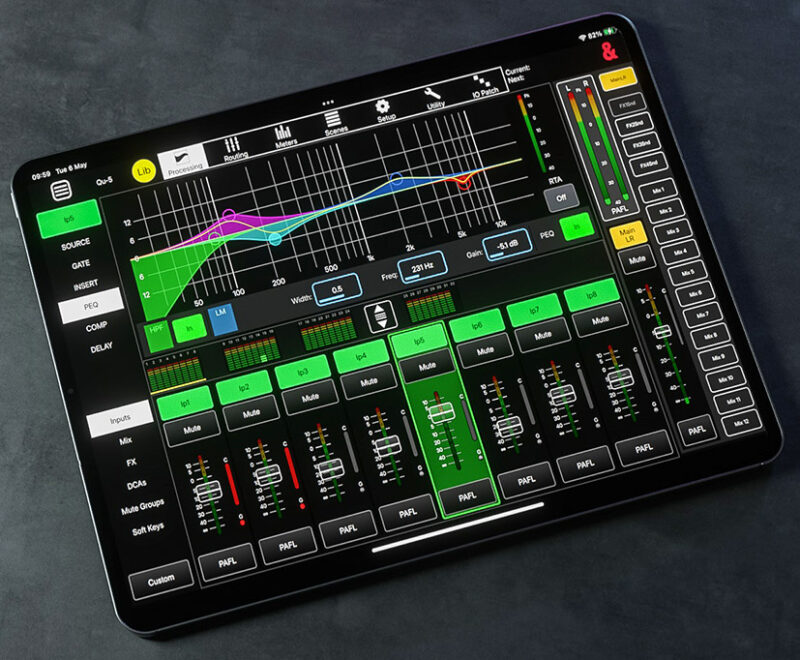

Qu-MixPad

Qu-MixPad is an engineer’s live mixing tool.

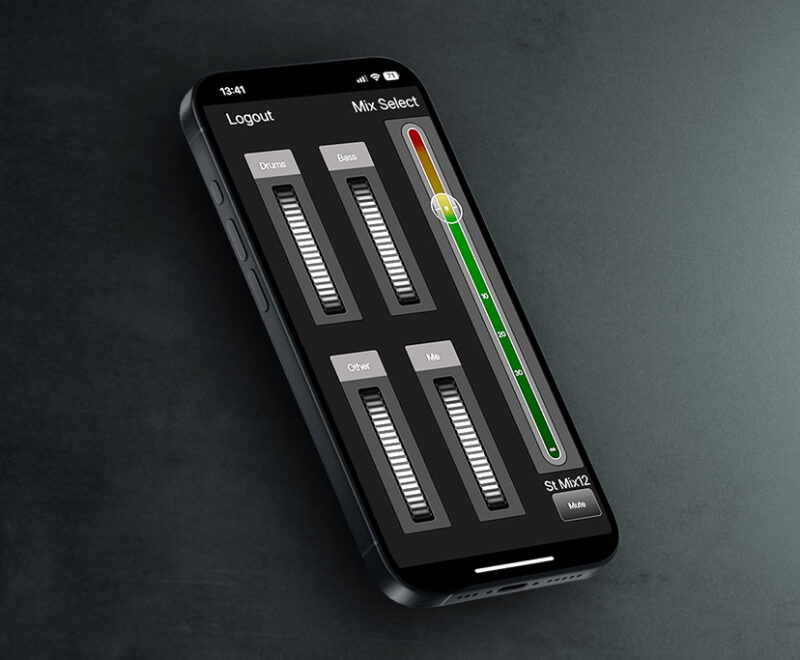

Qu4You

Musician’s Mixing App for Qu

All New Hardware.

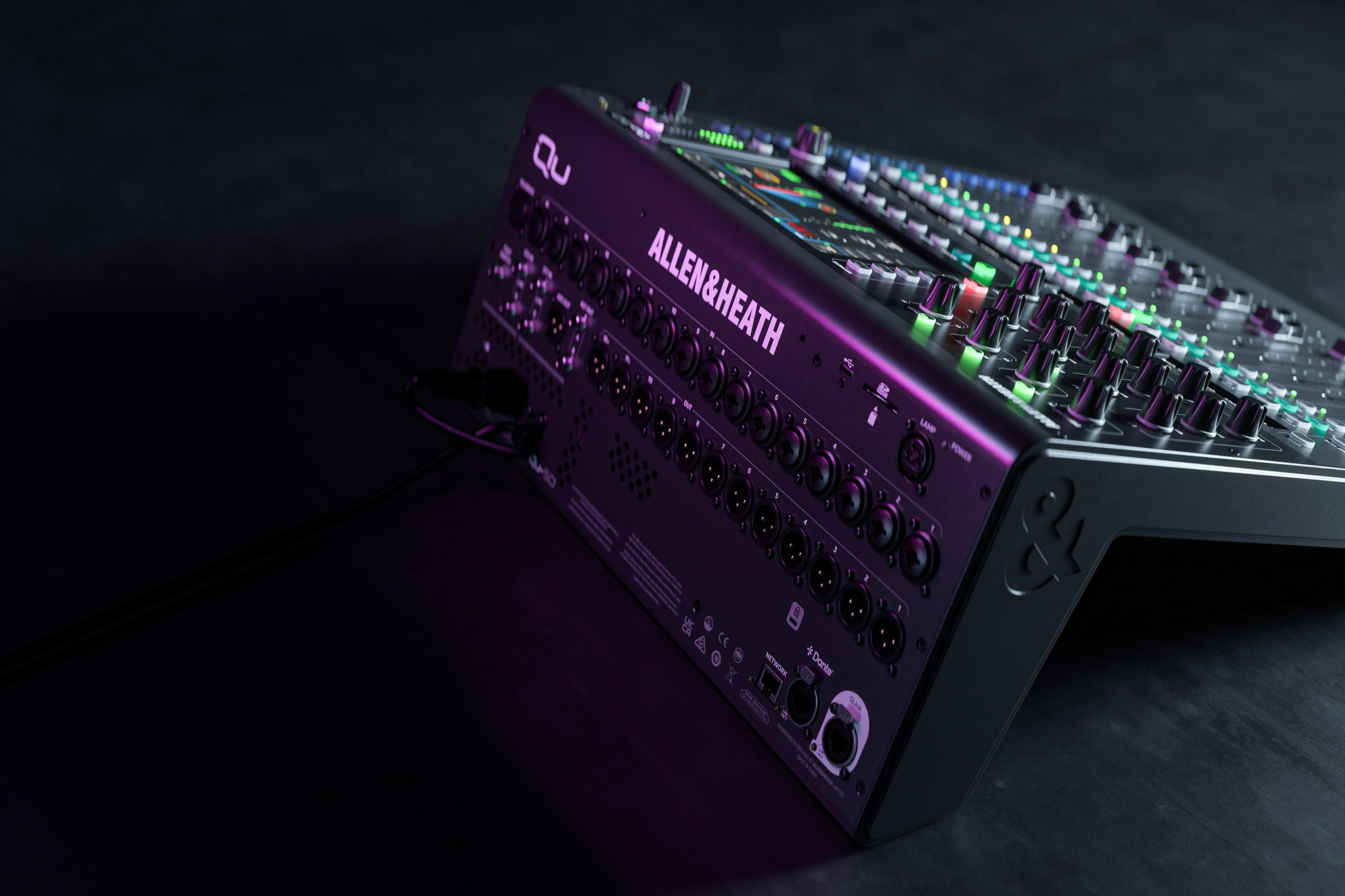

The new Qu retains the much-loved appearance and form factor of the original Qu series, but with multiple hardware improvements to elevate the sonic performance and mixing experience.

Audio
Updated microphone preamps and high-performance 96kHz AD/DA converters combine to deliver pristine audio to and from the XCVI core, preserving every detail of the source.

Control

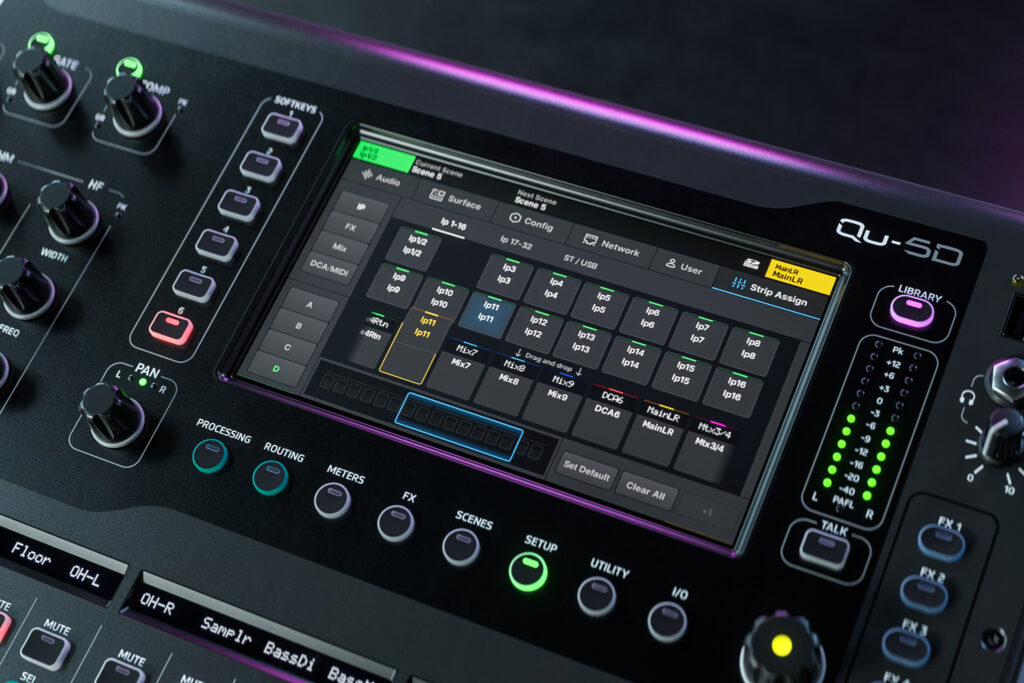

Every channel now features a channel display – showing channel name, channel type, or socket number – and a chromatic channel meter for at-a-glance level information, and the new touchscreen accommodates a completely redesigned user interface.

Qu-5

Processing & FX

96kHz XCVI Core
6 Multi-FX Engines with dedicated Stereo Returns
DEEP Processing Ready

Mix Architecture

38x Inputs to Mix (32x Mono/Linkable, 3x Stereo)
12 Mixes (6 Mono/Linkable Aux/Group, 6 Stereo Aux/Group)
4 Mono/Linkable Matrix
Stereo Main LR Output

I/O

16 XLR/Jack ‘Combi’ Mic/Line Input Sockets
2 Stereo Line Input Sockets (each 2x TRS)
12 XLR Output Sockets
1 XLR Talkback Socket
2 TRS Output Sockets
1 AES3 Stereo Digital Output Socket
128×128 Intelligent SLink Port for Everything I/O expansion and system connections
Stereo Headphone Output

Control

7” Capacitive Touchscreen
17 100mm Motorised Faders
4 Channel Strip Layers
Remote control via free apps – Windows/MacOS/iOS/Android
8 SoftKeys
Configurable single/dual Footswitch Connection

Recording & Playback

USB-A For stereo audio record/playback and data transfer
USB-C Audio interface for multichannel record/playback (32×32)
SD Card Slot for multichannel audio recording or playback (16×16@96kHz, 32×32@48kHz)

Misc

19” Rack Mountable (optional kit available)
12V Lamp Socket
Configurable Chromatic Channel Meter LED’s

Everything I/O Compatible

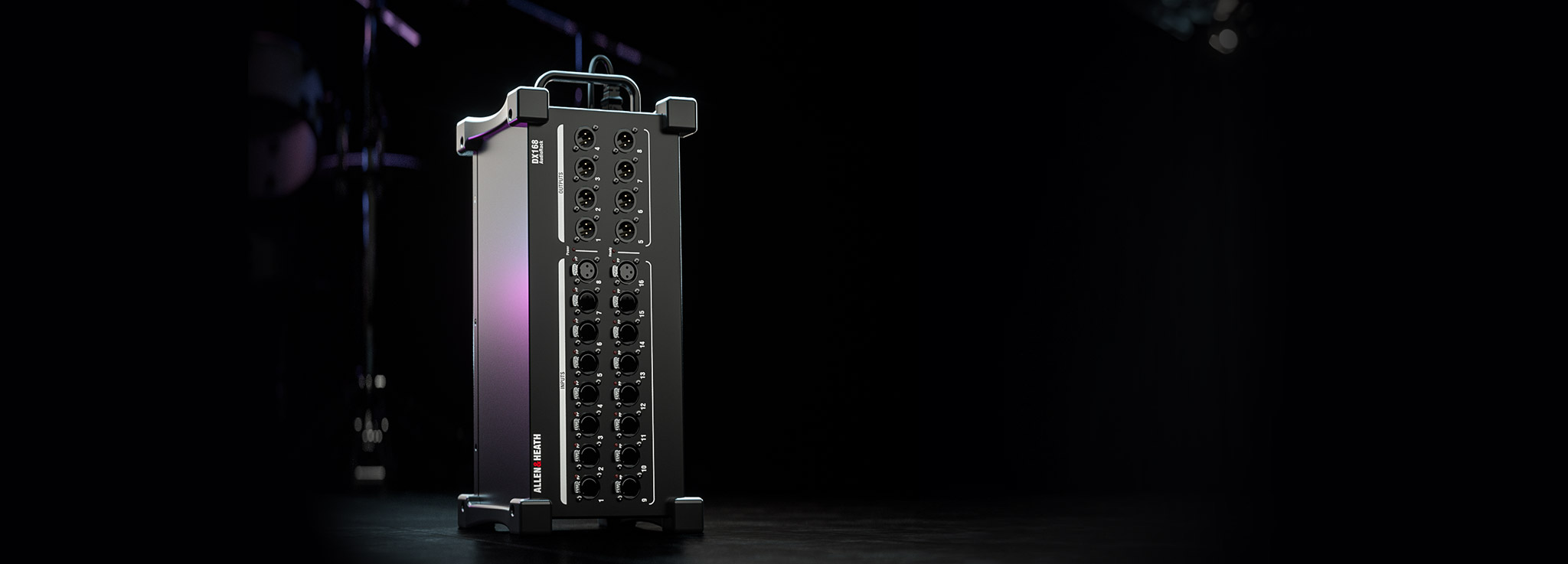

Thanks to its SLink port, Qu can be connected to the Everything I/O family of rack and stage box expanders making it a flexible, mix ‘n’ match solution for owners of other Allen & Heath digital systems. It can even be connected directly to other Allen & Heath consoles with up to 128×128 channels of 96kHz audio available for patching.

More Information

More Information
Drop Shipping	Yes
UPC	5056756901073
Stock Last	3
