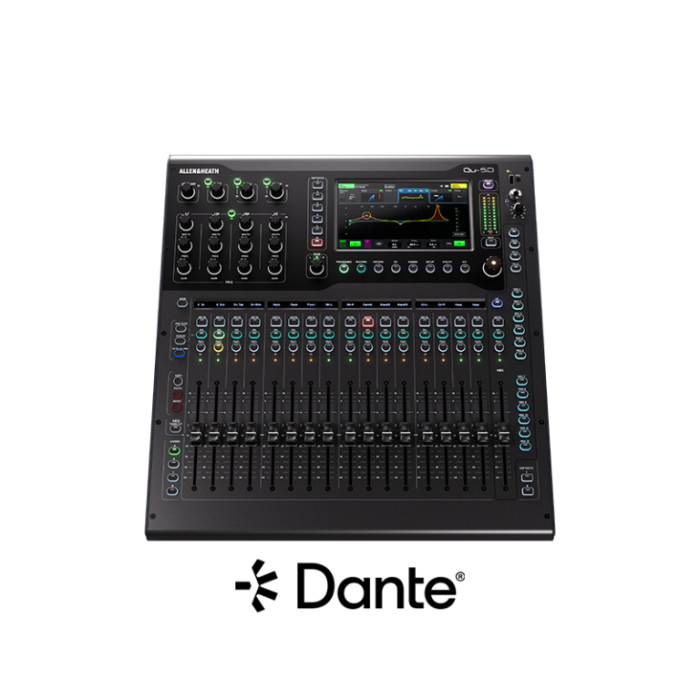

Allen & Heath Qu-5D 32 Channel Digital Mixer with 16x16 Dante
SKU
AHQU5D
$2,599.99
In stock
Allen & Heath’s legendary digital mixer is reborn, supercharged with a 96kHz XCVI core for DEEP Processing capabilities, increased channel count with fully flexible patching across 4 customisable layers, a completely redesigned user interface, significant hardware upgrades, plus extended connectivity and optional Dante.
Qu’s easy to use Feedback Assistant automatically identifies and removes problematic frequencies with up to 16 filters per output, allowing you to mix with confidence and put feedback worries behind you.
Capture & Playback
Reliable Recording and Playback. Anywhere.
Every Qu model is packed with versatile recording and playback options, with an integrated 32×32 USB-C audio interface, 32-channel multitrack support via SD card, and simple stereo recording and playback through the USB-A port, whatever your application.
Updated Workflow
The original Qu series was well loved for its ease and speed of use, making it the perfect mixer for engineers coming from the analogue world. The new Qu takes this further, maintaining a focus on “walk up and mix” usability while adding 4 fully customisable layers, more assignable SoftKeys for workflow optimisation, and flexible routing options in addition to the classic 1:1 Qu routing, all accessible via a newly developed, fast and responsive, user interface.
Qu-MixPad
Qu-MixPad is an engineer’s live mixing tool.
Qu4You
Musician’s Mixing App for Qu
All New Hardware.
The new Qu retains the much-loved appearance and form factor of the original Qu series, but with multiple hardware improvements to elevate the sonic performance and mixing experience.
Audio Updated microphone preamps and high-performance 96kHz AD/DA converters combine to deliver pristine audio to and from the XCVI core, preserving every detail of the source.
Control Every channel now features a channel display – showing channel name, channel type, or socket number – and a chromatic channel meter for at-a-glance level information, and the new touchscreen accommodates a completely redesigned user interface.
Dante Enabled The Qu-5D provides a 16×16 Dante interface at 96kHz or 48kHz for integration into larger systems or installs.
128×128 Intelligent SLink Port for Everything I/O expansion and system connections
Stereo Headphone Output
Control
7” Capacitive Touchscreen
17 100mm Motorised Faders
4 Channel Strip Layers
Remote control via free apps – Windows/MacOS/iOS/Android
8 SoftKeys
Configurable single/dual Footswitch Connection
Recording & Playback
USB-A For stereo audio record/playback and data transfer
USB-C Audio interface for multichannel record/playback (32×32)
SD Card Slot for multichannel audio recording or playback (16×16@96kHz, 32×32@48kHz)
16×16 48/96 kHz Dante interface with dedicated locking EtherCon port (Qu-5D only)
Misc
19” Rack Mountable (optional kit available)
12V Lamp Socket
Configurable Chromatic Channel Meter LED’s
Everything I/O Compatible
Thanks to its SLink port, Qu can be connected to the Everything I/O family of rack and stage box expanders making it a flexible, mix ‘n’ match solution for owners of other Allen & Heath digital systems. It can even be connected directly to other Allen & Heath consoles with up to 128×128 channels of 96kHz audio available for patching.
