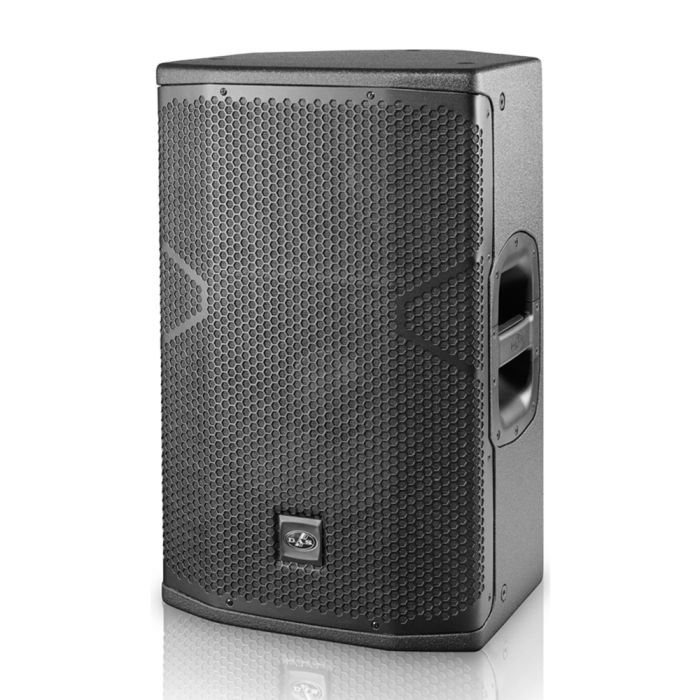

DAS Audio Vantec 12A

Compact multi-purpose system with monitor position
Ultra lightweight Class D amplifier with SMPS
User definable 24-bit DSP with LCD screen
Presets: Live; Dance; Vocals; Bass Boost; Vocals & Mode
Stackable 3-band EQ
High-Definition wireless streaming of music in stereo
Pole mount socket with dual angles 0/10
Rigging points

The Vantec 12A is a powered portable system with a multi-angle enclosure that permits stage monitor applications as well as a compact P.A. system.

The 1500 Wpeak power the Class D amplifier provides extended bandwidth; wide dynamic range and exceptionally low distortion-features hard to find on other systems in this market segment.

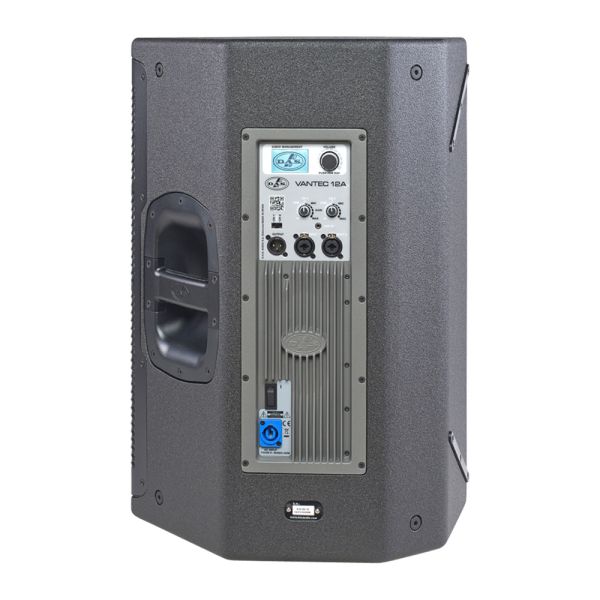

Digital Finite Impulse Response (FIR) filters are used in the signal processing of the powered Vantec systems. User configurable voicing; filter and EQ modes; and gain control are achieved by way of a rotary-knob interface and LCD screen on the rear of the cabinet. The Vantec series also allows users to wirelessly stream music from any mobile device.

The 12F4 loudspeaker provides accurate low frequency reproduction. High frequencies are handled by the M-28 FEM optimized compression driver with 1 exit offering excellent performance.

Specifications:
Amplifier Power: 750 WCont. / 1500 Wpeak Class D, Biamplified
Frequency Range (-10 dB): 60 Hz - 20 kHz
Rated Peak SPL at 1 m: 135 dB
Dispersion: 90º x 50º
Enclosure Material: Birch Plywood
Color/Finish: Black/ISO-flex Paint
Connectors: Audio - Input: Female XLR Aux In: 1/8" (3.5 mm) Mini Loop Thru: Male XLR // AC - Input: powerCON
AC Requirements: 2.4 A, 115 V, 50 Hz/60 Hz // 1.2 A, 230 V, 50 Hz/60 Hz
Dimensions (H x W x D): 24 x 15 x 14.8 in // 61 x 38 x 37.5 cm
Weight: 46.2 lb (21 kg)
:
