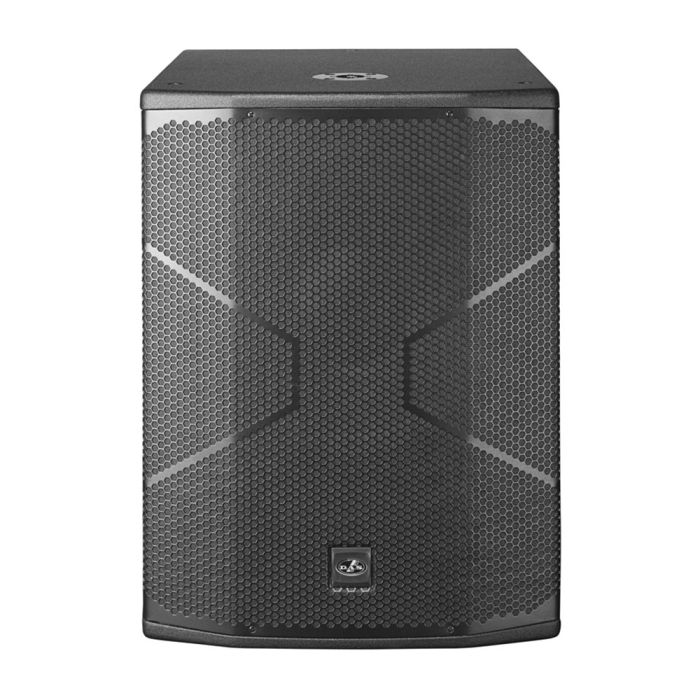

DAS Audio Vantec 18A

Powered subwoofer system
High output 18LX loudspeaker
Polarity switch (0-180)
Filtered output defeat switch
Variable 80-125 Hz low-pass filter
Gain control
Rigging points

The Vantec 18A is a powered subwoofer system designed to provide extended bass response for the Vantec full-range cabinets. A 2000 Wpeak advanced Class D amplifier drives a D.A.S. 18LX long excursion loudspeaker incorporates a 4 voice coil for high power handling and output.

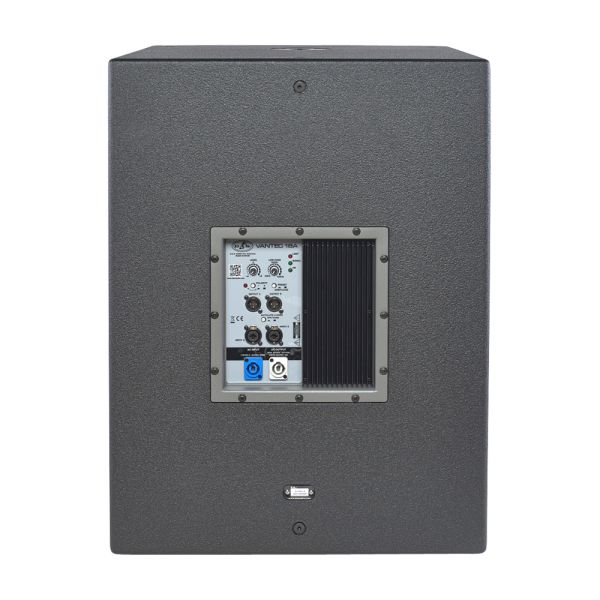

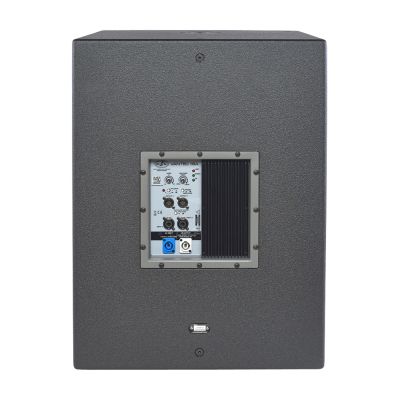

The Vantec 18A subwoofer system offers two balanced inputs with stereo filtered output connections for Vantec satellite systems. The variable crossover ranges from 80 Hz-125 Hz and can be defeated to offer stereo loop thru connections. A gain control and polarity reverse feature increase user control over the system. A standard 35 mm pole mount socket allows the Vantec 18A to be used with satellite systems.
Specifications:
Nominal LF Amplifier Power: 1000 W Cont. / 2000 Wpeak (Class D)
Frequency Range (-10 dB): Loud: 35 Hz - 125 Hz // Deep: 30 Hz - 125 Hz
Rated Peak SPL at 1 m: 134 dB
Connectors: Audio INPUT: 2 x Female XLR Audio LOOP THRU: 2 x Male XLR // AC INPUT: powerCON AC OUTPUT: powerCON
AC Requirements: 115 V, 50 Hz/60 Hz // 230 V, 50 Hz/60 Hz
Enclosure Material: Birch Plywood
Color/Finish: Black ISO-flex Paint
Dimensions (H x W x D): 28 x 21.3 x 25.6 in // 71 x 54 x 65 cm
Weight: 79.2 lb (36 kg)
:
:
