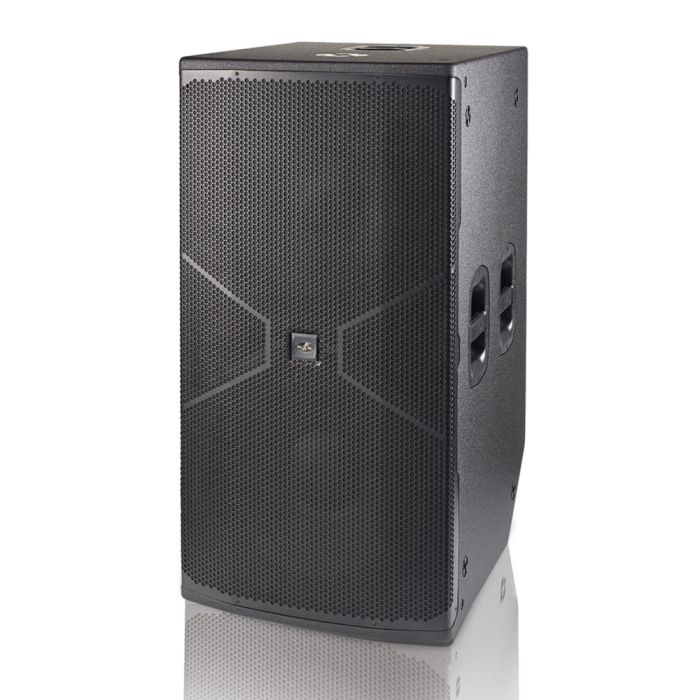

DAS Audio Vantec-218A
Powered subwoofer system
4000 Wpeak Class D amplifier
EQ Presets: Deep; Loud
Variable Low Pass Filter (w/ HPF/Thru switch)
Sub level gain control; polarity reverse
Front logo on/off switch
Rigging points
Rear located wheels for easy movement
Top located pole mount socket
Rigging points (one cabinet only)
Rear located wheels and top handle for easy movement
The Vantec 218A is a powered bass subwoofer system designed to provide extended bass response for the Vantec full-range cabinets. A powerful amplifier drives dual D.A.S. 18LX long excursion bass loudspeakers incorporating 4 voice coils and massive magnet structures provide high power handling and impressive output.
The Vantec 218A is powered by a Class D amplifier with switch mode power supply and a 4000 Wpeak power rating. The system includes two balanced inputs (A-B) with stereo HPF filtered output connections for satellite systems. Defeating the HPF filter offers stereo loop thru connections. The variable LPF crossover ranges from 80 Hz-125 Hz. A gain control and polarity reverse feature increase user control over the system.
The compact Vantec 218A cabinet is manufactured using birch plywood and is finished with a coating of the highly resistant ISO-flex black paint for durability. The powder-coated steel front grille protects the D.A.S. components. Handles on the sides and the rear of the cabinet along with two rear located wheels make moving the box easier.
Specifications:
Amplifier Power: 2000 Wcont. / 4000 Wpeak Class D
Frequency Range (-10 dB): Loud: 35 Hz - 125 Hz / Deep: 30 Hz - 125 Hz
Rated Peak SPL at 1 m: 140 dB
Connectors: Audio INPUT: 2 x Female XLR Audio LOOP THRU: 2 x Male XLR /// AC INPUT: powerCON AC OUTPUT: powerCON
AC Requirements: Universal Mains 6.0 A, 115 V, 50 Hz/60 Hz /// 3.0 A, 230 V, 50 Hz/60 Hz
Enclosure Material: Birch Plywood
Color/Finish: Black/ISO-flex paint
Dimensions (H x W x D): 41.7 x 21.3 x 26.4 in
Weight: 158.4 lb (72 kg)
:
:
UPC | 8436542216197 |
---|
