EQDDATAV1
Out of stock

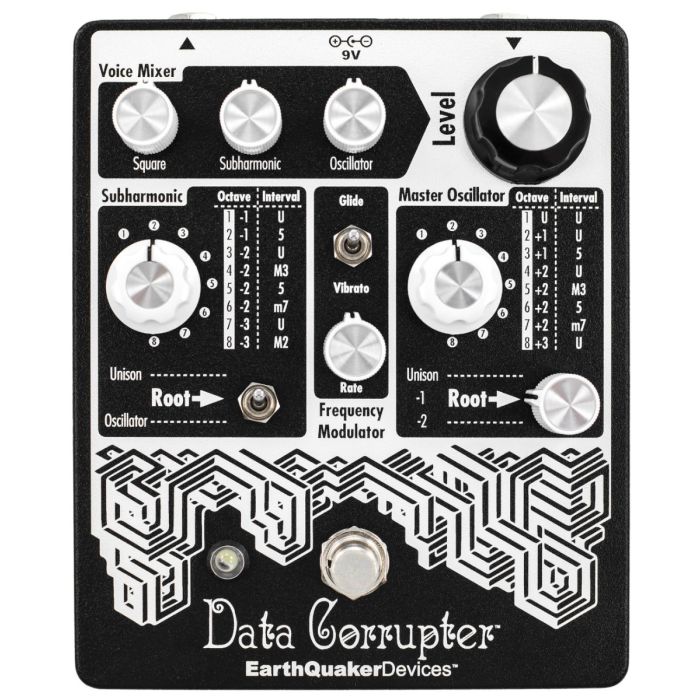

EarthQuaker Devices Data Corrupter — Modulated Monophonic Harmonizing PLL
$279.00
Claim a precision-tuned, stage-ready PLL synthesizer that transforms your instrument into a commanding, harmonically rich performance platform.
EarthQuaker Devices
Data Corrupter — Modulated Monophonic Harmonizing PLL
Item #: EQDDATAV1
Audio Demo
Video Demo
A commanding, analog PLL synthesizer crafted for players who want brutal square-wave authority with precise, musical control. Data Corrupter multiplies, divides, and modulates your signal into a three-voice, performance-ready synth engine that tracks single-note lines with conviction on stage and in the studio. Built on a CMOS Phase Locked Loop, it generates a Master Oscillator with selectable root octaves, interval programs, Subharmonic voices, Glide portamento, and Vibrato modulation. Its Flexi-Switch operation offers both momentary and latching modes for expressive, performance-ready control.
Key Features
- Three-voice analog PLL engine: Master, Subharmonic, Square fuzz
- Eight Master intervals and eight Subharmonic programs
- Selectable root octave for versatile instrument compatibility
- Glide portamento and Vibrato modulation for expressive movement
- Independent voice mixer for Oscillator, Subharmonic, and Square
- True bypass with relay-based Flexi-Switch (momentary/latching)
- Hand-built rugged enclosure for stage-ready durability
Specifications
Engine
Analog monophonic harmonizing PLL with modulation
Voices
Master Oscillator, Subharmonic, Square fuzz
Master Root
Unison, −1 octave, −2 octaves
Master Programs
Eight interval selections
Frequency Modulator
Glide portamento, Vibrato modulation
Subharmonic Programs
Eight programs up to −3 octaves
Voice Mixer
Independent level for Oscillator, Subharmonic, Square
Bypass
True bypass, relay-based Flexi-Switch
Input Impedance
1 MΩ
Output Impedance
<1 kΩ
Current Draw
26 mA
Power
9V DC center-negative
Dimensions
5.65 × 4.75 × 2.25 in (144 × 121 × 57 mm)
Product Gallery
Related Keywords:
EarthQuaker Devices Data Corrupter, EQDDATAV1, analog PLL synth, guitar synthesizer pedal, monophonic harmonizer, square wave fuzz
