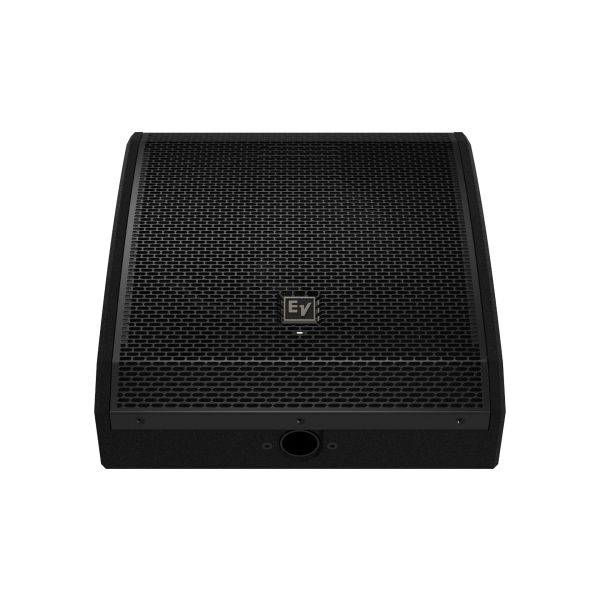

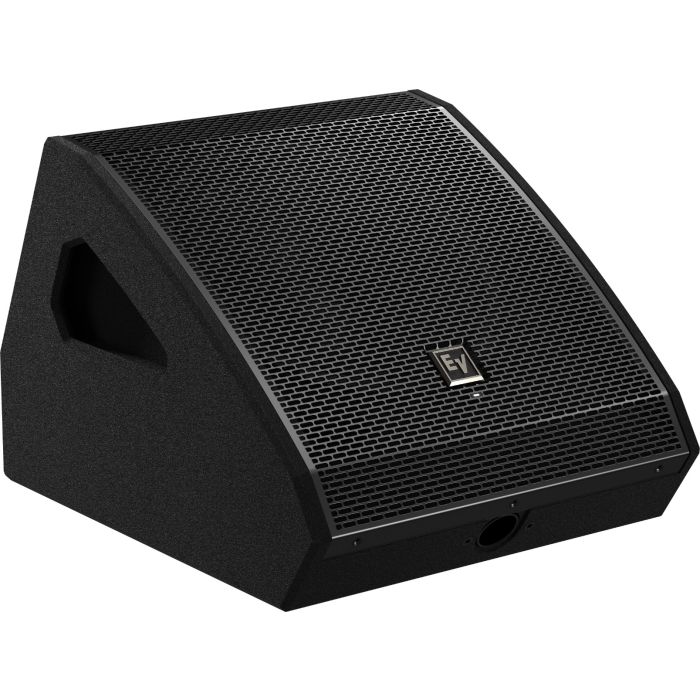

Electro Voice PXM-12MP 12" Coaxial Monitor Speaker

SKU
PXM-12MP-US
$949.00
In stock
View Pickup Points
Pickup is available in 1 stores

iHomiLA

821 S Los Angeles St, Los Angeles, 90014

United States

Pickup available

4 pcs
In stock
Size Guilde Delivery & Return
Electro-Voice

PXM-12MP 12" Powered Coaxial Monitor Speaker

Item #: PXM-12MP | UPC: N/A
The Electro-Voice PXM-12MP is a professional 12" powered coaxial monitor designed to deliver powerful, accurate stage monitoring for musicians, DJs, and live sound engineers. Featuring a 12" / 1.75" coaxial driver and a symmetrical 90° × 90° coverage pattern, the PXM-12MP provides consistent sound dispersion across the stage, ensuring performers hear their mix clearly from virtually any position. The acoustically optimized 55° floor angle allows the monitor to project directly toward the performer without sacrificing clarity or intelligibility.

Powered by a Dynacord-designed 700-watt Class-D amplifier capable of producing up to 129 dB peak SPL, the PXM-12MP delivers impressive headroom and dynamic performance even in demanding stage environments. QuickSmartDSP provides intuitive control with presets, system matching, and detailed monitoring via the built-in LCD display. With flexible inputs, pole-mount capability, and rugged plywood construction, the PXM-12MP easily transitions from floor monitor to compact front-of-house PA system.

Key Features

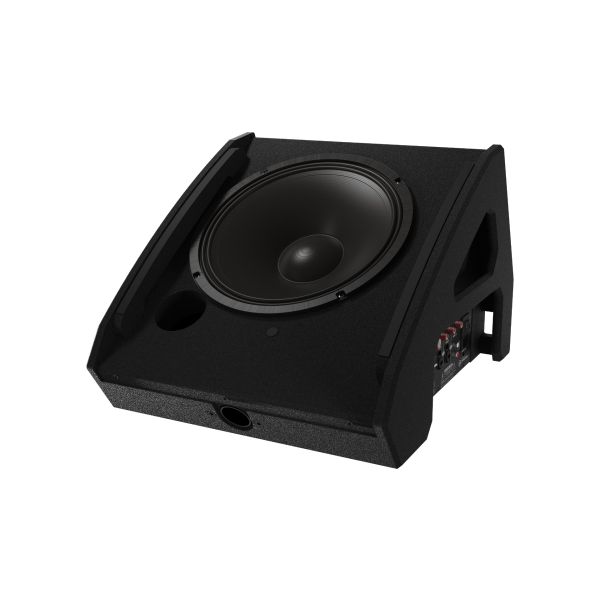

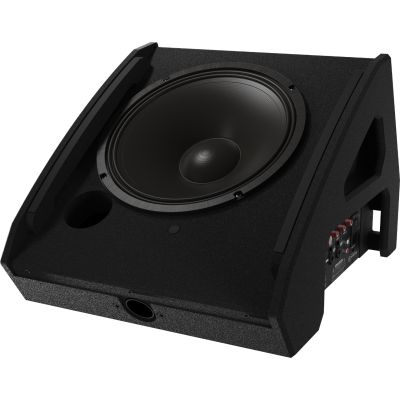

  • 12" / 1.75" coaxial driver with symmetrical 90° × 90° coverage for consistent stage monitoring
  • Dynacord-engineered 700W Class-D amplifier delivering up to 129 dB peak SPL
  • QuickSmartDSP with presets, 3-band EQ, limiter monitoring, and customizable user settings
  • Optimized 55° floor monitor angle for clear on-stage monitoring at any position
  • Multi-function design works as stage monitor, fill speaker, delay speaker, or compact PA

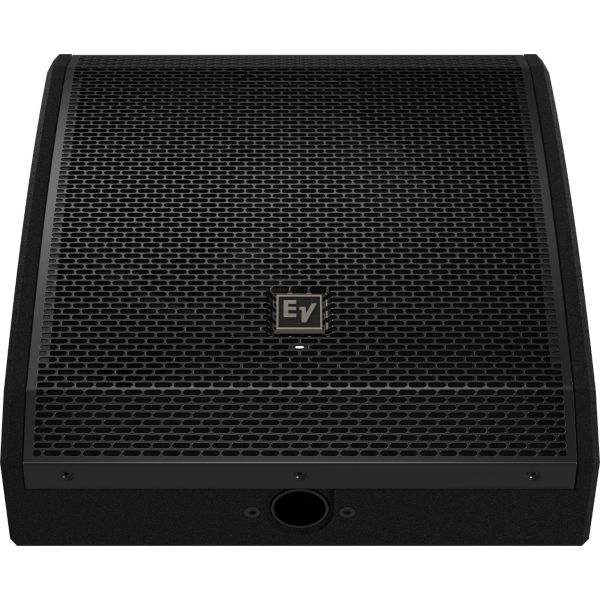

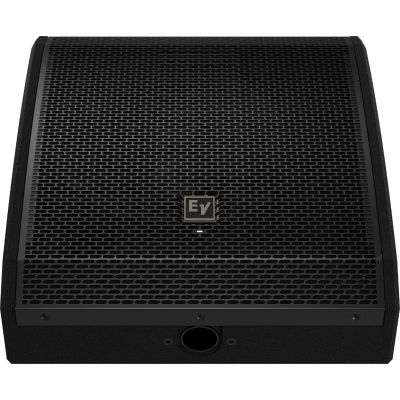

  • Durable 15 mm plywood enclosure with steel grille for touring reliability

Specifications

Frequency Response (-3 dB)
64 Hz – 20 kHz
Frequency Range (-10 dB)
53 Hz – 20 kHz
Maximum SPL
129 dB
Coverage (H × V)
90° × 90°
Amplifier Power
700 W Class-D
LF / HF Power
500 W LF / 200 W HF
Crossover Frequency
1.6 kHz
Transducer
12" / 1.75" 2-way coaxial driver

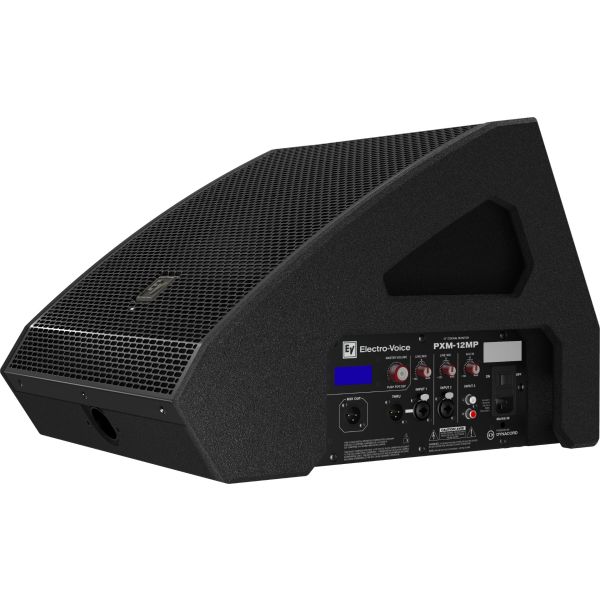

Inputs
2 × XLR/TRS combo, 1 × stereo RCA
Output
1 × XLR THRU
Enclosure
15 mm Plywood with steel grille
Dimensions (H × W × D)
334 × 409 × 484 mm (13.1 × 16.1 × 19.0 in)
Weight
13.5 kg (29.8 lb)
Power Requirements
100–240 V AC, 50–60 Hz
Related Keywords: Electro-Voice PXM-12MP, EV stage monitor, powered coaxial monitor speaker, 12 inch powered monitor, DJ stage monitor speaker, live sound monitor, EV floor wedge speaker
More Information
Drop Shipping No
UPC 800549941839
Stock Last 4
