Focusrite iTrack Solo Lighting

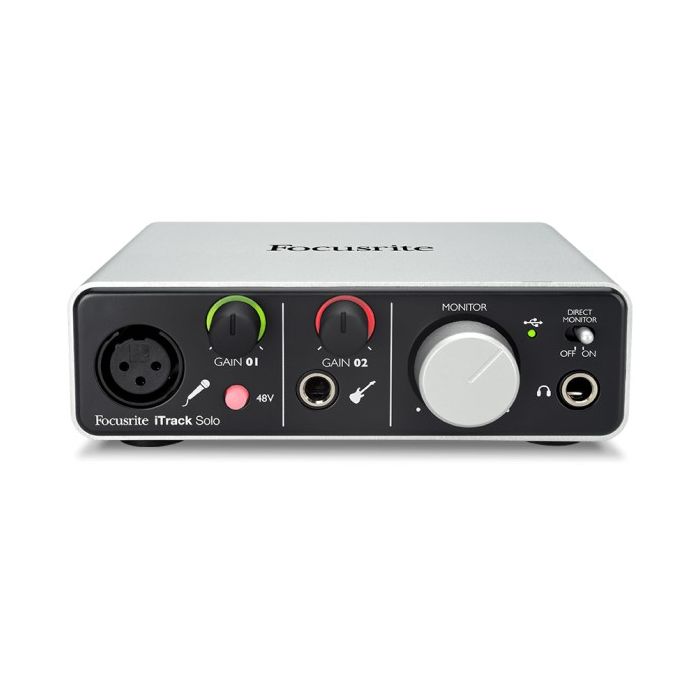

iTrack Solo Lighting Front Tilted

SIMPLE PROFESSIONAL RECORDING ON MAC, PC AND IPAD
Record However You Want

Whatever type of music you want to make, and whatever you want to record it on, iTrack Solo is the simplest way to do it.

SPECIFICATIONS

FRONT PANEL
1 microphone input - XLR

1 Instrument input ¼’ unbalanced

2 Gain knobs

2 Gain halo signal indicators

48V Phantom power switch

Direct monitor switch

Large monitor level dial (controls headphone and line level outputs)

REAR PANEL
2 unbalanced monitor outputs - RCA Phono

DEVICE LINK port (to connect iTrack Solo to iPad)

USB 2.0 Port

Kensington Lock slot

INCLUDED SOFTWARE
Ableton Live Lite 9 - professional music making software to use your iTrack Solo with a Mac or PC.

Focusrite Scarlett plug-in suite - collection of software plug-ins bringing effects to your music software (like Ableton Live for example).

MIC ANALOGUE INPUT PERFORMANCE
Frequency Response: 20Hz - 20kHz +/- 0.2 dB
THD+N: < 0.002% (minimum gain, -1dBFS input with 22Hz/22kHz bandpass filter)
Equivalent Input Noise (EIN): < -120dB: measured at minimum gain with, -1 dBFS (20Hz/22kHz bandpass filter)
Gain Range: +10dB to +55dB
Max Input Level: +4dBu

INSTRUMENT
Frequency Response: 20Hz - 20kHz +/- 0.2dB
THD+N: 0.003% (measured with -1dBFS input and 22Hz/22kHz bandpass filter)
Noise: -87dBu (22Hz/22kHz bandpass filter)
Gain Range: -10dB to +55dB
Max Input Level: +2dBu

ANALOGUE OUTPUT PERFORMANCE
Nominal Output Level: 0dBFS = 10dBu, unbalanced
Frequency Response: 20Hz - 20kHz +/- 0.2dB
THD+N: < 0.001% (measured with 0dBFS input 22Hz/22kHz bandpass filter, un-weighted)

DIGITAL PERFORMANCE
Clock sources: Internal clock only
A-D Dynamic Range: 105dB 'A-weighted' (all inputs). Converter chipset A-D dynamic range 114dB
D-A Dynamic Range: 105dB 'A-weighted' (all outputs). Converter chipset D-A dynamic range 114dB
Supported sample rates: 44.1 KHz, 48 KHz, 88.2 KHz, 96 KHz - Mac and PC
44.1 KHz, 48 KHz - iPad

CROSSTALK
Input to Input: Better than 90dB
Output to Output: Better than 90dB
Input to Output: Better than 85dB

INPUT METERING
Ring LED lit Green Signal present (-24 dBFS)
Ring LED lit Red Signal overload (0dBFS), peak held for approximately 1 second

WEIGHT AND DIMENSIONS
Height 45 mm / 1.77'
Width 150 mm / 6'
Depth 100 mm / 4'
Weight 500 g / 1 lb

IN THE BOX
iTrack Solo

1.2m USB cable

1.2m "DEVICE LINK" cable (to connect to a Lightning iPad)

Getting started guide

Registration card

Download card for Ableton Live Lite / Scarlett Plug-in Suite

USB power supply (US only)

COMPATIBLE IPADS
iTrack Solo Lightning: Any iPad with Lightning connector.

Standard iTrack Solo: iPad (1st gen), iPad (2nd gen) and iPad (3rd gen)
