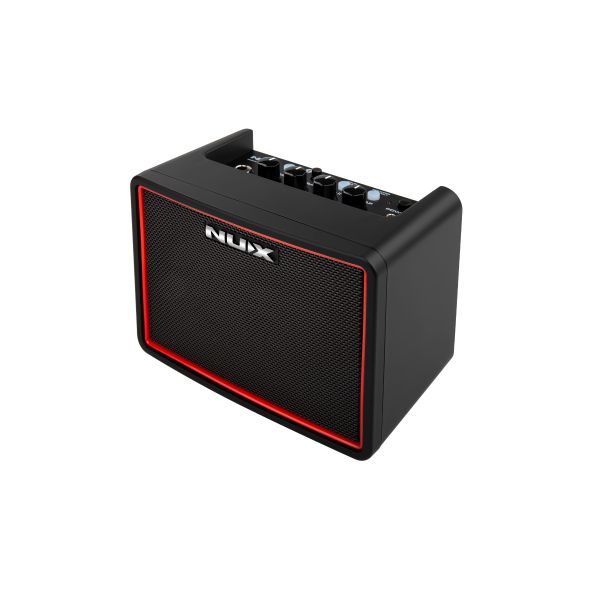

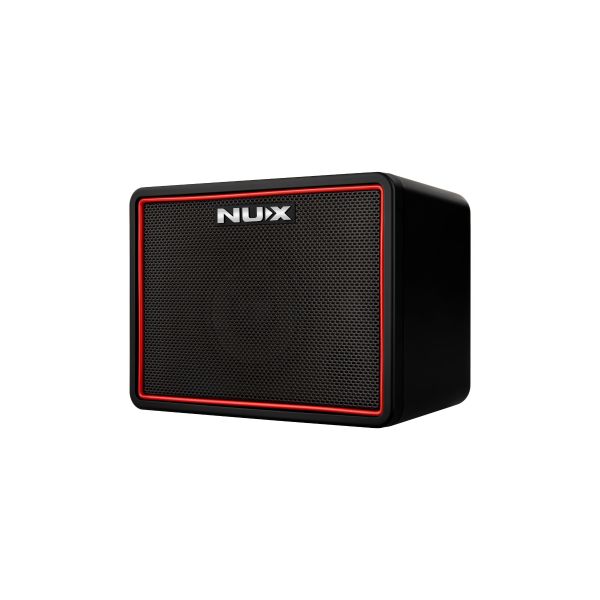

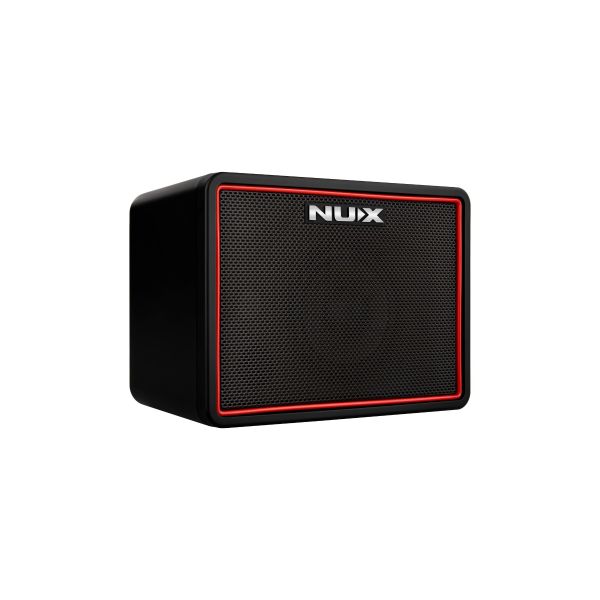

NUX Mighty Lite BT mkII Portable Desktop Amp for Guitar and Bass

The MIGHTY LITE BT MKII provides a variety of effects for electric guitar and bass guitar including amp modeling and cabinet IRs. It also comes with acoustic amp modeling and acoustic IRs to let you simulate acoustic guitar tones. And, you can even load 3rd party IRs through Mighty Editor edit software to expand your tone. (You can load any WAV format IRs, the Mighty Editor will convert to 32bits/48kHz onto the device automatically.)

*All of the brand and model names mentioned on this page are Trademarks of their respective owners, which are in no way associated or affiliated with NUX Effects and Cherub Technology CO. LTD.

Mighty Amp App & Mighty Editor Software

The MightyAmp  APP and Mighty Editor  edit software let’s you tweak all the signal blocks and parameters. The MIGHTY LITE BT MKII includes GATE, EFX, AMP, IR, MOD, DLY and RVB signal blocks. Along with the included 34 built-in IRs, here are 20 empty slots, for 3rd party IRs loading. No need to worry about the sampling rate, Mighty Editor  edit software can convert the WAV(IR) format automatically.

“The MIGHTY LITE BT MKII includes USB-C Audio, so it can be a USB recording interface. It supports Normal/ Dry Out/ Re-amp/ Loopback routing. Set it up via the MightyAmp  APP or Mighty Editor  edit software. You can also livestream with Loopback!

*All of the brand and model names mentioned on this page are Trademarks of their respective owners, which are in no way associated or affiliated with NUX Effects and Cherub Technology CO. LTD.

Bluetooth Indicator

When connecting a Bluetooth enabled mobile device to the MIGHTY LITE BT MKII’s Bluetooth audio, the BLUETOOTH indicator will turn on “Blue”.

(If not connected, the BLUETOOTH indicator will flash “Blue”.)

Operation: Launch the MightyAmp  APP on your mobile phone. Then press “Settings”, followed by “Current Amp” and select the “MIGHTY LITE BT MKII”. Next, “Click to Scan Devices”. The APP will find “MIGHTY LITE BT MKII”. Now select it, and the APP will connect with the device.

If you wish to disconnect the MIGHTY LITE BT MKII, just press and hold the PRESET button/indicator to disconnect. Then you can connect to MIGHTY LITE BT MKII manually.

Mightyamp  app connects with the device.

Operation: Launch the MightyAmp  APP on your mobile phone, and press “Settings” to choose “Current Amp” as “MIGHTY LITE BT MKII”, then “Click to Scan Devices”. The APP will find “MIGHTY LITE BT MKII”. Now select it, and the APP will connect with the device.

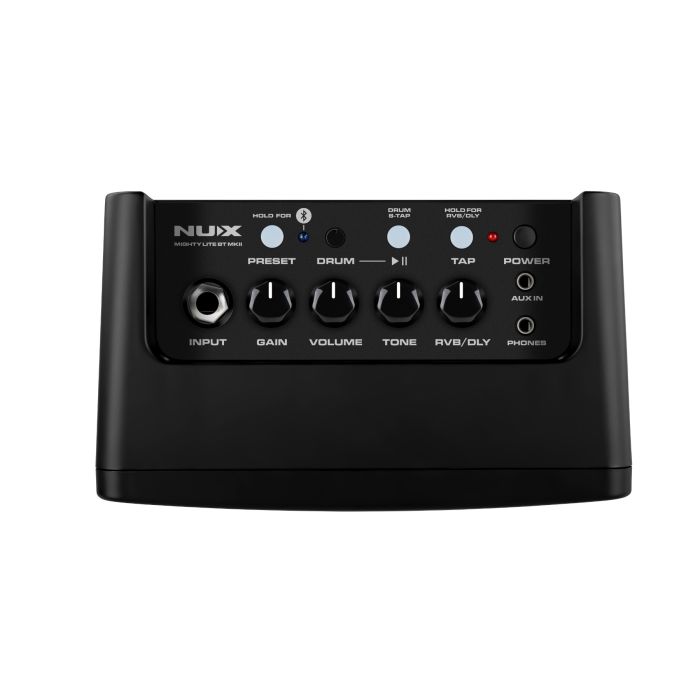

Preset Switch & Indicator

While the device is engaged, you can press the PRESET switch to change the preset from 1~7. The indicator will display colors related to specific presets. MightyAmp  APP example: Choose preset 1, 3, 5, 7 and press Active icon, then the device will know preset 1, 3, 5, 7 will be chosen while you press the PRESET switch.

Features

• 3 watts desktop Modeling Amplifier.
• TSAC-HD (White-Box) Amp Modeling algorithm offers realistic playability & feedback.
• 512 samples IR resolution. (34 premium built-in IRs and 20 user slots for 3rd party)
• 7 presets with ACTIVE functions. (PRESET switch toggles ACTIVE ones sequentially.)
• 7 effect blocks: GATE, EFX, AMP, IR, MOD, DLY, RVB.
• White-box algorithm EFX offers analog response and natural chaos.
• Patch Level function for each preset.
• Drum machine.
• Intuitive MightyAmp™ APP & Mighty Editor™ edit software(3rd party IR loader).
• USB-C: Mighty Editor™ edit software communication, USB audio stream, and Firmware update.

Specifications

• Input Impedance : 680KΩ
• AUX In Impedance : 13KΩ
• Earphone Output Impedance : 32Ω
• Sampling Rate : 48KHz/32-bit
• System Latency : 1.42ms
• Current Draw : 9VDC/Battery 120mA, USB 185mA
• Speaker : 3”, 4Ω, 5W
• Dimensions : 166 (L)X98 (W)X124 (H)mm
• Weight : 720g
