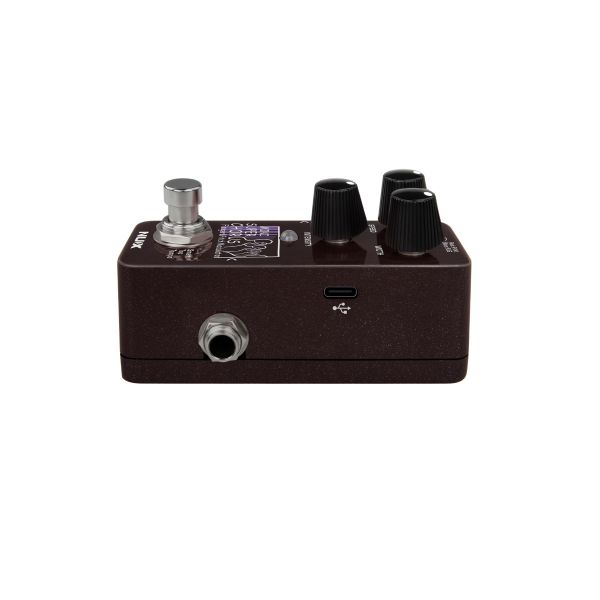

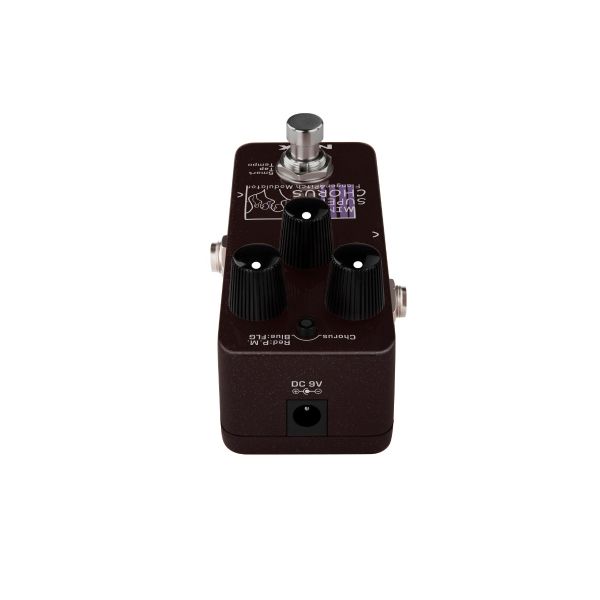

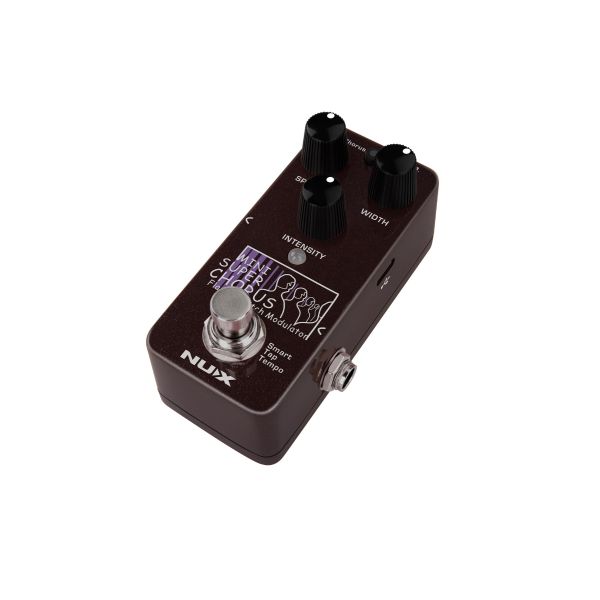

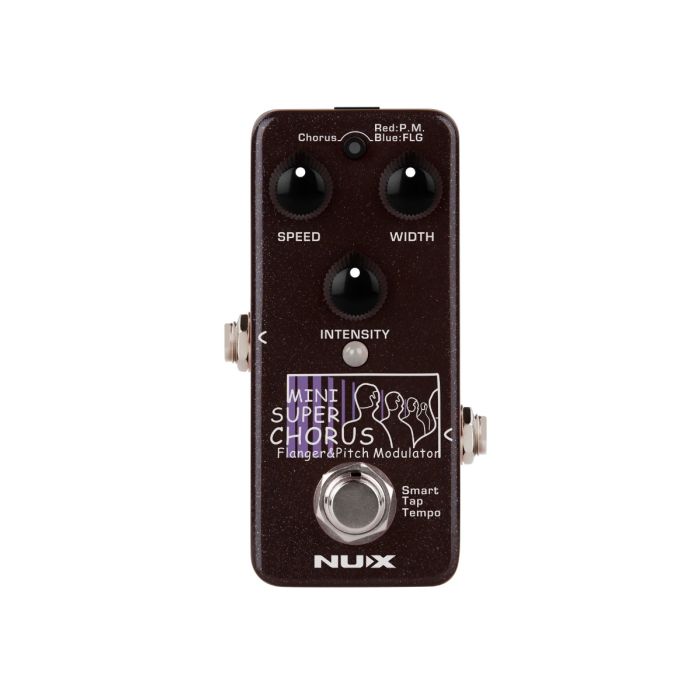

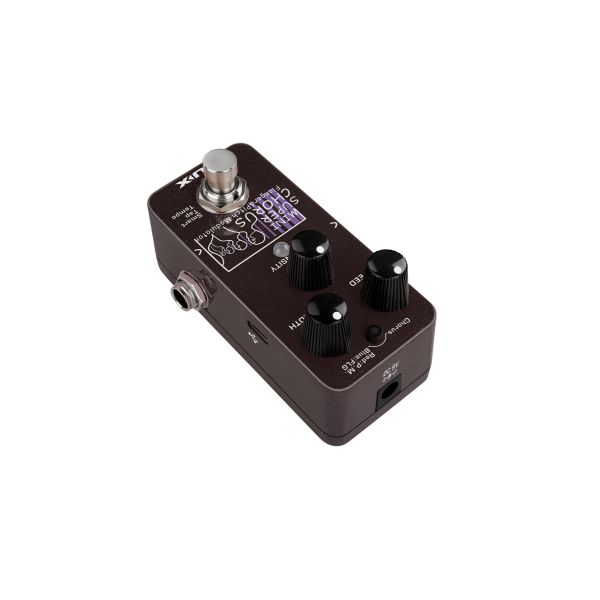

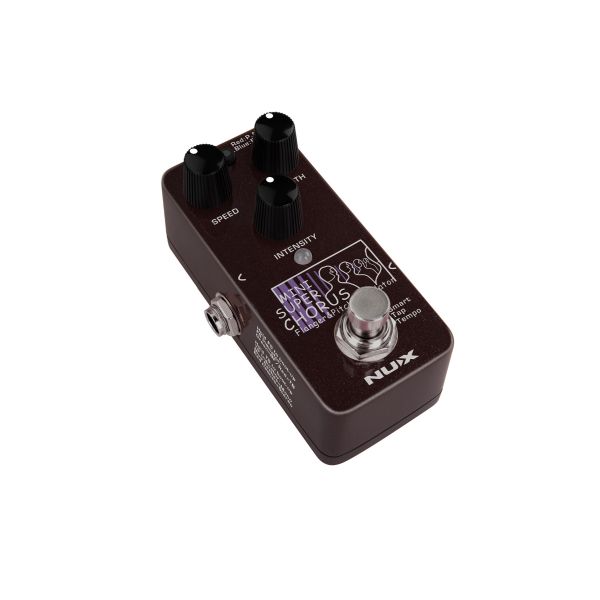

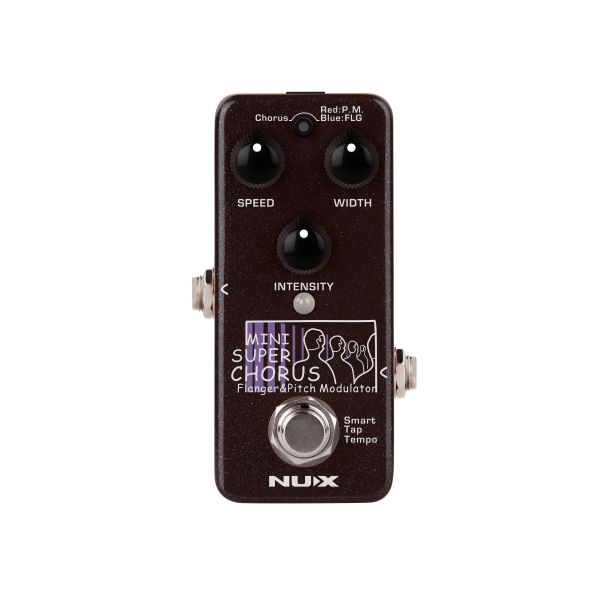

NUX Mini SCF SUPER CHORUS Flanger & Pitch Modulation Pedal

Chorus, Flanger, Pitch Modulation. These deliver the magic swirls, wobbling wonders and pure shimmering awesomeness of the SCF that we know and love, staying true – and paying tribute – to the original.

The mini SCF (SUPER CHORUS Flanger & Pitch Modulation) tributes to TC Electronic’s Stereo Chorus Flanger, one of the best modulation pedals ever made since 1976.

NUX's modern-tech DSP yields a perfect combination of both worlds: analog and digital. To achieve all of the objectives, our engineers had to develop an algorithm that mimics the principles of BBD chips - the key component of Analog Chorus effects. Quality-grade BBD chips in large mass have become incredibly rare, so this method is not practical for making an affordable analog chorus device.

Using DSP technology, NUX is able to offer a mini-pedal with a contrasting array of chorus tones. Besides that, mini SCF offers wider dynamic range, 9V DC power, smart tap tempo that innovates the origin and gives you more good vibes.

Chorus: A chorus is basically a pitch generator which mixes multiple delay signals. When the multiple delay signals are mixed with the original signal, a soft and wide sounding modulation effect is created.

P.M.: A combination of chorus and pitch vibrato which creates a “light” chorus sound.

FLG: A flanger is based on the same principle as a chorus, although here the signal can be regenerated (like adding feedback on a delay) creating a more distinctive sounding effect.

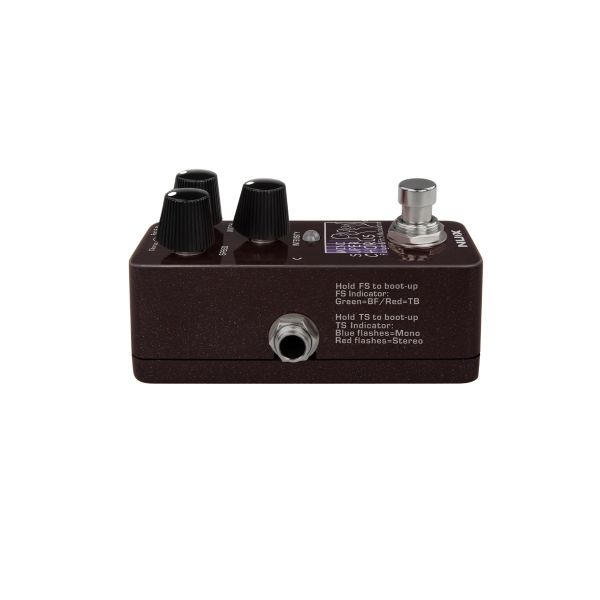

Mini SCF offers True-bypass and Buffer-bypass (Trails), just hold the footswitch to boot-up the pedal (do not connect USB). The footswitch indicator will show you the bypass status. (While you boot-up the pedal, if the FS indicator flashes “Green”=BF, “Red”=TB.)

Mini but mighty! It also supports Stereo input & output. (Use 1/4” TRS cable, and choose Stereo mode.)

*All of the brand and model names mentioned on this page are Trademarks of their respective owners, which are in no way associated or affiliated with NUX Effects and Cherub Technology CO. LTD.

• Tribute to the legendary modulation pedal~SCF.

• Chorus, P.M., FLG.

• mini enclosure.

•  Wide dynamic range: 103dB.

•

  Smart Tap Tempo.

•  True-bypass or Buffer-bypass.
• Supports Stereo.

• 9V/100mA

• Analog dry signal for low noise and zero latency.

• Input Impedance：1MΩ
• Output Impedance：10kΩ
• Dynamic Range: 103 dB
• DSP Processing: 48KHz / 32-bit
• A/D D/A Sampling Rate: 48KHz / 24-bit
• Power：9V DC(Negative tip, Optional ACD-008 adapter)
• Current Draw：less than 100mA
• Dimensions：94(L)X51(W)X53(H)mm
• Weight：175g
