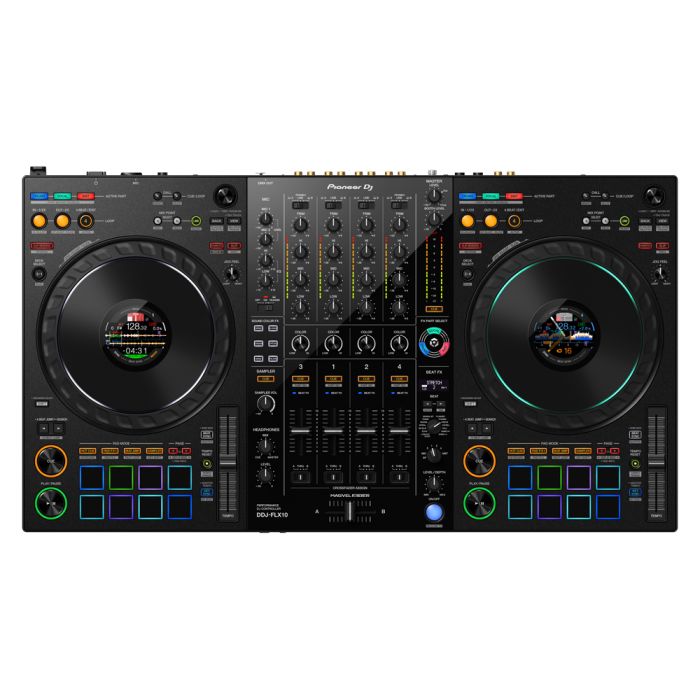

Pioneer DDJFLX10

KEY FEATURES
Track Separation for innovative performances, including live mash-ups
If you want to create unique live performances that aren’t possible with conventional DJ gear, the DDJ-FLX10 has
the answer. With its Track Separation technology, you can simply load the regular songs from your music library
and use the controller to create remixes and mash-ups on the fly by independently manipulating the 3 key parts of
the music: vocals, drums, and inst (other instruments including bass and synths). For example, you can play the
instruments and drums from one track while the vocal from the track on the other deck plays over the top. There
are dedicated color-coded buttons to control each part, so you’ll always have a clear visual grasp of what’s
playing.
• Active Part and Part Iso
Individually adjust the volume for the vocals, drums, or inst to mix in new ways. You can also choose to mute any
combination of the 3 parts to make live mash-ups with other tracks.
• FX Part Select
Choose which parts of a track you want to apply effects to, and create your own remix live. For example, you
could add echo to the vocals but leave the other parts alone.
• Part Instant Doubles
Isolate a specific part of the track (vocal, drums, or inst) and transfer it to another deck so you can scratch it.
Expanded On Jog Display
With the new On Jog Display, which is evolved from the DDJ-1000, you can customize the information you see on
the jogs so there’s no need to take your eyes off the decks. Choose from 4 modes as detailed below, some of
which show 3Band Waveforms (rekordbox only), the same as the CDJ-3000 flagship multi player. You can also
keep an eye on new Mix Point Link information, rekordbox vocal position analysis information, and Performance
Pad status.
• Deck Info mode – shows the information about the deck, including the Overall Waveform. (When using Serato
DJ Pro, this mode shows the virtual deck of Serato DJ Pro.)
• Waveform mode – shows the Zoomed Waveforms for 2 decks.
• Artwork display – shows the artwork for the track that’s playing.
• DJ Logo display – shows your own logo or favorite image on each deck after using the Image Transfer Tool
for PC/Mac.
New Mix Point Link for seamless transitions
Take advantage of a completely new playback concept in rekordbox that enables you to create slick musical
progression in your sets by linking mix points in tracks so the next song kicks in at the perfect moment. You might
set the next track to start from the beginning of its melody when the vocal of the current song ends, ensuring a
seamless transition without a sound clash. There’s no need to count down or press play manually, which also
leaves your hands free to create mash-ups or add effects.
DMX output for rekordbox Lighting function
Liven up your performances with lighting effects that match the mood of the tracks you play. It’s easy with the
rekordbox Lighting function and, thanks to the DMX output on the DDJ-FLX10, you don’t need any other
equipment such as an external DMX interface. Simply connect DMX-compatible lighting equipment to the
controller and use rekordbox to create custom lighting effects, or set the software to automatically adapt the color
and movement of the lights to progress with the music.
Evolved MAGVEL FADER 4-sensor system
Improved from the 2-sensor system on the DDJ-1000, the MAGVEL FADER on the DDJ-FLX10 uses a 4-sensor
system. This allows you to make the tiniest volume adjustments, no matter how small the movement of the
crossfader, enabling more musical performances.
rekordbox and Serato DJ Pro compatibility
The DDJ-FLX10 offers free plug-and-play compatibility with rekordbox and Serato DJ Pro, giving you hands-on
control of your favorite software application. DVS support is available for rekordbox via selected subscription
plans, and for Serato via a paid license/subscription to Serato DJ Expansions or Serato DJ Suite. To use the
controller with rekordbox, click here to install the PC/Mac version of the software. To use the controller with Serato
DJ Pro, click here.
ADDITIONAL EVOLVED FEATURES
Multicolored jog ring
You can use the first-ever multicolored jog ring on a Pioneer DJ controller to indicate the different parts of the
track that are playing when you’re using the Track Separation features, or you can customize the colors to your
preferred look.
Iconic, intuitive design
The new Track Separation features on the DDJ-FLX10 are reflected in the layout of their controls – which make a
circle from 3 different color-coded LEDs – as well as the unit’s overall design, which looks like 3 layers
overlapping each other.
USB Type-C terminal
Connect your PC/Mac directly to the controller’s USB Type-C terminal with a single cable.

DDJ-FLX10 specifications
Software
rekordbox
Serato DJ Pro
Frequency response 20 Hz – 20 kHz
S/N ratio
110 dB (USB)
94 dB (LINE)
83 dB (PHONO)
81 dB (MIC)
Total harmonic distortion
0.002% dB (USB)
0.007% (LINE)
0.025% (PHONO)
Input/Output terminals
Inputs
LINE x 2 (RCA x 2)
LINE / PHONO x 2 (RCA x 2)
MIC x 2 (XLR & 1/4" TRS jack x 1, 1/4" TRS jack x 1)
Outputs
MASTER x 2 (XLR x 1, RCA x 1)
BOOTH x 1 (1/4″ TRS jack x 1)
PHONES x 2 (1/4" stereo jack x 1, 3.5 mm stereo mini jack x 1)
USB USB Type-C x 2
Others DMX OUT (3P XLR) x 1
Power supply AC adapter (DC 12 V)
Power consumption 1800 mA
Maximum dimensions (W ｘ D ｘ H) 716 x 400.3 x 73.4 mm / 28.2” x 15.8” x 2.9”
Weight 6.7 kg / 14.8 lb
Accessories
Power cord
AC adapter
USB Type-C cable
Serato voucher（Pitch 'n Time DJ）
Quick Start Guide
Precautions for use
Warranty (selected regions only
