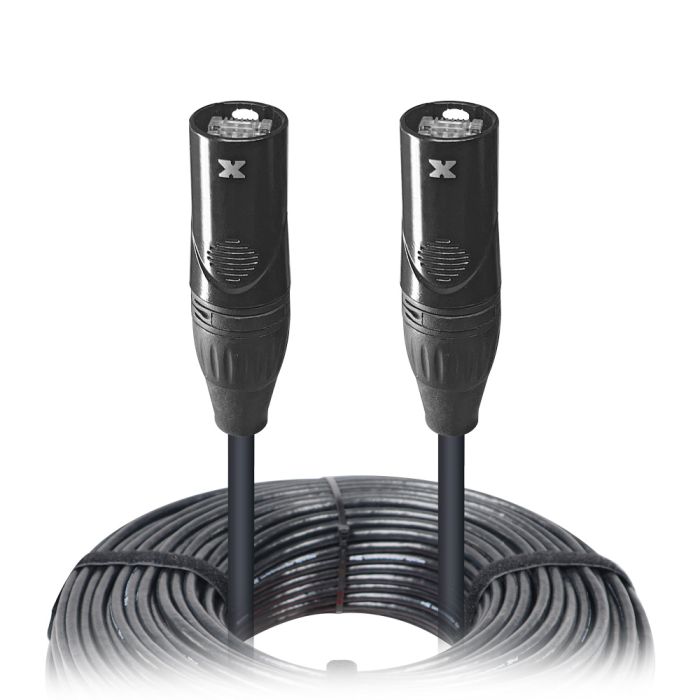

Prox PRXCCAT6300 ProX 300 Ft STP Cat 6 Cable W-RJ45 for Network and Snake Box Connections

ProX XC-CAT6-300 is a Shielded Twisted Pair (STP) Category 6  cable for touring sound and permanent installations, Audio/Video stage technology, and DMX systems, Digital Snake For Stagebox or Data Link Cable.

ProX cables are built with uncompromised quality with excellent performance at each connection - Instrument cables, Speaker cables, RCA cables, DMX cables, Power cables and more. Our cables are made for professionals, by professionals.

Category 6 Cable, commonly referred to as Cat 6, is a standardized twisted pair cable for Ethernet and other network physical layers that is backward compatible with the Category 5/5e and Category 3 cable standards.

Compared with Cat 5 and Cat 5e, Cat 6 features more stringent specifications for crosstalk and system noise. The cable standard also specifies a performance of up to 250 MHz compared to 100 MHz for Cat 5 and Cat 5e.[1]

Category 6 cable has a maximum length of 180 feet (55 meters) when used for 10GBASE-T.

Save time and money making custom Ethernet cables by using fixed-length STP Cat6 Ethernet Network Cables from ProX.  Also available in 3 ft., 5 ft., 10ft., 25 ft., 50 ft., 75 ft., 100 ft., 150 ft., 200 ft., & 300 ft.  CAT6 shielded ethernet / Crossover Cable With ProX RJ45 Male Cable Connector.

• Shielded Twisted Pair (STP) Category 6 Ethernet cable
• 550MHz bandwidth
• Genuine ProX XC-RJ45M connectors
• 19 x 0.12 Copper OFC Copper Inner Conductor
• 6 x 16 x 0.12 braided TC shielded system to reduce noise, protect the pure signal transfer and EMI protection
• Aluminum foil shielding for protection against external signal interferences with an overall braided/woven screen
• Compact cable diameter to decrease eddy currents
• Complete Coil™ technology demands consistent wave tolerances to create precise accuracy and detailed clarity.
• Cotton & PP Cross shielding
• Thermoplastic polyolefin insulation no lead jacket
• Outer Diameter (O.D.): 1/4+ In - 6.8mm
• Capacitance:  46 pF/ft.
• Bending Radius: 1" MINIMUM
• Pulling Tension: 25 ft-lb (110 N) MAXIMUM
• IP65 - Dust and waterproof in mated condition
• Individually tested for performance and quality
• Complies with CAT6 specifications according to TIA / EIA 568B, ISO / IEC 11801, EN 50173

ProX Ethernet Cables are made of 100% pure copper wire, as opposed to copper clad aluminum (CCA) wire, and are therefore fully compliant with UL Code 444 and National Electrical Code TIA-568-C.2 fire and safety standards, which require pure bare copper wire in communications cables.
