Prox PRXCDMX5P1000FT 1000 Ft. High Performance DMX Male 5-Pin Bulk Spool Cable

ProX XC-DMX5P1000FT 1000 Ft. High Performance DMX Male 5-Pin Bulk Spool Cable. ProX Live Performance Gear Cables are made to last you an entire lifetime. Each cable is made with high-quality materials and delivers a clear signal and connection each time. These cables are made by professionals for professionals like you. Each cable is built for High Performance and to withstand heavy everyday use.

Cable Type: DMX Spool Cable
Connector 1:  N/A
Connector 2: N/A
Specification: Balanced

The Build
Our cables are plated with gold and silver connectors for superior signal transfer. 12 AWG – Tin Copper Conductors (TCC) which provide an optimum signal transfer.

Quality Control
We test every single cable to make sure each one performs to the best of its ability, which includes high performance and flexibility that can handle heavy everyday use. These cables are specifically designed to provide many years of crystal-clear sound and durability.



Technical Specifications

_{Polyethylene insulation

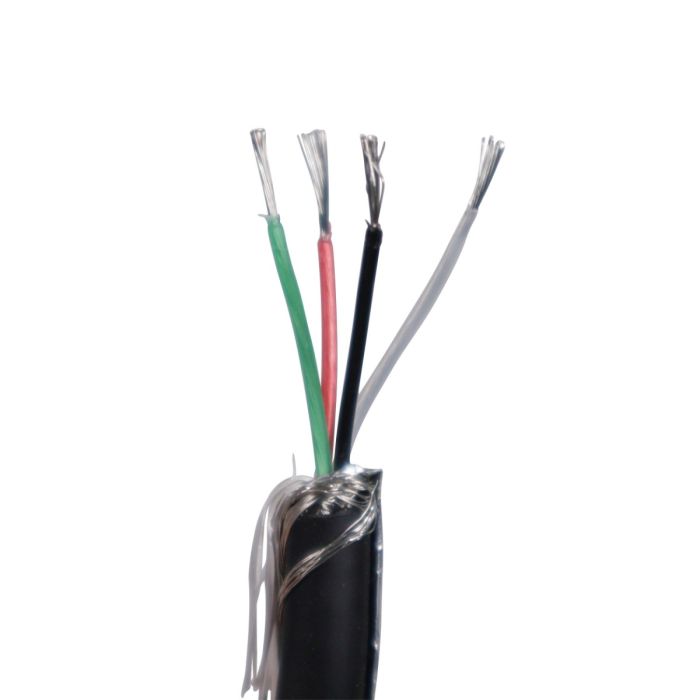

Twisted Quad Data Cable
Polyethylene inner jacket
Duofoil® (100% coverage)t
Cotton plus a tinned copper braid shield (85% coverage)
PVC jacket for durability
Nominal Characteristic Impedance: 110 Ohms
Nominal Capacitance Conductor to Conductor @ 1KHz: 12.8 pF/ft
Nominal Cap Cond. To Other Cond. & Shield @ 1KH z: 23 pF/ft
Nominal Velocity of Propagation: 66%
Nominal Delay: 1.6 Nanoseconds per foot
Nominal Conductor DC Resistance @ 20 degrees C: 24 Ohms/1000 ft
Nominal Outer Shield DC Resistance @ 20 degrees C: 3.4 Ohms/ 1000 ft
Nominal Attenuation (dB/100 ft): 0.6 (@ 1 MH z) dB/100 ft
Maximum Recommended Current: 2.1 Amps per conductor @ 25 degrees C
Operating Temperature Range: (-30 degrees C To + 75 degrees C)}

• 22 AW TC-Tinned Copper Conductor
• ​Flexible PVC Jacket
• Limited Lifetime Warranty

Cable Spool Only - Connectors Not Included
