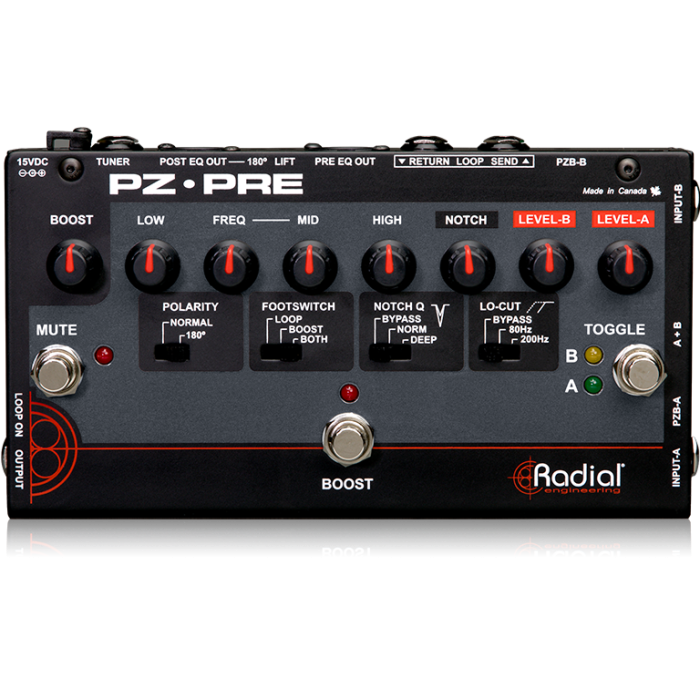

Radial PZ-Pre Acoustic Preamp
Acoustic Instrument Preamp
The PZ-Pre is a powerful acoustic instrument preamplifier with a powerful EQ and feedback control section and loads of connectivity options giving you complete control over your rig.
The Radial PZ-Pre™ is a powerful acoustic instrument preamplifier. The magic lies in the combination of high performance 100% discrete class-A PZB piezo boosters, an ultra-quiet preamp circuit that will adapt to any pickup system and a host of connectivity options that will put you in total control. The PZ-Pre is equipped with two inputs for quick instrument changes on stage, or, for blending two pickups together. Powerful semi-parametric EQ and feedback eliminating controls allow the user to fine-tune their sound while eliminating troublesome frequencies. Offering both pre and post EQ direct box outputs, the PZ-Pre can be used send a dry signal to the house and performer tailored sound to monitors.
The Radial PZ-Pre is a high performance preamp designed specifically for acoustic instruments and pickups of all sorts. A proprietary response curve has been developed that works in conjunction with the passive-interactive tone controls and piezo optimized front end to produce a warm yet detailed sonic signature. Exceptionally low noise and distortion differentiate the PZ-Pre from others producing a natural tone that will flatter most instruments of all types.
Specifications
Audio circuit type: Proprietary active circuit
Number of channels: Dual Input, Amp Out, Pre and Post EQ XLR balanced Out
Input Impedance: 6.8k Ohm at input jack (PZB active 10meg Ohm)
Output Impedance: 1k Ohm
Features
180° polarity reverse, Ground lift, Effects Loop, EQ Control, Boost
Input Connectors: 1/4"
Output Connectors: Pre and Post EQ XLR
Extras: 1/4" Effects Loop, Tuner
General
Construction: 14-gauge steel
Size (L x W x D): 8"w x 4 ¼"d x 2"h (205 x 110 x 51mm)
Weight: 2.7lbs (1.2kg)
Power: 15VDC 400mA, center pole positive
Conditions: For use in dry locations only between 5°C and 40°C
Warranty: Radial 3-year, transferable
| UPC | 676101037902 |
|---|
