EarthQuaker Devices

Rainbow Machine — Polyphonic Pitch Mesmerizer

Name: EarthQuaker Devices Rainbow Machine — Polyphonic Pitch Mesmerizer
Brand: EarthQuaker Devices
SKU: EQDRAINV2
Price: 249 USD
Availability: InStock

Item #: EQDRAINV2

Audio Demo

Video Demos

A commanding, modern pitch-warping engine crafted for players who want bold harmonies, chorus textures, and controllable chaos. Rainbow Machine builds complex, polyphonic layers in real time, then drives them into regenerative feedback for rising or falling trails, metallic flutters, and performance-ready mayhem. Twice the output of the original with extended delay time, deeper chorus, silent switching on both footswitches, and more Magic.

Key Features

Polyphonic DSP pitch engine with real-time harmony
Pitch control spans a fourth down to a third up
Primary, Secondary, and Choir stacking for complex harmonies
Magic regeneration for oscillation, pads, and trails
Tracking and Tone shape articulation and presence
Expression pedal assignable to Pitch
Silent Flexi-Switch bypass and Magic footswitch
Compact, tour-proven design

Specifications

Engine

Polyphonic DSP pitch warping

Pitch Range

Fourth below to third above; noon = unison

Core Controls

Pitch, Primary, Secondary, Tracking, Tone

Magic

Regeneration/aliasing for evolving trails

Chorus

At unison pitch with Tracking delay

Expression

Pitch assignable

Footswitches

Activate & Magic, Flexi-Switch

Output

Louder than original; extended delay

Bypass

Relay-based true bypass

Dimensions

4.65 × 3.65 × 2.25 in (118 × 93 × 57 mm)

Current Draw

68 mA

Input / Output Z

Input: 1 MΩ / Output: <1 kΩ

Power

9V DC center-negative

Product Gallery

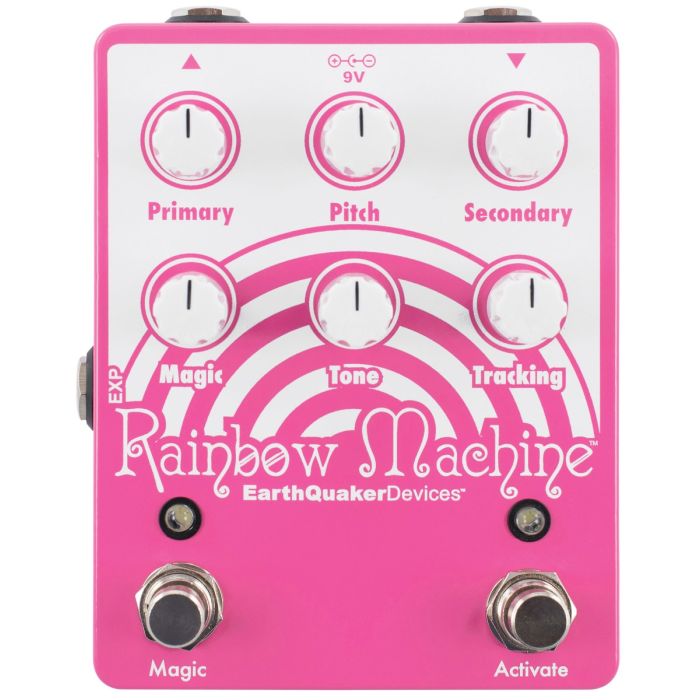

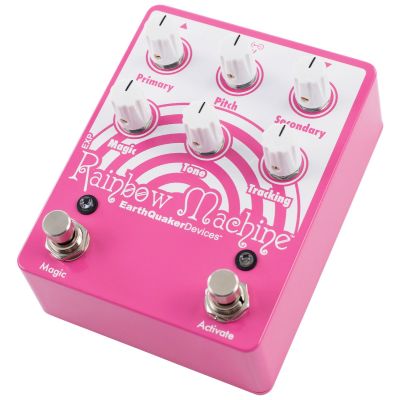

EarthQuaker Devices Rainbow Machine front view
