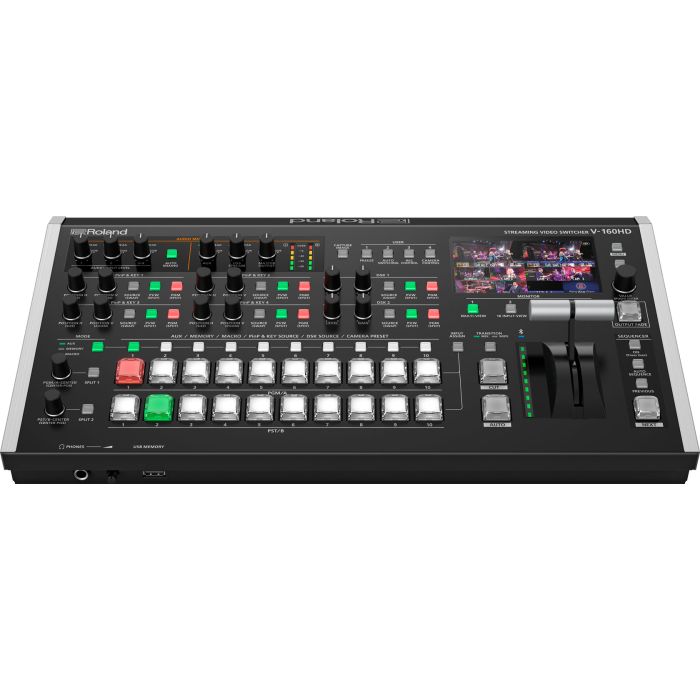

Roland V-160HD Hybrid Event Switcher - 16-Input SDI/HDMI Video Switcher

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Be the first to review this product

Roland V-160HD Hybrid Event Switcher - 16-Input SDI/HDMI Video Switcher

SKU

ROV160HD

$5,349.00

In stock

The V‑160HD sets a new benchmark for hybrid event switching, combining a powerful 16‑input video switcher with a professional audio mixer and advanced automation. With eight SDI and eight HDMI inputs, you can connect a wide range of cameras and computers, while seven configurable outputs provide program, sub‑program, preview and multiple auxiliary feeds. The eight‑layer effects engine includes a 16‑slot still store, macros and sequenced cues to handle complex productions with ease.

View Pickup Points

Pickup is available in 1 stores

iHomiLA

821 S Los Angeles St, Los Angeles, 90014

United States

Pickup available

1 pcs

In stock

Size Guilde Delivery & Return

Roland

V-160HD Hybrid Event Switcher

Item #: V-160HD | UPC: TBD

The Roland V-160HD Hybrid Event Switcher is a professional all-in-one video and audio production hub designed for live events, hybrid conferences, and streaming applications. Combining eight HDMI inputs and eight SDI inputs, it supports simultaneous multi-format workflows with flexible scaling and routing for both in-room screens and online viewers. Its advanced eight-layer video effects engine delivers powerful picture-in-picture, keying, logo overlays, and transitions for broadcast-quality production. Integrated USB 3.0 streaming output lets you connect directly to computer platforms like Zoom, Microsoft Teams, and YouTube Live without additional hardware. Onboard audio mixing, with 40 channels and high-quality DSP, ensures polished sound control for multiple microphones, media sources, and embedded audio. The intuitive hardware interface, motorized faders, and touchscreen control provide fast operation, while remote control options via LAN or the free V-160HD RCS software enhance flexibility in any environment.

The V-160HD bridges in-person and online production with multi-format flexibility, real-time streaming, and broadcast-grade creative tools—all in a single desktop unit.

Key Features

16 total video inputs: 8 HDMI + 8 SDI with flexible crosspoint routing
Eight-layer video effects engine with PiP, keys, transitions, and logos
Native USB 3.0 output for direct streaming at 1080p/60
Integrated 40-channel digital audio mixer with high-quality DSP
Motorized faders, color touchscreen, and direct hardware buttons for fast control
Remote operation via LAN and V-160HD RCS software
Supports simultaneous live, hybrid, and online production

Specifications

Video Inputs

8× HDMI, 8× SDI (auto-scaling on selected inputs)

Video Outputs

2× HDMI, 2× SDI, 1× USB 3.0 stream output

Resolution Support

Up to 1080p/60

Audio Mixer

40-channel digital audio mixer with EQ and effects

Video Effects

8-layer composition: PiP, DSK, chroma/luma keys, transitions, logos

Streaming Output

USB 3.0 (UVC/UAC) for plug-and-play live streaming

Control Interfaces

LAN, USB, RS-232, iPad/PC software control

Display

Color LCD touchscreen with real-time monitoring

Dimensions (W×D×H)

15.3″ × 9.8″ × 3.4″ (approx.)

Weight

≈ 6.2 lbs (2.8 kg)

Related Keywords: Roland V-160HD, hybrid switcher, event switcher, SDI HDMI switcher, live production, streaming mixer, broadcast switcher, USB streaming, Roland Pro A/V, hybrid event
