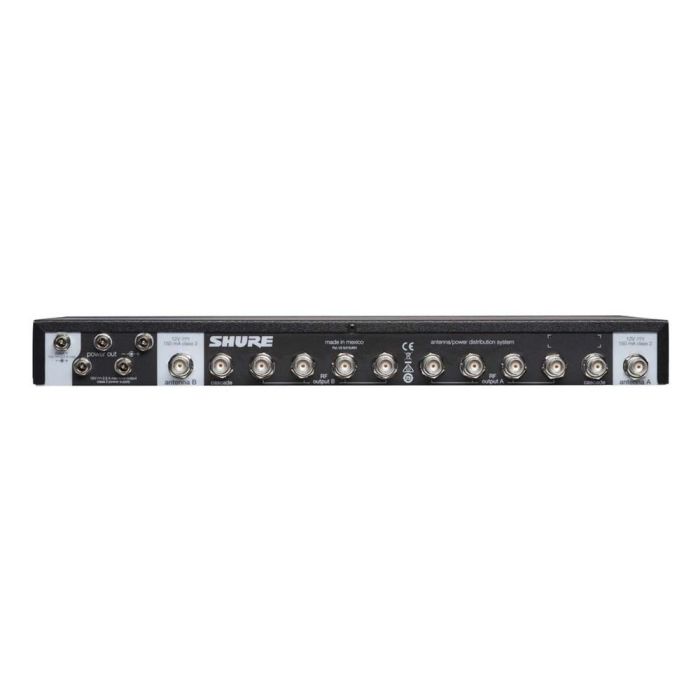

SHURE UA844+V Antenna Distribution System

The Shure Model UA844+V is an antenna distribution system that allows for the expansion of wireless microphone systems by splitting one pair of antennas to multiple receivers. It also amplifies RF signals to compensate for insertion loss that results from splitting signal power to multiple outputs. A single UA844+V system can support up to five wireless receivers. A maximum of five UA844+V systems may be used in a two-tiered configuration.

It is recommended for use with VHF options of ULX-D® Digital and QLX-D® Digital Wireless Systems.

The UA844+V/LC option comes with four push-on DC cables with no antenna cables. To connect the receiver antenna ports to the UA844+V/LC, use the BNC-BNC antenna cables supplied with each of the ULX-D and QLX-D wireless systems.

Features

• Five-way RF signal output
• Supports VHF QLX-D and ULX-D receivers
• Front-mounting antenna hardware
• Rack-mounting hardware
• 4 DC power feeds and for receivers (15V, 2.5A max)
• DC outputs for antenna bias (12V, 300mA max)

UA844+V models include:

• 1 UA844+ Antenna/Power Distribution System
• 1 PS45 power supply
• Two 6 ft. BNC cables
• 2 Bulkhead adapters
• 1 Rack mount Hardware kit
• 1 Literature Package
• 4 Locking DC power cables for ULXD4
• 4 Non-locking DC power cables for QLXD4
• Ten 22 in. BNC cables

UA844+V/LC (less cable) models include:

• 1 UA844+ Antenna/Power Distribution System
• 1 PS45 power supply
• Two 6 ft. BNC cables
• 2 Bulkhead adapters
• 1 Rack mount Hardware kit
• 1 Literature Package
• 4 Non-locking DC power cables for QLXD4
• Two 22 in. BNC cable
