Yamaha EAD10 Electronic Acoustic Drum Module - Stereo Mic & Trigger System
Item #: YAEAD10 | UPC:
The Yamaha EAD10 instantly transforms any acoustic drum kit into a hybrid percussion powerhouse. Its sensor unit mounts on your bass drum to capture a high-quality stereo image of your entire kit and trigger additional sounds from the built-in AWM2 engine. With 757 voices, 50 preset scenes and deep effects, you can layer samples, add reverb or completely reshape your sound. The EAD10?€?s recorder, USB audio/MIDI interface and Rec?€?n?€?Share app make it simple to practice, record and share performances, while its compact design and comprehensive connectivity fit seamlessly into any setup.
Key Features

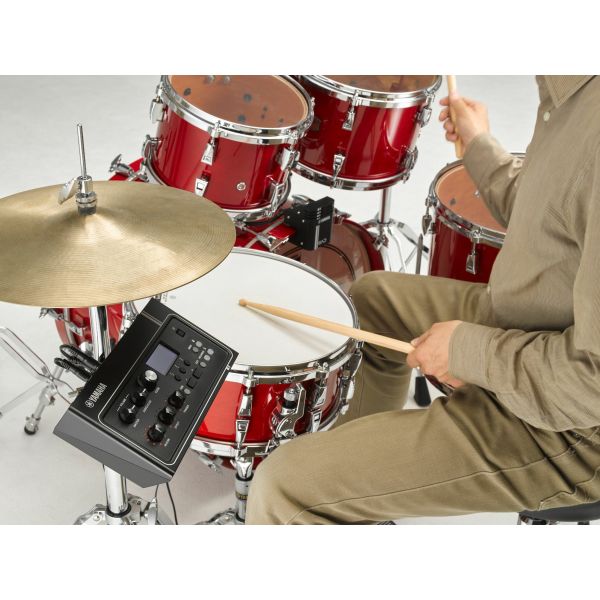

- Sensor unit mounts on the bass drum and captures a stereo image of the entire acoustic kit in seconds.
- High-quality AWM2 tone generator offers 757 voices and 50 preset scenes plus 200 user scenes.
- Built-in reverb and effects (21 mic effects, 10 trigger effects) transform your drum sound instantly.
- 64-note polyphony and 32 MB wave memory allow you to trigger samples and load custom WAV files.
- Integrated recorder with internal memory and USB flash drive support lets you record and play back performances (up to 90 minutes per file).
- Connectors for headphones, AUX IN, USB audio/MIDI, line outputs and additional triggers/pads expand the module?€?s versatility.
- Rec?€?n?€?Share app enables easy recording and sharing of drum performances via smart device.
Specifications
Main Unit Dimensions
260 ?? 63 ?? 138 mm
Sensor Unit Dimensions
76 ?? 88 ?? 78 mm
Weight
654 g (main unit), 464 g (sensor unit)
Tone Generator
AWM2
Polyphony
64 voices
Voices
757
Scenes
50 preset, 200 user
Reverb Types
11
Mic Effects
21; Trigger Effects: 10
Recording Capacity
Internal memory ~1.5 min; USB flash drive up to 90 min/file
Wave Memory
32 MB; Max Sample Size 1.75 MB mono, 3.5 MB stereo
Tempo Range
30-300 BPM with tap tempo
Connectors
DC IN 12 V, PHONES, AUX IN, OUTPUT L/MONO & R, USB TO DEVICE, USB TO HOST, trigger inputs, foot switch
Microphone
Two high SPL mics; Trigger: Exclusive bass drum trigger
Included Accessories
Owner?€?s manual, PA-150 power adapter, module holder, wing bolts, connector cables, cable bands, adhesive cushions
