  • Yamaha Powered Speaker, 1000W, 12" LF,1.75" HF Compression Driver
Be the first to review this product

Yamaha Powered Speaker, 1000W, 12" LF,1.75" HF Compression Driver

SKU
DHR12M
$819.99
In stock
View Pickup Points
Pickup is available in 1 stores

iHomiLA

821 S Los Angeles St, Los Angeles, 90014

United States

Pickup available

8 pcs
In stock
Size Guilde Delivery & Return
Yamaha

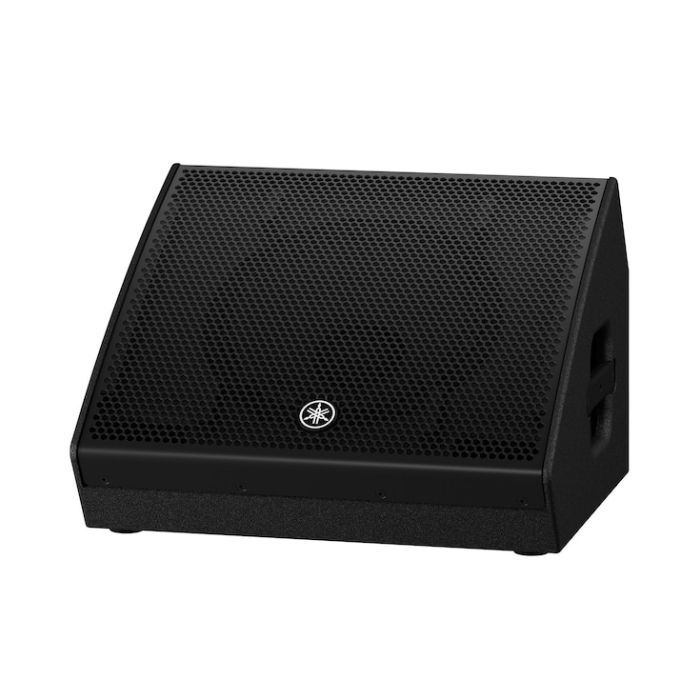

DHR12M 12" 2-Way Powered Coaxial Floor Monitor, 1000W

Item #: DHR12M | UPC: N/A
Built for modern stages, Yamaha’s DHR12M delivers clean, high-impact monitoring in a compact wedge. A 12" LF driver and 1.75" HF compression driver share a coaxial axis for precise phase alignment, so vocals sit forward and instruments translate with natural detail across the stage. The 1,000W Class-D bi-amp module supplies ample headroom, reaching up to 129 dB SPL with a full-range 52 Hz–20 kHz response. Plywood construction with durable polyurea coating resists the rigors of touring, while the 57° monitor angle focuses output where performers need it. Onboard DSP includes FIR-X tuning, selectable HPF, and D-CONTOUR “MONITOR” voicing for fast, musical results with or without a sub. Combo inputs, mix/through routing, and a side pole socket add flexibility for floor wedge or side-fill duties. Musicians, rental houses, and venues will value the DHR12M for its clarity, projection, and reliability on any gig. :contentReference[oaicite:0]{index=0}
Part of Yamaha’s DHR series, the DHR12M pairs stage-ready power with thoughtful ergonomics: 24-bit/48 kHz processing, fan-cooled amplification, and FIR-based crossover ensure consistent, low-distortion monitoring show after show. :contentReference[oaicite:1]{index=1}

Key Features

  • Coaxial 12" LF + 1.75" HF design for coherent, focused stage sound. :contentReference[oaicite:2]{index=2}
  • 1,000W Class-D bi-amp power with FIR-X tuning and D-CONTOUR “MONITOR.” :contentReference[oaicite:3]{index=3}
  • 52 Hz–20 kHz frequency range and up to 129 dB peak SPL for strong headroom. :contentReference[oaicite:4]{index=4}
  • Road-worthy plywood cabinet with polyurea finish; 57° monitor angle. :contentReference[oaicite:5]{index=5}
  • Flexible I/O: dual combo inputs, RCA, and XLR mix/through output. :contentReference[oaicite:6]{index=6}

Specifications

Speaker Type
2-way, bi-amped, bass-reflex powered floor monitor. :contentReference[oaicite:7]{index=7}
Amplifier Power
Peak 1,000W (LF 800W / HF 200W); Continuous 465W. :contentReference[oaicite:8]{index=8}
Drivers
LF 12" cone, 2.5" VC; HF 1.75" diaphragm, 1" throat (coaxial). :contentReference[oaicite:9]{index=9}
Frequency Range (-10 dB)
52 Hz – 20 kHz. :contentReference[oaicite:10]{index=10}
Maximum SPL
129 dB peak @ 1 m (IEC noise). :contentReference[oaicite:11]{index=11}
Coverage
H90° × V90°. :contentReference[oaicite:12]{index=12}
Crossover
1.8 kHz FIR-X tuning (linear-phase FIR). :contentReference[oaicite:13]{index=13}
DSP / Voicing
HPF Off/100/120 Hz (24 dB/Oct); D-CONTOUR: FOH/MAIN, MONITOR, Off. :contentReference[oaicite:14]{index=14}

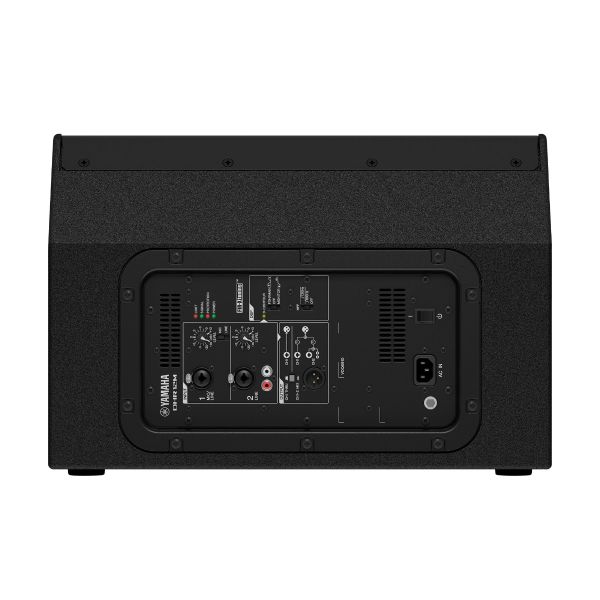

I/O
INPUT1: Combo x1; INPUT2: Combo x1 + RCA (x2); OUTPUT: XLR thru or mix. :contentReference[oaicite:15]{index=15}
Cabinet
Plywood, polyurea finish; side handle; side pole socket (Ø35 mm). :contentReference[oaicite:16]{index=16}
Monitor Angle
57°. :contentReference[oaicite:17]{index=17}
Dimensions (W × H × D)
500 × 343 × 454 mm (19.7" × 13.5" × 17.9"). :contentReference[oaicite:18]{index=18}
Net Weight
16.5 kg (36.4 lb). :contentReference[oaicite:19]{index=19}
More Information
Drop Shipping No
UPC 889025130097
Stock Last 8
