  • Yamaha DXS12MKII Powered Subwoofer, 1020W, 12" Driver
Be the first to review this product

Yamaha DXS12MKII Powered Subwoofer, 1020W, 12" Driver

SKU
YADXS12MKII
$969.99
In stock
DXS Series were made for audio engineers and bass fanatics who demand consistent high-quality sound for their live performances or DJ events— even when it's cranked to the maximum SPL.
View Pickup Points
Pickup is available in 1 stores

iHomiLA

821 S Los Angeles St, Los Angeles, 90014

United States

Pickup available

1 pcs
In stock
Size Guilde Delivery & Return
Yamaha

Yamaha Powered Subwoofer, 1020W, 12" Driver

Item #: YADXS12MKII
The Yamaha DXS12mkII is a compact, tour-ready powered subwoofer that delivers tight, musical low end for modern PA systems. A band-pass enclosure and a custom 12" driver are powered by a 1020W Class-D amplifier (800W continuous) to produce up to 134dB SPL with fast transient response from 42–150Hz. Yamaha’s D-XSUB processing offers Normal, Boost, and Xtended LF voicings so you can tailor punch, depth, or extension to the room and program material. Natural-convection cooling keeps the system quiet and reliable in installed or portable rigs. With dual pole sockets (35mm and M20), rugged Meranti plywood construction, and a durable polyurea finish, DXS12mkII integrates cleanly beneath full-range tops while standing up to the demands of daily use by bands, DJs, and rental providers.
DXS Series subwoofers combine high-efficiency Class-D power, smart DSP, and robust wooden enclosures to deliver controlled, high-impact bass for professional sound reinforcement.

Key Features

  • 12" powered subwoofer in band-pass cabinet for focused, punchy bass
  • Up to 134dB SPL with 42–150Hz low-frequency extension
  • 1020W dynamic / 800W continuous Class-D amplification
  • D-XSUB processing: Normal, Boost, Xtended LF
  • Natural-convection cooling for silent operation
  • Dual pole mounts: 35mm (deep) and M20 threaded
  • Meranti plywood cabinet with durable polyurea coating

Specifications

Type
12" Powered Subwoofer, Band-pass
Frequency Range
42 Hz – 150 Hz
Driver
12" cone, 2.5" voice coil
Amplifier Power
Dynamic 1020 W / Continuous 800 W
Maximum SPL
134 dB
Inputs / Thru
2 × XLR-3-31 inputs; 2 × XLR-3-32 thru (parallel)
Processing
D-XSUB: BOOST, XTD LF, NORMAL
Cooling
Natural convection
AC Power
100–240 V, 50/60 Hz
Power Consumption
100 W
Pole Sockets
35 mm (depth 80 mm) & M20 (thread depth 25 mm)
Dimensions (W × H × D)
400 × 567 × 570 mm (15.75" × 22.32" × 22.44")
Weight
30.0 kg (66.1 lb)
Cabinet
Meranti Plywood, Durable Polyurea Coating, Black

Product Gallery

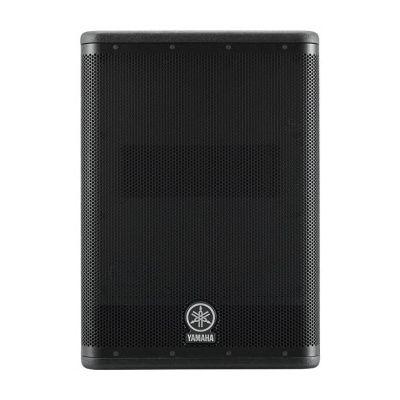

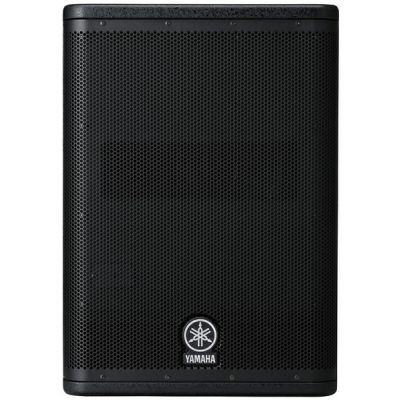

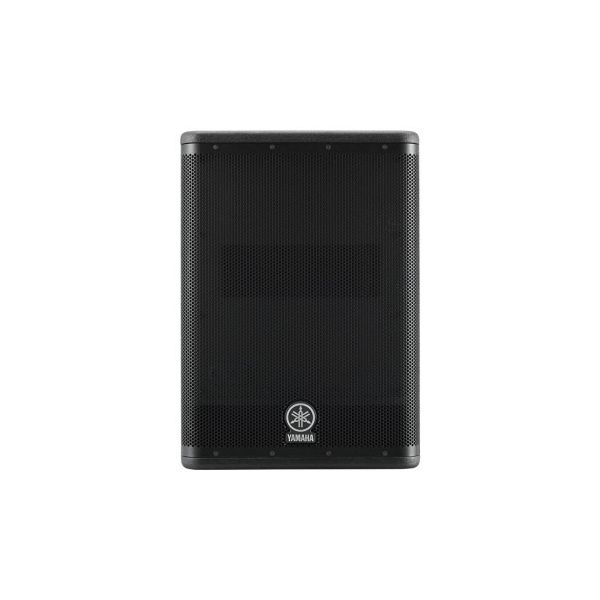

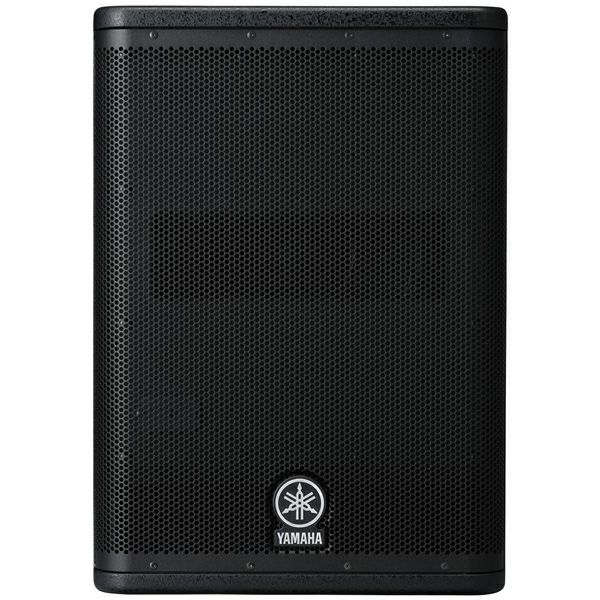

Yamaha DXS12mkII front view

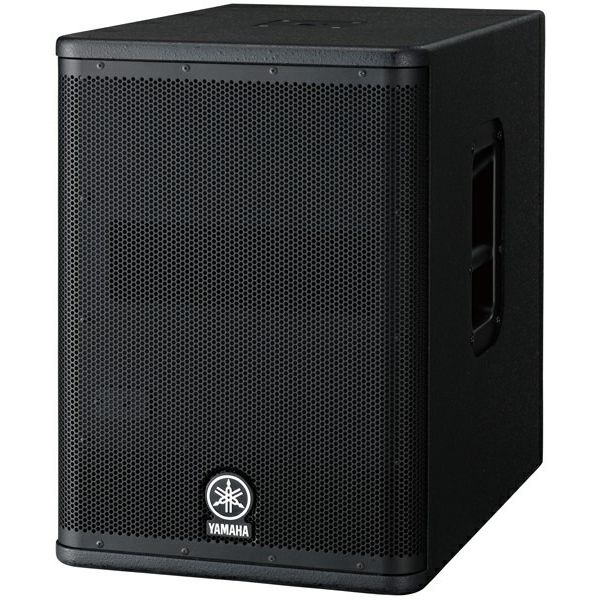

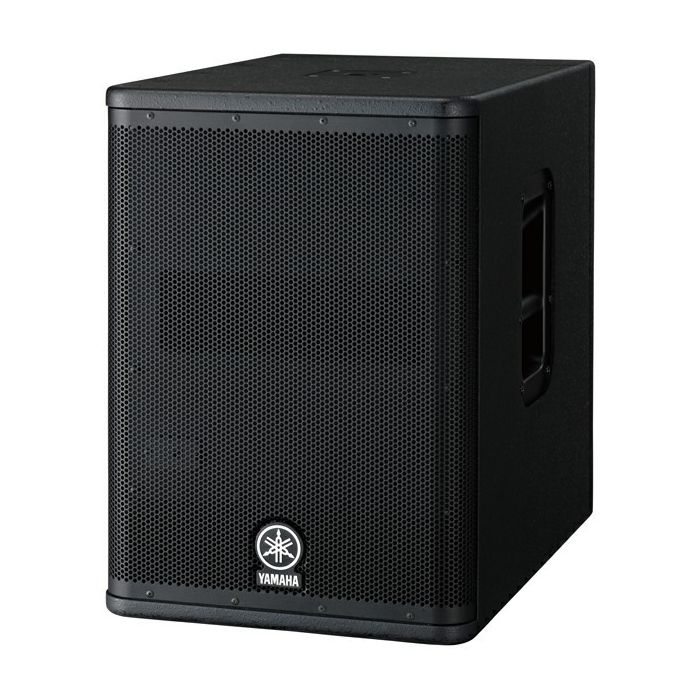

Yamaha DXS12mkII angled view

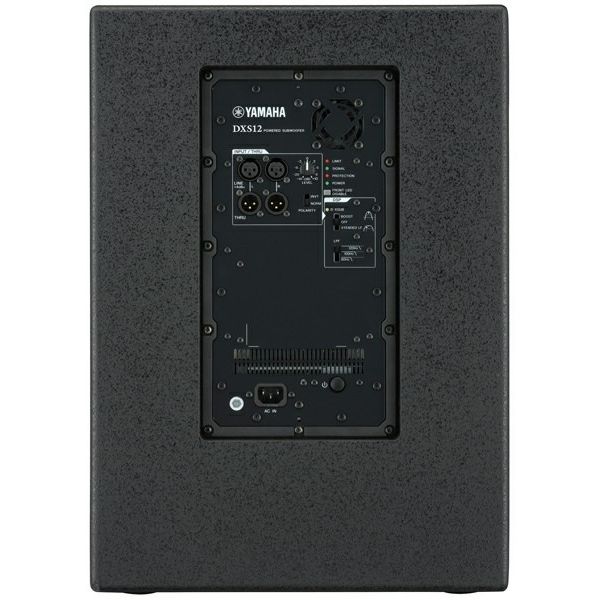

Yamaha DXS12mkII rear panel
