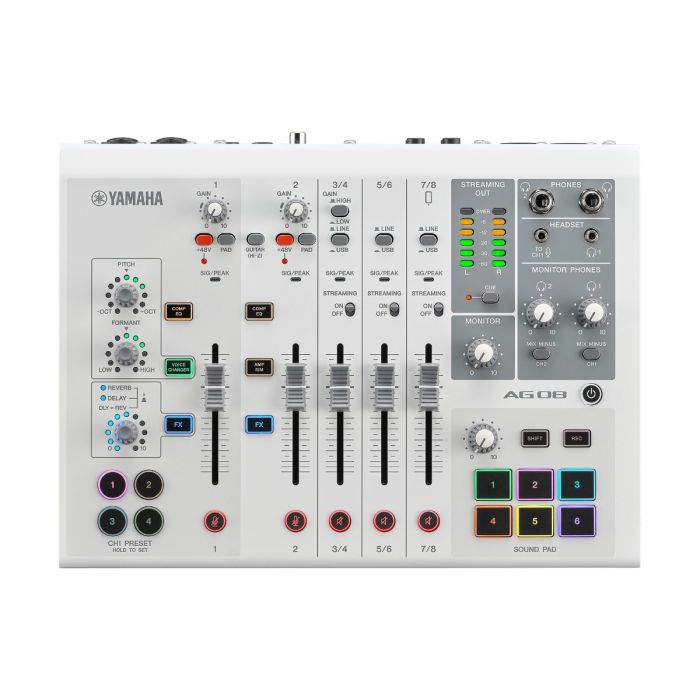

Yamaha White 8-Channel Mixer/USB Interface for IOS/Mac/PC

Skip to the beginning of the images gallery

Be the first to review this product

Yamaha White 8-Channel Mixer/USB Interface for IOS/Mac/PC

SKU

YAAG08W

$499.99

In stock

View Pickup Points

Pickup is available in 1 stores

iHomiLA

821 S Los Angeles St, Los Angeles, 90014

United States

Pickup available

1 pcs

In stock

Size Guilde Delivery & Return

Details

Yamaha

AG08B 8-Channel Live Streaming Mixer / USB Interface (Black)

Item #: AG08B | UPC: --

Build a complete streaming station on your desk. Yamaha’s AG08B combines an 8-channel mixer with a multi-channel USB interface and onboard DSP so creators, musicians, and podcasters can route mics, instruments, calls, and playback with speed and clarity. Two combo inputs supply +48 V phantom power for condensers, with a dedicated Guitar (Hi-Z) on CH2. Three stereo inputs—including TRRS smartphone I/O—cover music players, game audio, and guest devices. USB delivers four stereo streams for flexible routing to and from your DAW and streaming apps. Onboard effects include Voice Changer, Amp Simulator, Comp/EQ, SPX Reverb/Delay, Ducker, and Maximizer, while six sound pads trigger stingers or samples. Dual headphone outs and balanced XLR/TRS monitor outputs keep monitoring clean. Power from the included adapter or via USB-C for mobile rigs.

Flagship AG-series workflow: fast USB routing, enhanced footswitch control, deep software editor, and stage-ready Yamaha reliability.

Key Features

8-channel live-streaming mixer with multi-channel USB audio
2× combo mic/line inputs with +48 V phantom; CH2 Guitar (Hi-Z)
3× stereo inputs incl. CH7/8 4-pole TRRS smartphone in/out
USB audio 24-bit / 48 kHz, 8-in / 14-out with four stereo USB streams
Onboard DSP: Voice Changer, Amp Sim, Comp/EQ, SPX Reverb/Delay, Ducker, Maximizer
Six assignable sound pads plus CH1 FX preset buttons
Dual headphone outputs; balanced XLR and TRS monitor outs
Power via included 12 V adapter or USB-C (5 V, 1.5 A)

Specifications

Channels

8

Mono Inputs

CH1: Combo (Mic +48 V / Line) + 3.5 mm headset mic*; CH2: Combo (Mic +48 V / Guitar / Line)

Stereo Inputs

CH3/4: L/R stereo phone; CH5/6: L/R RCA / 3.5 mm; CH7/8: 4-pole TRRS in/out

USB I/O

USB-C, 8-in / 14-out; 4 stereo streams (Streaming, Voice, AUX, DAW)

Headphone Outputs

2 (PHONES 1: 1/4″ or headset mini*; PHONES 2: 1/4″)

Monitor Outputs

L/R XLR and L/R 1/4″ TRS

Stereo Out (MIX)

L/R 1/4″ TRS

Onboard DSP

Voice Changer, Amp Sim, COMP, EQ, SPX Reverb, Delay, Ducker, Maximizer

Sound Pads

6

Resolution

24-bit / 48 kHz

Power

DC 12 V, 1.5 A or USB-C 5 V, 1.5 A; max 7.5 W

Dimensions (W×H×D)

290 × 88 × 222 mm (11.5″ × 3.5″ × 8.8″)

Weight

2.2 kg (4.9 lb)

Included

AC Adapter (PA-150B), USB cable (1.5 m), Quick & Safety Guides; Steinberg Cubase AI & WaveLab Cast downloads

Notes

*CH1 input and headset mic cannot be used simultaneously
