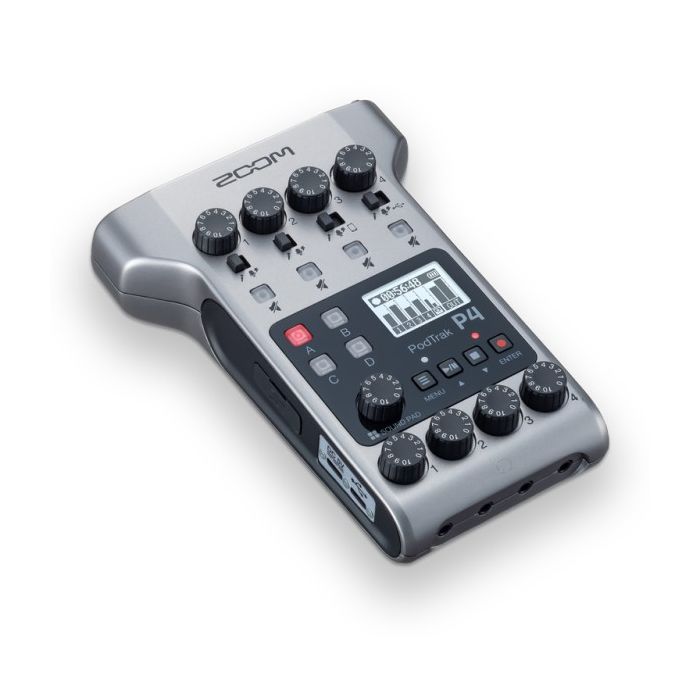

Zoom PodTrak P4

HIGH-QUALITY MIC INPUTS
The P4’s mic inputs feature Zoom’s professional quality preamps. Providing up to 70dB of gain, the P4 can be used with the most demanding microphones

HEADPHONES FOR EVERYONE
With 4 independent headphone outputs, each with dedicated volume control, everyone can hear it all.

CALL-IN GUESTS
The P4 makes it easy to incorporate remote interviews. Just connect your phone to the P4 with a TRRS cable. Or connect your computer via USB to your favorite conferencing software. With the P4’s built-in mix-minus feature, echo and feedback will automatically be eliminated.

PRODUCE LIKE A PRO
The P4’s customizable Sound Pads can instantly trigger music, ads, jingles, and pre-recorded interviews. Easily load your own sounds or choose from 11 pre-recorded presets.

GO WHERE THE STORY TAKES YOU
The P4 operates for up to 4 hours on 2 AA batteries, or you can also use a USB battery for extended recording time.

AUDIO INTERFACE
The P4 can serve as a 2-input, 2-output audio interface, allowing you to record directly to your computer, Android or iOS* device. With the P4 you can also live-stream your podcast.

* Apple Lightning to USB camera adapter required.

PODTRAK P4 FEATURES

• Four mic inputs with XLR connectors
• Four headphone outputs with individual volume control
• Gain control knobs and mute buttons for each input
• Phantom power for all XLR inputs
• Automatically prevent feedback from call audio using the Mix-Minus function
• Easily connect your phone using the TRRS connection
• Trigger sound effects using four assignable Sound Pads with 11preset sounds
• All input sources can be recorded on separate tracks
• 16-bit /44.1kHz audio WAV
• Records directly to SD, SDHC, and SDXC cards up to 512 GB
• 2-input, 2-output USB audio interface
• Class-compliant mode for iOS compatibility
• Up to four hours of use with just two AA batteries or a USB power supply

SPECS

• INPUTS & OUTPUTS
• NUMBER OF INPUT CHANNELS 4 (mono/stereo)
• NUMBER OF OUTPUT CHANNELS 1 (headphone x 4)
• CONNECTORS
• MIC XLR jacks (2: HOT)
• SMARTPHONE CONNECTION JACK TRRS mini-jack (4 contacts, TIP: L, RING1: R, RING2: GND, SLEEVE: MIC)
• USB USB Type-C (audio interface and mass storage functions)
• Note: Use a USB cable that supports data transfer. USB bus power is supported.
• DC 5 V USB Type-C (for power supply)
• HEADPHONES 3.5 mm stereo mini
• PHANTOM POWER
• PHANTOM POWER +48 V
• RECORDER
• RECORDER Formats: WAV 44.1 kHz, 16-bit, mono/stereo
• Recording media: 4 GB−32 GB SDHC-compliant cards (Class 10 or higher);
• 64 GB−512 GB SDXC-compliant cards (Class 10 or higher)
• AUDIO INTERFACE
• AUDIO INTERFACE 44.1 kHz, 16-bit, 2-in/2-out
• POWER
• POWER 2 AA batteries (alkaline, NiMH or lithium)
• • We recommend using NiMH
• AC adapter (ZOOM AD-17): DC 5 V/1 A (USB bus power is supported.)
• EST. CONTINUOUS OPERATION TIME USING BATTERIES Recording 44.1 kHz/16-bit/4ch audio to SD card (when 48 V is OFF and headphone impedance is 63 Ω)
• Alkaline batteries: about 4 hours
• NiMH batteries (1900 mAh): about 4.5 hours
• Lithium batteries: about 9 hours. The above values are approximate. Continuous battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.
• MISC.
