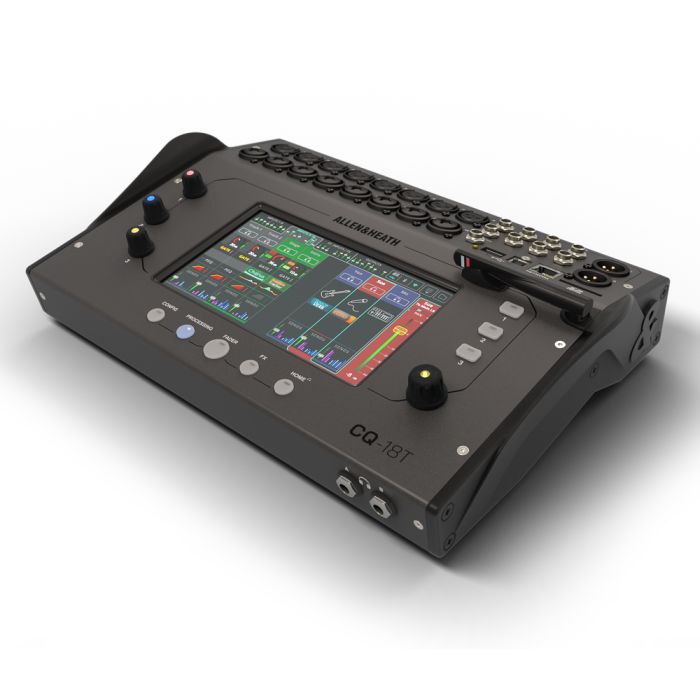

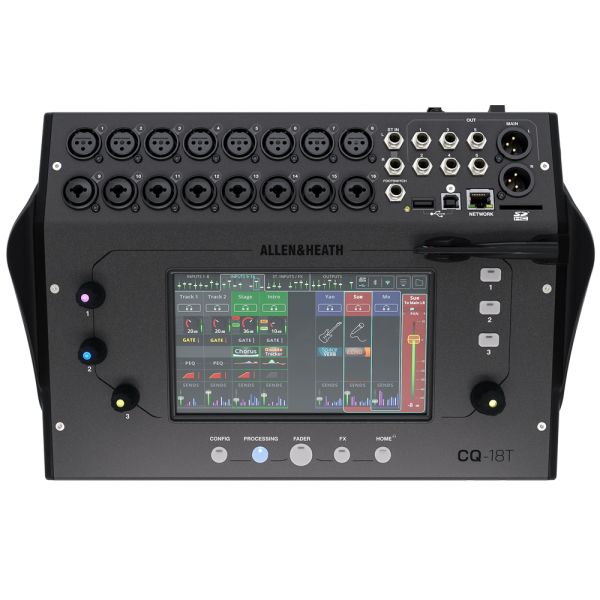

Allen & Heath CQ-18T Ultra-compact form factor, 96kHz digital audio mixer

CQ is Allen & Heath’s most compact digital mixer range ever.

Built on a 96kHz processing engine, it’s rich in connectivity with Bluetooth, wireless
options, SD and USB audio recording and playback.

Focusing on speed and ease of use - brand new Quick Channels, Gain/Feedback
Assistants and signal conscious FX enhance the world-renowned audio and build
quality that users expect from Allen & Heath.

Offered in three form factors – two desktop models with hands-on control and one
stage box model. All utilise the same technology, apps, and UI but with slightly
different feature sets and price points.

With the CQ range, Allen & Heath have created a super portable and fun to use, but
still fully featured digital mixer, suitable for technical and non-technical users alike.

CQ is designed to be used anywhere high-quality sound processing and summing is
required, from bands and producers to AV and rental, from the main mixer in a small
venue to a sub mixer on the largest stage.


Hardware Features:

•16 Mic/Line preamps, 8x XLR + 8x XLR/TRS ‘Combi’
•Balanced stereo line input, 2x TRS
•Main LR, 2x XLR
•6x Monitor Mixes, 6x TRS
•2x Assignable headphone outputs, 2x 6.35mm TRS
•24x22 USB-B interface
•24x22 SD record/playback
•Stereo USB record/playback with dedicated input channel
•Stereo Bluetooth playback with dedicated input channel
•4x FX Assist engines
•3x Custom SoftKeys
•3x Smart Rotaries
•Dual Footswitch connection
•7” Capacitive touchscreen with associated rotary control
•Built-in dual band 2.4G/5G AC Wi-Fi with auto channel select
•346mm x 242mm x 88mm, 3kg



Software Features:

96kHz Processing Engine​
Under the hood is a powerhouse of processing with Allen & Heath’s renowned 96kHz FPGA
technology. Including brand new smart tools and signal conscious FX to get you a better mix,
faster.

Quick and Complete Channels
Quick Channels offer instrument and application specific processing. Dial in a full channel of
processing with a single knob. Switch to a Complete Channel for advanced tweaking.

Gain Assistant
CQ’s gain assistant saves you time by automatically and accurately setting preamp gain for
you. It can then keep an eye on your preamp levels to prevent nasty peaks.

Feedback Assistant
Find and remove feedback frequencies at setup using fixed mode and then watch out for
feedback throughout the show across all outputs with live mode.

FX Assist engines
Including brand new signal-conscious reverb and delay units which dynamically respond to
signal to always sit correctly in the mix.

AMM
Improve clarity and reduce background noise for speech applications without needing to lift a
finger. Available on every input.

Remote Apps
Control the mixer from (almost) anywhere with free apps for Windows, Mac, Android and iOS.
CQ-MixPad gives the engineer complete control anywhere in the room and CQ4You allows
the performer to adjust only their mix and hear exactly what they need to.
