Allen & Heath

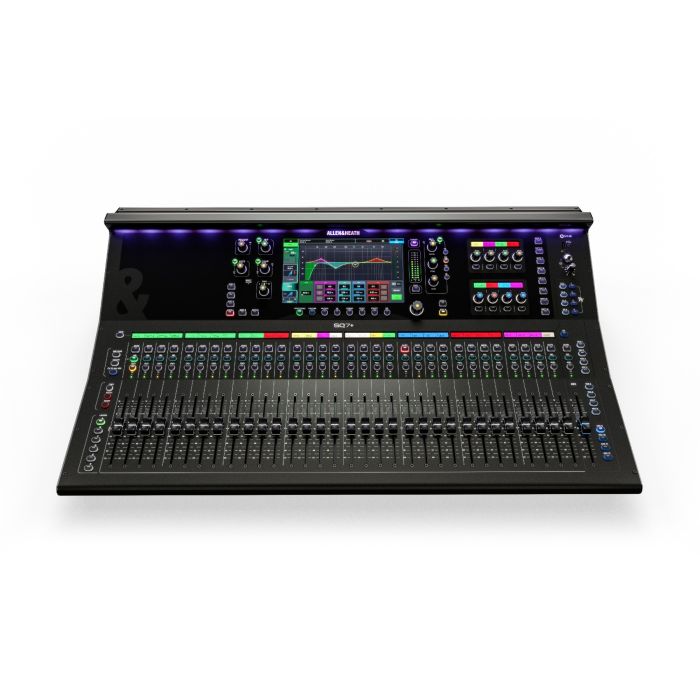

SQ7+ RackUltra FX Enabled 48-channel Digital Mixer with DEEP Processing

Item #: AH-SQ-7-PLUS | UPC: 5056756902780

Watch the Allen & Heath SQ+ Series overview and feature demonstration.

The Allen & Heath SQ7+ is the flagship model in the SQ+ series, delivering uncompromising hands-on control, powerful processing, and premium audio quality for demanding live sound, broadcast, AV, touring, and installation environments. Powered by Allen & Heath’s 96kHz XCVI FPGA core, the SQ7+ provides ultra-low latency performance with exceptional clarity, phase coherence, and dynamic detail across every channel and mix bus. Designed for engineers managing larger and more complex productions, the SQ7+ expands workflow capabilities with 33 motorized faders, 16 assignable SoftKeys, 8 SoftRotaries, and a redesigned 9" capacitive touchscreen interface with fast, intuitive navigation. Four integrated RackUltra FX engines, advanced DEEP processing support, extensive analog and digital I/O, and flexible networking options make the SQ7+ a professional-grade centerpiece for modern stage and studio production systems.

The SQ+ platform builds on the renowned Allen & Heath SQ workflow by combining flagship-tier RackUltra FX processing, enhanced control surfaces, expanded channel power, and upgraded visual navigation. The SQ7+ delivers the highest level of tactile control in the series while maintaining the portability and reliability required for professional touring and installed sound applications.

Key Features

96kHz XCVI FPGA processing core delivers ultra-low latency and phase-coherent digital mixing performance
33 motorized faders, 16 SoftKeys, and 8 SoftRotaries provide advanced hands-on workflow control for large productions
Four built-in RackUltra FX engines offer premium reverbs, saturation, vocal processing, and pitch-based effects
Supports DEEP Processing add-ons with embedded analog-modelled processing and no added system latency
Integrated USB recording and playback with 32x32 multitrack interface support at both 96kHz and 48kHz
128x128 SLink networking, optional Dante/MADI/Waves expansion, and remote control apps for scalable system integration

Specifications

Mixer Architecture

48 Channel / 44 Bus Digital Mixer

Processing Core

96kHz XCVI FPGA Core

Mix Buses

12 Stereo Aux/Group Mixes + LR, 6 Mono/Linkable Matrix

FX Processing

8 RackExtra FX Engines + 4 RackUltra FX Engines with dedicated sends and returns

Local Inputs

32 XLR Mic/Line Inputs, 3 Stereo Line Inputs, 1 XLR Talkback Input

Local Outputs

16 XLR Outputs, 2 TRS Outputs, AES3 Stereo Digital Output, Headphone Output

Display

9" Capacitive Touchscreen with redesigned dark GUI

Control Surface

33 Motorized 100mm Faders, 16 SoftKeys, 8 SoftRotaries, 6 Channel Strip Layers

Digital Connectivity

128x128 Intelligent SLink Port, USB-A, USB-B, optional Dante/Waves/MADI cards

USB Audio Interface

32x32 Multichannel Recording/Playback at 96kHz and 48kHz

Product Dimensions

514.9mm × 804mm × 198.5mm / 20.3" × 31.7" × 7.8"

Weight

18.42kg / 40.6 lbs

Packaged Dimensions

700mm × 970mm × 360mm / 27.6" × 38.2" × 14.2"

Packaged Weight

23.69kg / 52.2 lbs
