DAS (16) EVENT 28a (4) EVENT 218a Array PACK

SKU
DASEVENT28a16x4EVENT218ARRAYPACK
$71,509.85
In stock
Large Platform Line Array System for Tour or Permanent install
View Pickup Points
Pickup is available in 1 stores

iHomiLA

821 S Los Angeles St, Los Angeles, 90014

United States

Pickup available

2 pcs
In stock
Size Guilde Delivery & Return
DAS Audio

EVENT Touring Line Array System — 16× EVENT-28A + 4× EVENT-118A with Carts, Array Frames, Covers & Chain Hoists

Professional powered line array package · Full fly-ready configuration · 8-per-side arrays with sub support
Complete powered line array solution designed for touring, medium festivals, and fixed installs. This system features sixteen DAS EVENT-28A dual 8″ powered line array elements and four EVENT-118A 18″ powered subs, forming a full stereo rig with eight array elements per side. Includes transport carts, covers, array rigging frames, and a pair of ProX A-series electric chain hoists with controllers for safe and efficient flying. Compact, consistent, and road-ready with fast deployment and reliable SPL across large audiences.
System Makeup
16× EVENT-28A (8 per side) · 4× EVENT-118A subs · rigging · hoists · carts
Audience Capacity
~1,000–2,000 people (venue and array height dependent)
Horizontal Coverage
100° per element (constant directivity horn)
Vertical Coverage
Adjustable with splay angles 0–10° between cabinets

Key Features

  • Complete powered line array system with 8 tops per side
  • DAS EVENT-28A delivers 133 dB peak per element with FIR processing
  • EVENT-118A 18″ powered subs provide extended LF to 35 Hz
  • Array frames enable precise flying or ground-stacked setups
  • Includes ProX A-series chain hoists with dual controllers
  • Protective covers and carts streamline transport and load-in/out

Component Specifications

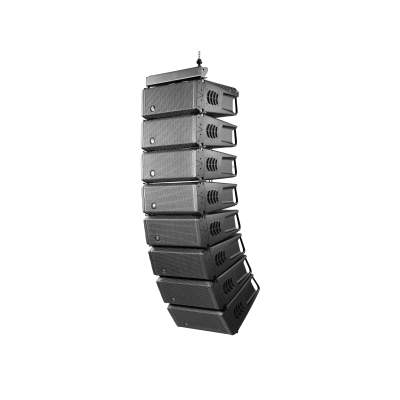

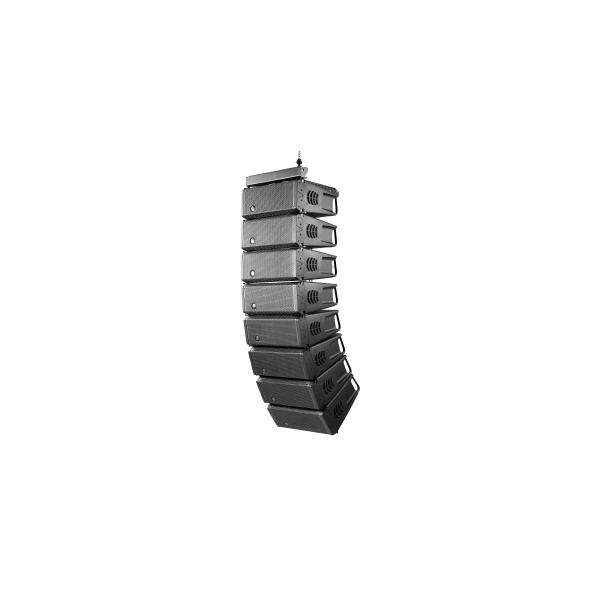

EVENT-28A Line Array Element (per cabinet)

Type
Powered dual 8″ 2-way line array
Drivers
2× 8″ LF + 1× M-60 HF compression driver
Amplification
Class-D, bi-amped, onboard DSP
Max SPL
133 dB peak @1 m
Frequency Range
70 Hz–20 kHz (-10 dB)
Coverage
100° H × 10° V
Weight
20.5 kg (45 lb)

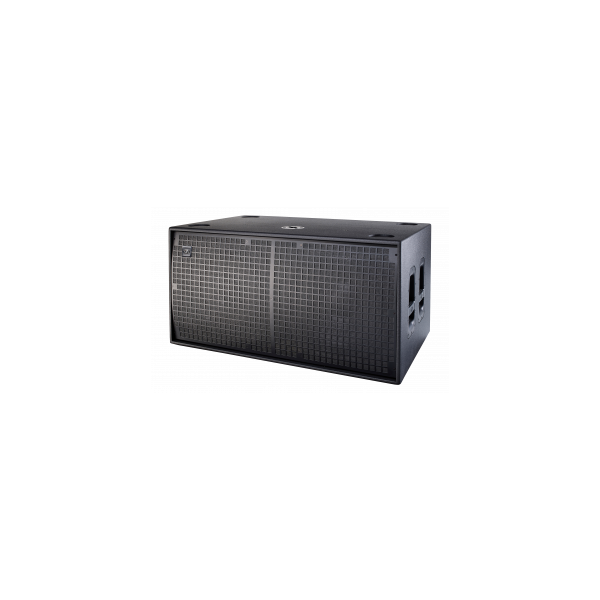

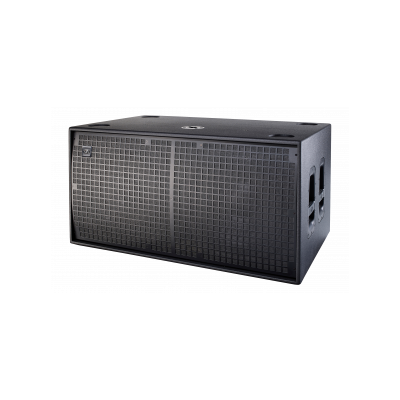

EVENT-118A Subwoofer (per cabinet)

Design
Front-loaded 18″ powered subwoofer
Driver
DAS 18FWN (3″ voice coil)
Amplification
Class-D 1200 W continuous / 2400 W peak
Frequency Range
35–125 Hz (-10 dB)
Max SPL
134 dB peak @1 m

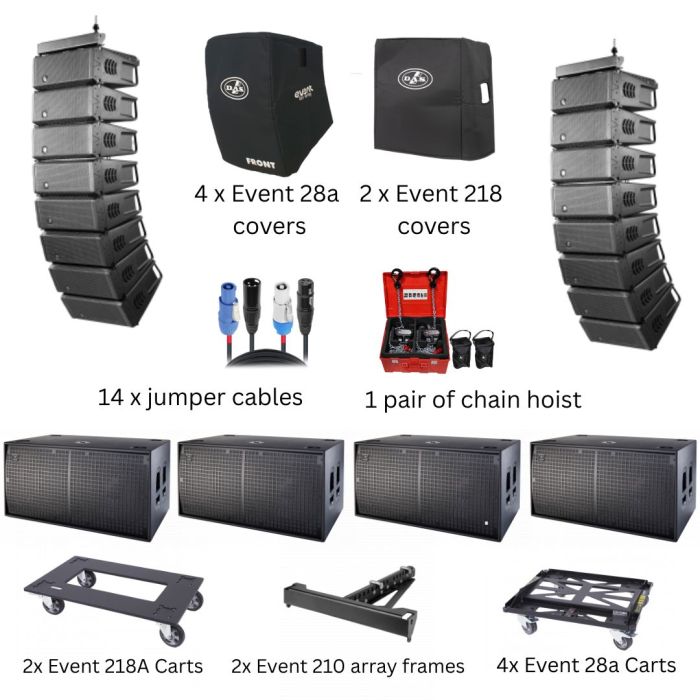

Included in This Package

  • 16× DAS EVENT-28A powered line array elements (8 per side)
  • 4× DAS EVENT-118A powered 18″ subwoofers
  • 2× DAS flying frames / array brackets for EVENT series

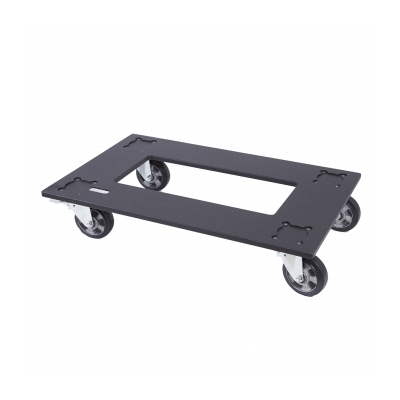

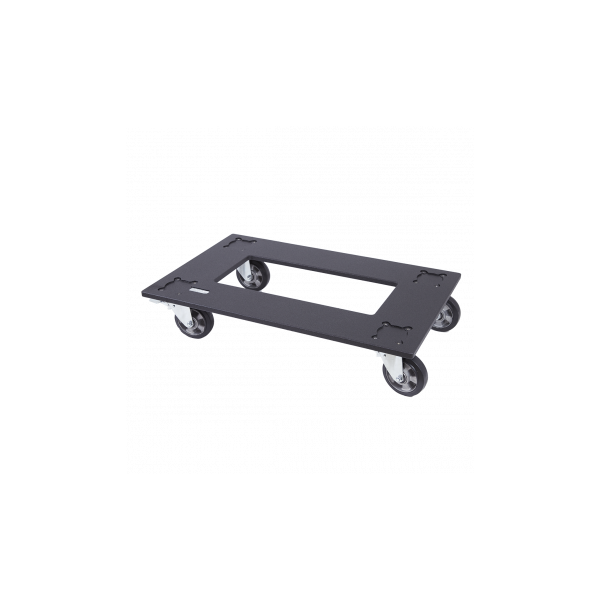

  • 4× Factory transport carts for EVENT-28A
  • 4× Protective covers for EVENT-118A
  • 4× Protective covers for EVENT-28A (4 per cart)
  • 1× Pair of ProX A-series 1-ton chain hoists with dual controller

Power, network cabling, and array prediction design not included. Use DASaim or EASE Focus for configuration and coverage simulation.

Eight EVENT-28A elements per side provide up to 100° horizontal × 80° vertical coverage (depending on splay), with smooth tonal consistency. System is optimized for small outdoor festivals, indoor auditoriums, and regional production work. Approximate max audience coverage: 1,500–2,000 persons at 100 dB(A) FOH.
Related Keywords: DAS EVENT-28A system, EVENT-118A subwoofers, powered line array package, 16 tops 4 subs, flying frame line array, ProX chain hoist package, line array with carts and covers, festival PA system
