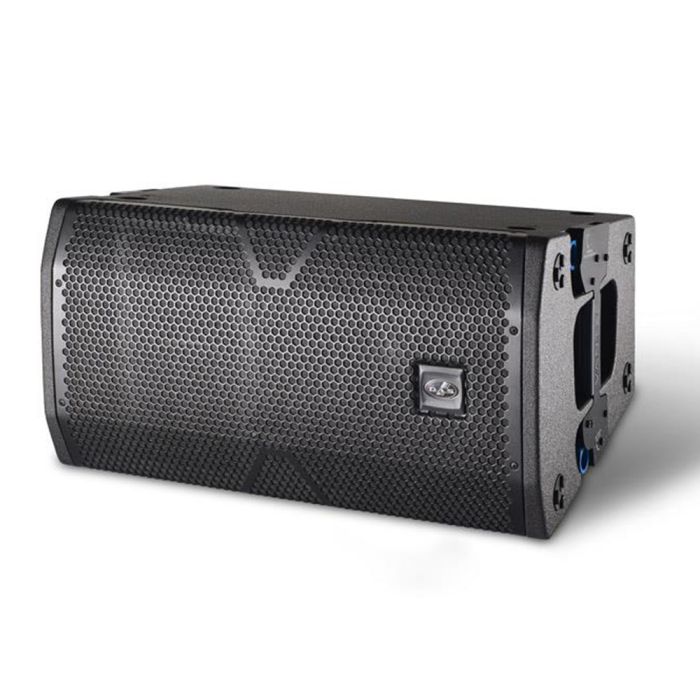

DAS Audio Vantec-20A

- Active Curved Source Line Array
Class D Bi-amplified 1500 Wpeak
FIR filters for linear phase response
1 x DAS 12F4C + 2 x M-60 compression drivers
Compact design with high output capabilities
DAScontrol with presets and configurations
DASlink wireless streaming and remote control
+/- 13.5 variable tilt pole mount

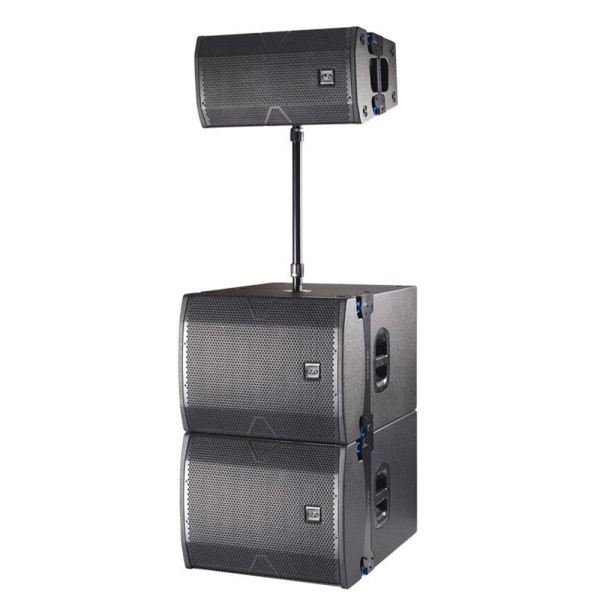

The Vantec-20A is an active curved source line array that incorporates an arsenal of hi-tech solutions designed to provide the versatility needed by todays sound hire professionals. Whether it be stacked on the Vantec-118A companion subwoofer; flown in a compact array; or used alone on a speaker stand; the Vantec -20A can be used effectively in an incredible number of applications that include corporate A/V; mid-size sound reinforcement; and permanent installation.

Designed for use in arrays of up to 5 units; the Vantec-20A is ideal for applications where the power and long-throw characteristics of large line arrays are not needed. Individual units can be mounted on tripods with precise aiming possible thanks to the variable angle pole mount which allows for 13.5 up or down tilt.

The DAScontrol interface allows users to easily configure the Vantec-20A systems for use individually or in combination with other units. Selectable high pass filter presets facilitate alignment with the Vantec-18A and Vantec-118A active bass systems without external processing. Throw compensation settings and array size selection can all be handled simply via the DAScontrol interface. When the Vantec-20A is used individually; the DASlink APP can be used to stream music in high definition stereo and remotely control the systems functions.

The enclosure is manufactured using Baltic birch plywood and finished with the DAS ISO-flex coating. Power is supplied by a cutting-edge 1500 Wpeak Class D amplifier in a biamplified configuration driving a single DAS 12F4C loudspeaker and twin M-60 compression drivers.

Specifications:

Amplifier Power: 1500 Wpeak (Class D Bi-amplified)
Frequency Range (-10 dB): 63 Hz - 20 kHz
Rated Peak SPL at 1 m: 136 dB
Dispersion: 90º H x 15º V
Enclosure Material: Birch Plywood
Color/Finish: Black/ISO-flex

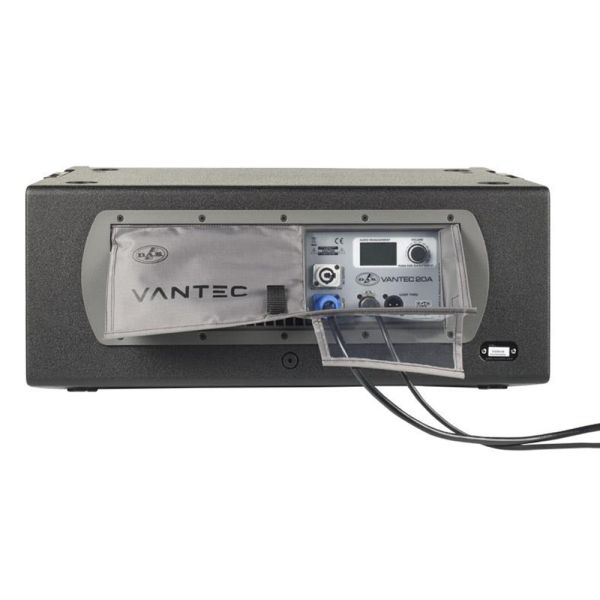

Connectors: INPUT: 1 x Female XLR LOOP THRU: 1 x Male XLR AC INPUT: 1 x powerCON AC OUTPUT: 1 x powerCON
AC Requirements: 115 V, 3.0 A, 50 Hz/60 Hz 230 V, 1.5 A, 50 Hz/60 Hz
