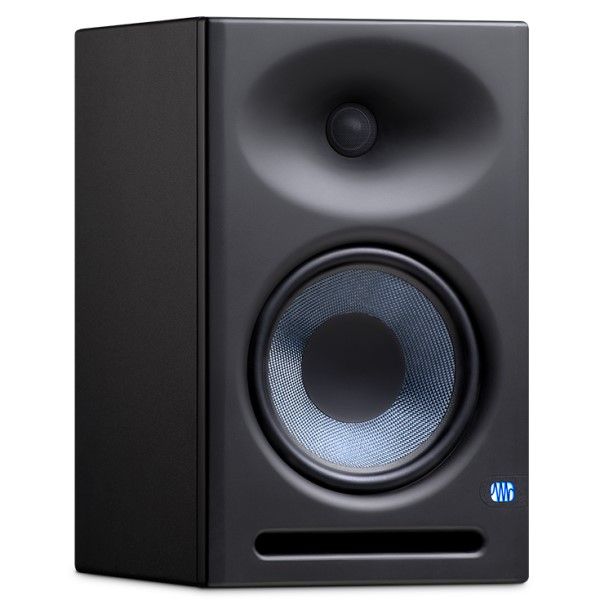

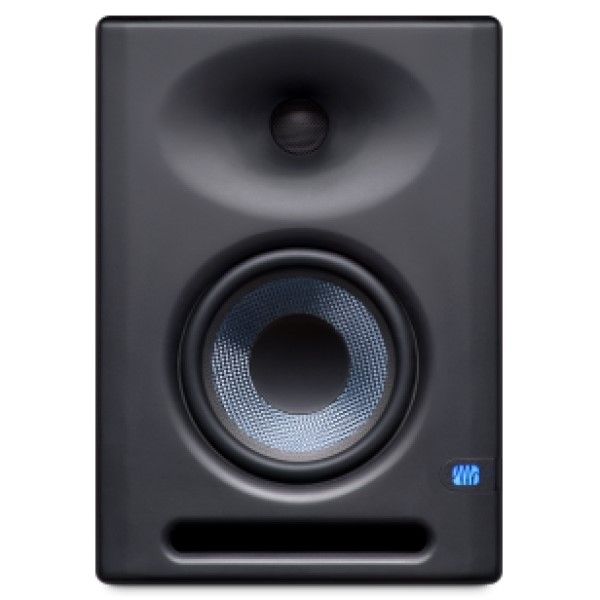

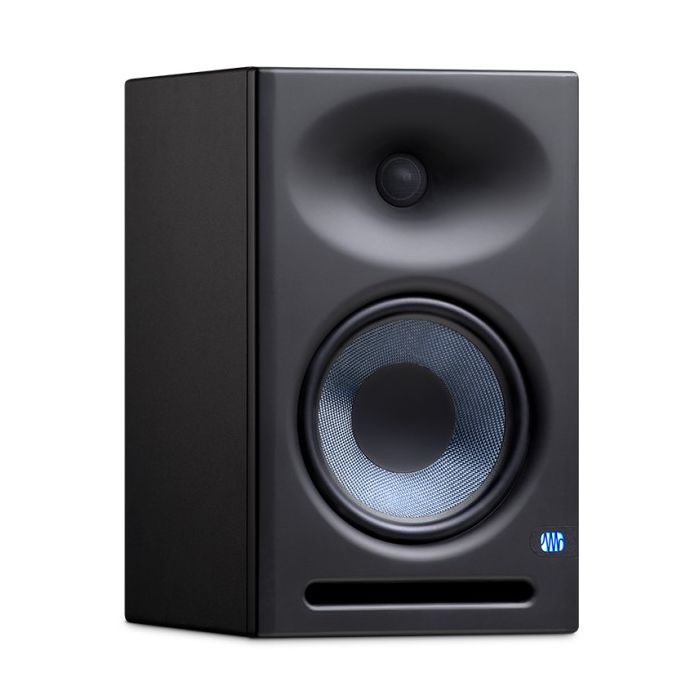

PreSonus Eris E5 XT

Details

Eris E5 XT: 2-Way Active Studio Monitors with Wave Guide

Features

Components and construction

5.25-inch woven composite low-frequency transducer
1-inch (25 mm), ultra-low-mass, silk-dome, high-frequency transducer
Front-firing acoustic port for superior bass-frequency reproduction
Optimized, resonance-suppressing internal bracing
102 dB maximum continuous SPL

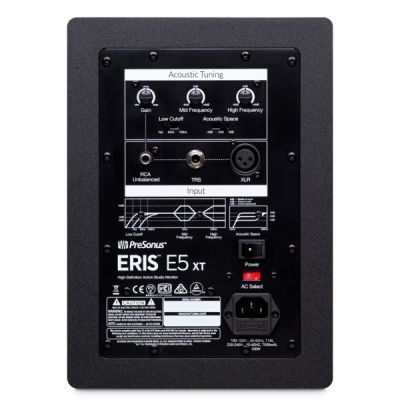

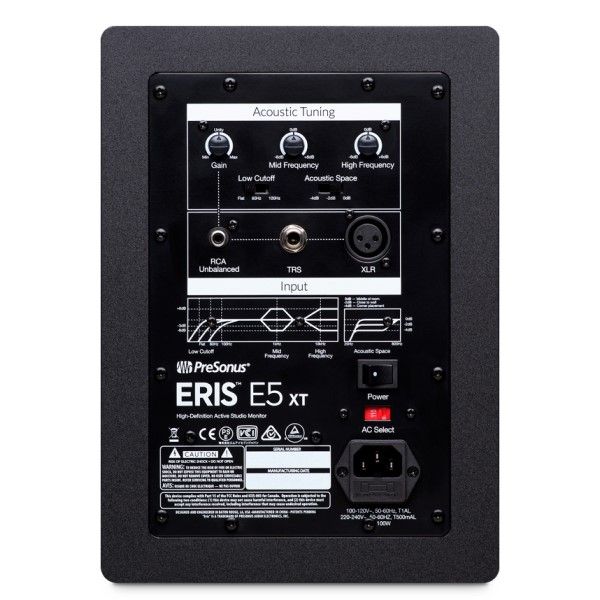

User controls

HF Adjust (±6 dB, continuously variable)
Midrange Adjust (±6 dB, continuously variable)
Acoustic Space settings (flat, -2, -4 dB) for accurate mixing contour
Highpass filter (Off, 80 Hz, 100 Hz)

Power and safety

70 watt, Class AB biamplification
RF interference, output current limiting, over-temperature, transient, and subsonic protection
Amplifier “soft start” feature eliminates popping on power-up
Internal power supply with IEC connector
Power switch with on/off LED

Inputs and outputs

Balanced XLR/¼-inch
Unbalanced RCA inputs

Technical Specifications

Inputs

1- Balanced XLR
1- Balanced ¼” TRS
1- Unbalanced RCA

Performance

Frequency Response: 48 Hz - 20 kHz
Crossover Frequency: 3 kHz
LF Amplifier Power: 45W
HF Amplifier Power: 35W
Peak SPL (@ 1 meter): 102 dB
LF Driver: 5.25”
HF Driver: 1” silk dome
Input Impedance: 10 kΩ
Dispersion: 100 degrees horizontal by 60 degrees vertical

User Controls

Volume Range: A-type taper
MF Control: -6, 0, +6 dB
HF Control: -6, 0, +6 dB
Low Cut: Flat, 80 Hz, or 100 Hz
Acoustic Space:Flat, -2 dB, or -4 dB

Protection
