PreSonus Monitor Station V2

Details

PreSonus Monitor Station V2

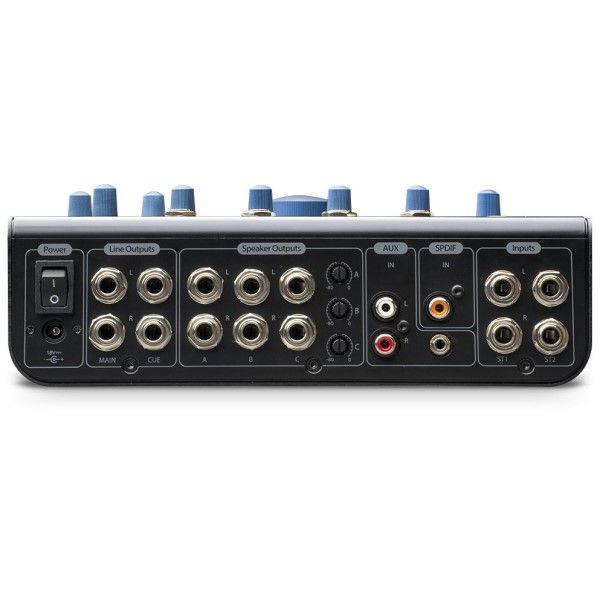

Inputs and Outputs

2 Stereo pairs of ¼” TRS inputs
1 Stereo pair of RCA Aux inputs
1 Stereo S/PDIF coaxial (RCA) digital input (44.1/48/88.2/96 kHz)
3 Stereo pairs of ¼” TRS speaker outputs with level controls
1 Stereo pair of ¼” TRS Main outputs
1 Stereo pair of ¼” TRS Cue outputs
4 ¼” TRS screaming-loud stereo headphone outputs

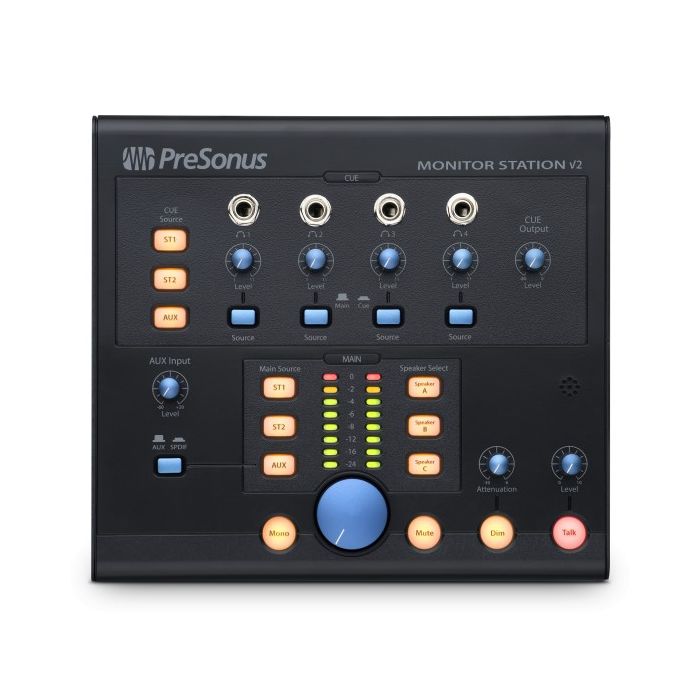

Controls

Large Main level control
3 Individual Main Source (ST1, ST2, Aux) select switches
3 Individual Speaker Select switches
Cue section with Source select (ST1, ST2, Aux) and output-level control
Aux-S/PDIF Select switch
Aux Input level control
Main Mute, Mono, and Dim switches with variable Dim attenuation

Additional Features

8-segment color LED input meters with selectable reference level
Built-in electret-condenser talkback microphone with input-gain control and Talkback button
Convenient desktop design

Technical Specifications

Audio Inputs
Internal Talkback Microphone

Gain Range +15 to +55 dB
Type Electret condenser
Sensitivity -42 dB

Stereo 1 and Stereo 2 Inputs

Type: ¼” TRS Active Balanced
Input Impedance (Balanced): 10 kΩ
S/N Ratio (1 kHz @ +10 dBu, Unity Gain): >105 dB
THD+N (unwtd, 1 kHz @ 0 dBu Output, Unity Gain): <0.0075%
Frequency Response (±0.5 dB): 10 Hz to 65 kHz
Noise Floor (20 Hz to 20 kHz, 150Ω input termination): -96 dBu
Maximum Input Level (Minimum Gain, 1 kHz @ 0.5% THD+N): +22 dBu

Auxiliary Inputs

Type: RCA Active Unbalanced
Input Impedance: 47.5 kΩ
S/N Ratio (1 kHz @ 0 dBu, Unity Gain): >115 dB
THD+N (unwtd, 1 kHz @ 0 dBu Output, Unity Gain): <0.01%
Frequency Response (±0.5 dB): 10 Hz to 50 kHz
Gain Range: 80 dB to +10 dB

S/PDIF

Types: RCA 75Ω coax
Dynamic Range: 113 dB
THD+N: 0.0025% (1 kHz @ -1 dBFS)
Maximum output at 0 dBFS: +18 dBu
Sample Rates: 44.1, 48, 88.2, 96 kHz

Input Meters (ST1, ST2, and Aux only)

Type: Dual 8-segment LED w/peak hold
Sensitivity Range: -24 dB to 0 dB

Audio Outputs

Type: ¼” TRS Active Balanced
Output Impedance (Balanced): 51Ω
THD+N (unwtd, 1 kHz @ 0 dBu, Unity Gain): <0.01%
Frequency Response (±0.5 dB):10 Hz to 50 kHz

Speaker A, B, and C

Trim Range: -80 dB to 0 dB
Main Level Range: -80 dB to 0 dB
Dim Attenuation Range: -30 dB to -6dB

Headphones

Type: ¼” TRS Active Stereo
Maximum Output (60Ω load): 150 mW / channel
Frequency Response (±1.0 dB): 10 Hz to 50 kHz

Power

Power Supply Type: External DC Transformer/Internal Line
Input Connector Type: Barrel, 5.5 mm outside diameter, 2.1 mm inside diameter
Monitor Station Input Voltage Range: 18 VDC
Power Requirements (Continuous): 10W

Physical

Dimensions
Height: 2.5” (63.5 mm)
Depth: 8.5” (216 mm)
Width: 9” (228.6 mm)
Weight: 6 lbs. (4.54 kg)
