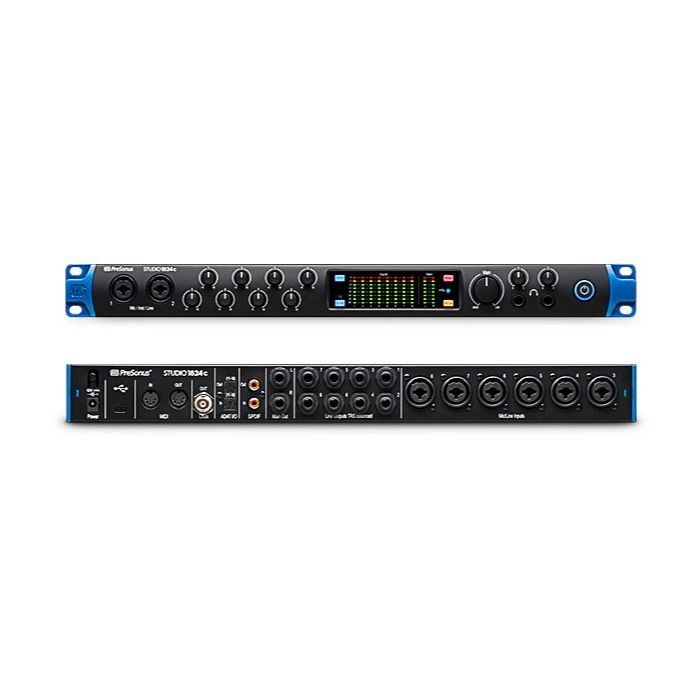

PreSonus Studio 1824c
Studio 1824c: The full-featured, ultra-high-def, USB-C™ compatible audio interface.
Studio 1824c: The full-featured, ultra-high-def, USB-C™ compatible audio interface.
Features
Input/Output
Up to 18 inputs/20 outputs simultaneously (8x8 at 192 kHz).
2 mic/instrument/line inputs with XMAX Class A mic preamps.
6 mic/line inputs with XMAX Class A mic preamps.
8 channels of ADAT Optical I/O (4 channels at 96 kHz).
2 balanced ¼” TRS main outputs.
- DC coupled for sending control voltages
- DC coupled for sending control voltages
2 stereo headphone outputs with individual level controls.
MIDI In/Out.
Stereo S/PDIF digital I/O.
1 USB-C™ compatible 2.0 port.
- USB-C™ to USB-C™ and USB-C™ to USB-A cables included for compatibility with most computers
BNC word clock output.
Integrated Software
- Studio One® Artist for Mac® and Windows®
- UC Surface control software for Mac, Windows, iPad®, and Android™
- Studio Magic Plug-in Suite
Meters, Controls, and Features
- 18x8 onboard DSP monitor mixer
- Front-panel level controls for main outputs
- Mono and Mute buttons for the main outputs
- True +48V phantom power for condenser microphones (global)
- 10 ladder-style 8-LED level meters (8 input, 2 main output)
Digital
- USB-C™ compatible port (USB 2.0)
- 24-bit resolution
- 44.1, 48, 88.2, 96, 176.4, and 192 kHz sampling rates
Physical
- 1U rack-mountable
- Road-rugged construction with all-metal chassis and metal knobs
Computer system requirements:
Below are the minimum computer-system requirements.
Mac
- macOS® 10.13 or higher (64-bit only)
- Intel® Core™ i3 processor or better
- 4 GB RAM (8 GB or more recommended)
Windows
- Windows® 10 (64-bit only)
- Intel Core i3 / AMD A10 processor or better
- 4 GB RAM (8 GB or more recommended)
Mac and Windows Systems
- USB-C™ or USB-A 2.0 port compatibility
- 32 GB hard disk space
- PreSonus Universal Control 2.0 or higher
- Monitor with 1366x768 resolution (high-dpi monitor recommended)
- Multitouch-enabled monitor required for touch operation
iOS
- iOS 10 or later
- iPad Pro, iPad Air 2, iPad Air, iPad mini 4, iPad mini with Retina display, iPad (4th generation) (UC Surface)
Android
- Android™ 6.0 (Marshmallow) or later
- Android smartphone (QMix-UC)
- Android tablet (8-inch) with 1024x768 resolution (UC Surface)
Microphone Inputs
Maximum Level: +16 dBu, min gain
Gain Range: 80 dB
Frequency Response: 20 Hz - 20 kHz (unity gain)
Dynamic Range: 110 dB (A-wtd, min gain)
THD + N: 0.005% (1 kHz, 0dBu, unity gain)
EIN: -128 dBu (A-wtd, 20 kHz BW, Rs=150Ω, max gain)
Input Impedance: 1400Ω
Phantom Power: 48V (>10 mA per channel)
Line Inputs
Maximum Level: +21 dBu (balanced, min gain)
Gain Range: 40 dB
Frequency Response: 20 Hz-20 kHz (unity gain)
Dynamic Range: 112 dB (A-wtd, min gain)
THD + N: 0.005% (1 kHz, +18 dBu, min gain)
Input Impedance: 10 kΩ
Instrument Inputs
Maximum Level: +15 dBu (unbalanced, min gain)
Gain Range: 80 dB
Frequency Response: 20 Hz - 20 kHz (min gain)
Dynamic Range: 112 dB (A-wtd, min gain)
THD + N: 0.020% (1 kHz, +10 dBu, min gain)
Input Impedance: 1M Ω
Main Outputs
Type: ¼" TRS female, DC Coupled
Maximum Level: +18 dBu, balanced
Frequency Response: 20Hz - 20kHz (unity gain)
Dynamic Range: 108 dB (A-wtd, unity gain)
THD + N: 0.004% (1 kHz, -1 dBFS, unity gain)
Line Outputs
Type: ¼" TRS female, DC coupled
Maximum Level: +18 dBu, balanced
Frequency Response: 20 Hz - 20 kHz
Dynamic Range: 108 dB (A-wtd, -60 dBFS)
THD + N: 0.004% (1 kHz, -1 dBFS, unity gain)
Headphone Outputs
Maximum Power: 150 mW/channel (60Ω load)
Frequency Response: 20 Hz - 20 kHz (unity gain)
Dynamic Range: 103 dB (A-weighted, 1 kHz, unity gain)
THD + N: 0.250% (1 kHz, 150 mW, unity gain)
Impedance Working Range: 32Ω to 600Ω
Physical
Height: 1.75" (44 mm)
Width: 19" (483 mm)
Depth: 5.5" (140 mm)
Weight: 4.8 lbs (2.2 kg)
| UPC | 673454008078 |
|---|
