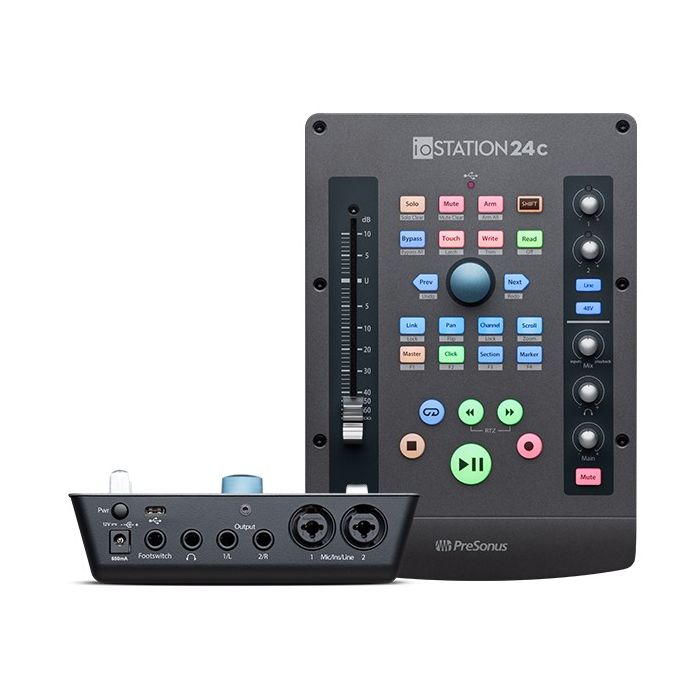

ioStation 24c: 2x2 USB-C™ compatible audio interface and production controller

Features

General Features

Two products in one: audio interface and production controller
Record through two high-quality XMAX mic preamps
Control your favorite DAW with a touch-sensitive motorized fader and intuitive navigation controls
Compact, ergonomic design fits into any studio, whether in your bedroom or your backpack

Recording Features

USB-C™ compatible (USB 2.0), 24-bit/192 kHz audio interface
2 mic/instrument/line inputs with XMAX mic preamps
2 balanced ¼” TRS main outputs
Simultaneous I/O up to 2 inputs and 2 outputs
Mixer knob for low-latency direct input monitoring
1 ¼” headphone output with independent level control
USB 2.0 connectivity, macOS/Windows compatible

Production Features

Single touch-sensitive, 100 mm long-throw, motorized fader
Large, 360° button encoder
Complete recording-transport controls: Play, Stop, Fast Forward, Rewind, Record, Loop
Drop Marker, Next/Prev Marker, Next/Prev Event
General session controls: Undo/Redo, Arm All, Solo/Mute Clear, Click On/Off
Session Navigator provides quick control over Track Scrolling, Timeline Scrolling, and much more
Channel Controls: Level, Pan, Solo, Mute, Rec Arm
Automation Controls: Touch, Latch, Trim, Write, Read, Off
Native Studio One support with tightly integrated control
Dedicated MCU modes for Logic, Live, and Cubase / Nuendo
Customized HUI implementation for Pro Tools
Footswitch input for hands-free start/stop (footswitch not included)

Included Software

Studio One Artist recording and production software
Over 6GB of additional loops and sample content
Studio Magic Plug-in Suite

Computer system requirements:
Below are the minimum computer-system requirements for the ioStation 24c.

Windows

Windows® 10 (64-bit only)
Intel® i3 / AMD A10 processor or better
4 GB RAM (8 GB or more recommended)

Mac

macOS® 10.13 or higher (64-bit only)
Intel® i3 or better
4 GB RAM (8 GB or more recommended)

Mac and Windows Systems

USB-C™ or USB-A 2.0 port compatibility
32 GB hard disk space
PreSonus Universal Control 2.0 or higher
Monitor with 1366x768 resolution (high-dpi monitor recommended)
Multitouch-enabled monitor required for touch operation

Technical Specifications

Microphone Preamp

Type: XLR Female (via Combo), Balanced
Maximum Input Level: +16 dBu (Balanced, min. gain)
Gain Control Range: 80 dB
Frequency Response: 20 Hz to 20 kHz (±0.15 dB, unity gain, 48 kHz)
Dynamic Range: > 107 dB (A-wtd, min. gain)
Total Harmonic Distortion: < 0.007% (1 kHz, min. gain)
EIN: < -128 dBu (max gain, 40Ω, 22 kHz BW, A-wtd)
Input Impedance: 1.6 kΩ
Phantom Power: +48V, > 8 mA per input

Instrument Inputs

Type: ¼” TS Female (via Combo), Unbalanced
Maximum Input Level: +15 dBu (Unbalanced, min. gain)
Gain Control Range: 80 dB
Frequency Response: 20 Hz to 20 kHz (±0.2 dB, unity gain, 48 kHz)
Dynamic Range: > 110 dB (A-wtd, min. gain)
Total Harmonic Distortion: < 0.012% (1kHz, -1 dBFS, min. gain)
Input Impedance: > 1 MΩ

Line Inputs

Type: ¼” TRS Female (via Combo), Balanced
Maximum Input Level: + 22 dBu (Balanced, min. gain)
Frequency Response: 20 Hz to 20 kHz (±0.05 dB, unity gain, 48 kHz)
Dynamic Range: > 114 dB (A-wtd, min. gain)
Total Harmonic Distortion: < 0.007% (1 kHz, -1 dBFS, min. gain)
Input Impedance: 10 kΩ

Main and Line Outputs

Type: ¼” TRS Female, impedance balanced
Maximum Output Level: +18 dBu (Balanced)
Frequency Response: 20 Hz to 20 kHz (±0.2 dB, unity gain, 48 kHz)
Dynamic Range: > 109 dB (A-wtd)
Total Harmonic Distortion: < 0.005% (1 kHz, +4 dBu)

Headphone Outputs

Type: ¼” TRS Female, Stereo, Unbalanced
Maximum Output Level: 150 mW/channel (56Ω load)
Frequency Response: 20 Hz to 20 kHz (±0.2 dB, 56Ω load, 48 kHz)
Dynamic Range: > 107 dB (A-wtd)
Total Harmonic Distortion: < 0.02% (1 kHz, -1 dBFS, no load)
Headphone Impedance (working range): 32Ω to 300Ω

Digital Audio

Connection Type: USB 2.0 over USB-C™ Compatible Connection
ADC Dynamic Range: 115 dB (A-wtd)
DAC Dynamic Range: 115 dB (A-wtd)
Bit Depth: 24 bits
Internally Supported Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz

Clock

Jitter: < 70 ps RMS (20 Hz – 20 kHz)
Jitter Attenuation: > 60 dB (1 ns in => 1 ps out)
