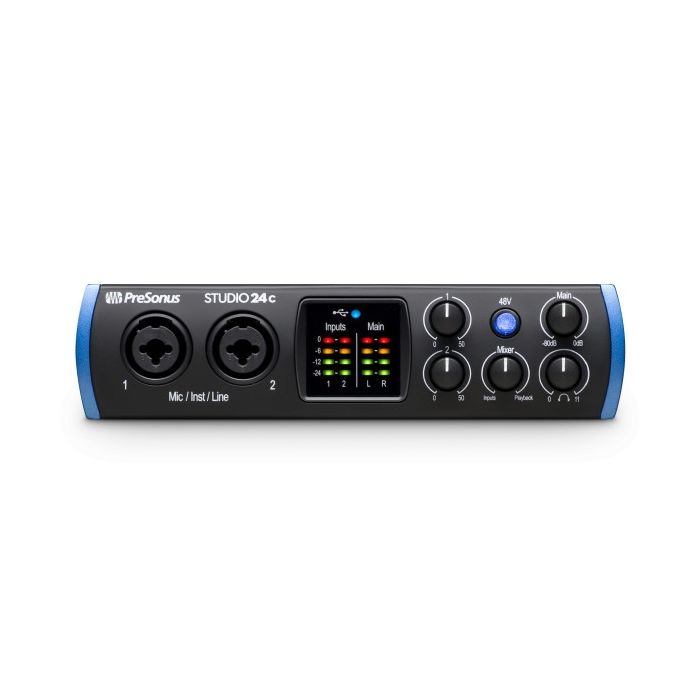

PreSonus Studio 24c
Studio 24c: The portable, affordable, ultra-high-def, USB-C™ compatible audio interface.
Studio 24c: The portable, affordable, ultra-high-def, USB-C™ compatible audio interface.
Features
Input/Output
- Simultaneous I/O up to 2 inputs/2 outputs.
- 2 mic/instrument/line inputs with XMAX-L mic preamps.
- 2 balanced ¼” TRS main outputs.
- 1 stereo headphone output.
- MIDI In/Out.
- 1 USB-C™ compatible 2.0 port.
- USB-C™ to USB-C™ and USB-C™ to USB-A cables included for compatibility with most computers
Meters, Controls, and Features
- Mixer knob for low-latency direct input monitoring
- Front-panel level controls for main outputs
- +48V phantom power for condenser microphones (global)
- 4 ladder-style LED level meters (2 input, 2 main output)
Integrated Software
- Studio One Artist®
- Studio Magic Plug-in Suite
Digital
- USB-C™ compatible port (USB 2.0)
- 24-bit resolution
- 44.1, 48, 88.2, 96, 176.4 and 192 kHz sampling rates
Physical
- Road-rugged construction with all-metal chassis and metal knobs
- USB bus-powered
Computer system requirements:
Below are the minimum computer-system requirements.
Mac
- macOS® 10.13 or higher (64-bit only)
- Intel® Core™ i3 processor or better
- 4 GB RAM (8 GB or more recommended)
Windows
- Windows® 10 (64-bit only)
- Intel Core i3 / AMD A10 processor or better
- 4 GB RAM (8 GB or more recommended)
Mac and Windows Systems
- USB-C™ or USB-A 2.0 port compatibility
- 30 GB hard disk space
- Monitor with 1366x768 resolution (high-dpi monitor recommended)
- Multitouch-enabled monitor required for touch operation
General
Sample Rates: 44.1, 48, 88.2, 96, 176.4, or 192 kHz
Converter Resolution: 24 bit
ADC Converter Dynamic Range: 108 dB
DAC Converter Dynamic Range: 108 dB
Microphone Inputs
Maximum Level: +10 dBu (±0.5 dBu, min gain)
Gain Range: 50 dB
Frequency Response: 20 Hz - 20 kHz (±0.3 dBu, unity gain, unwtd)
Dynamic Range: 106 dB (A-wtd, min gain)
THD + N: 0.004% (1 kHz, -1 dBFS, min gain)
EIN: -126 dBu (A-weighted, 150Ω, max gain)
Input Impedance: 1.4 kΩ
Phantom Power: +48 VDC (10 mA total)
Instrument Inputs
Maximum Level: +19 dBu (min gain)
Gain Range: 50 dB
Frequency Response: 20 Hz – 20 kHz (±0.1 dBu, unity gain, unwtd)
Dynamic Range: 105 dB (A-wtd, unity gain)
THD + N: 0.002% (1 kHz, min gain)
Input Impedance: 750 kΩ
Main Outputs
Type: ¼" TRS, Female
Maximum Level: +10 dBu (1 kHz, unity gain, balanced)
Frequency Response: 20 Hz – 20 kHz (±0.3 dBu, unity gain, unwtd)
Dynamic Range: 104 dB (unity gain, unwtd)
THD + N: 0.001% ( 1 kHz, -1 dBFS, unity gain)
Headphone Outputs
Maximum Power: 47 mW / channel @ 56Ω
Frequency Response: 20 Hz – 20 kHz (±0.5 dBu, unity gain, unwtd)
Dynamic Range: 83 dB (A-wtd, 56Ω load)
THD + N: 0.01% (1 kHz, 0 dBFS, loaded)
Impedance Working Range: 32Ω to 300Ω
Physical
Height: 1.75" (44 mm)
Width: 7" (180 mm)
Depth: 5.5" (144 mm)
Weight: 2 lbs. (0.9 kg)
| UPC | 673454007910 |
|---|
