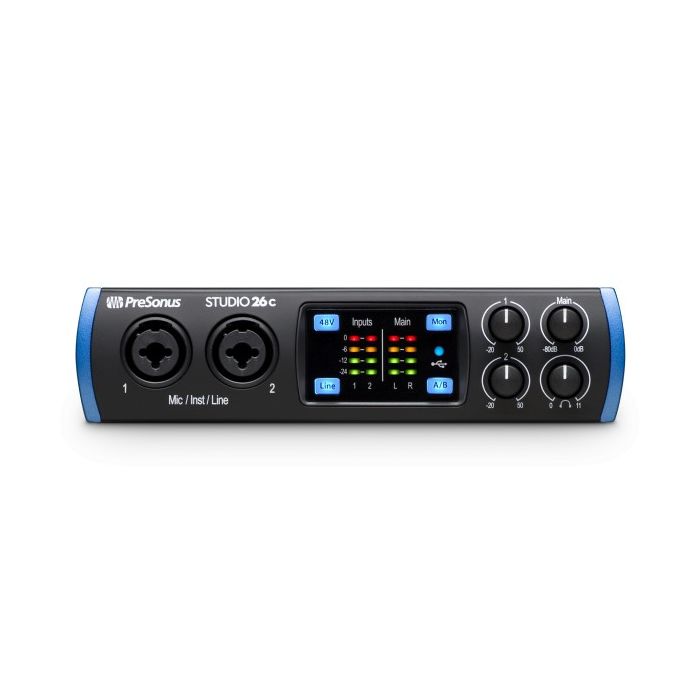

PreSonus Studio 26c
Studio 26c: The portable ultra-high-def USB-C™ compatible audio interface.
Studio 26c: The portable ultra-high-def USB-C™ compatible audio interface.
Features
Input/Output
- Simultaneous I/O up to 2 inputs/4 outputs
- 2 mic/instrument/line inputs with XMAX-L mic preamps
- 2 balanced ¼” TRS main outputs
- DC coupled for sending control voltages*
- 2 balanced ¼” TRS line outputs for monitor mixing
- DC coupled for sending control voltages*
- 1 stereo headphone output
- MIDI In/Out
- 1 USB-C™ compatible 2.0 port
- USB-C™ to USB-C™ and USB-C™ to USB-A cables included for compatibility with most computers
Meters, Controls, and Features
- Direct monitoring
- Cue mix A/B (for headphone output)
- Front-panel level controls for main outputs
- True +48V phantom power for condenser microphones (global)
- 4 ladder-style LED level meters (2 input, 2 main output)
Integrated Software
- Studio One Artist®
- Studio Magic Plug-in Suite
Digital
- USB-C™ compatible port (USB 2.0)
- 24-bit resolution
- 44.1, 48, 88.2, 96, 176.4 and 192 kHz sampling rates
Physical
- Road-rugged construction with all-metal chassis and metal knobs
- USB bus-powered
Computer system requirements:
Below are the minimum computer-system requirements.
Mac
- macOS® 10.13 or higher (64-bit only)
- Intel® Core™ i3 processor or better
- 4 GB RAM (8 GB or more recommended)
Windows
- Windows® 10 (64-bit only)
- Intel Core i3 / AMD A10 processor or better
- 4 GB RAM (8 GB or more recommended)
Mac and Windows Systems
- USB-C™ or USB-A 2.0 port compatibility
- 30 GB hard disk space
- Monitor with 1366x768 resolution (high-dpi monitor recommended)
- Multitouch-enabled monitor required for touch operation
General
Sample Rates: 44.1, 48, 88.2, 96, 176.4, or 192 kHz
Converter Resolution: 24 bit
Converter Dynamic Range: 114 dB
Converter Dynamic Range: 114 dB
Microphone Inputs
Maximum Level: +4.5 dBu (balanced, min gain)
Gain Range: 70 dB
Frequency Response: 20 Hz - 20 kHz (±0.1 dB, min gain, 48 kHz)
Dynamic Range: 110 dB (A-wtd, min gain)
THD + N: 0.004% (1 kHz, -1 dBFS, unity gain)
EIN: -125 dBu (max gain, 150Ω, A-wtd)
Input Impedance: 1.6 kΩ
Phantom Power: +48 VDC (10 mA total)
Line Inputs
Maximum Level: +19.5 dBu (balanced, min gain)
Gain Range: 70 dB
Frequency Response: 20 Hz - 20 kHz (±0.1 dB, min gain, 48 kHz)
Dynamic Range: 110 dB (A-wtd, min gain)
THD + N: 0.007% (1 kHz, -1 dBFS, min gain)
Input Impedance: 10 kΩ
Instrument Inputs
Maximum Level: +14 dBu (unbalanced, min gain)
Gain Range: 70 dB
Frequency Response: 20 Hz - 20 kHz (±0.15 dB, 48 kHz, min gain)
Dynamic Range: 110 dB (A-wtd, min gain)
THD + N: 0.008% (1 kHz, -1 dBFS, min gain)
Input Impedance: 1 MΩ
Line Outputs (Mains)
Type: ¼" TRS Female, DC Coupled*
Maximum Level: +10 dBu (balanced)
Frequency Response: 20 Hz - 20 kHz (±0.1 dB, unity gain, 48 kHz)
Dynamic Range: 108 dB (A-wtd)
THD + N: 0.0015% (1 kHz, -1 dBFS)
Line Outputs (3/4)
Type: ¼" TRS Female, DC Coupled*
Maximum Level: +10 dBu (balanced)
Frequency Response: 20 Hz - 20 kHz (±0.1dB, unity gain, 48 kHz)
Dynamic Range: 113 dB (A-wtd)
THD + N: 0.008% (1 kHz, -1 dBFS)
Headphone Outputs
Maximum Power: 30 mW/channel (56Ω load)
Frequency Response: 20 Hz - 20 kHz (±0.2 dB, 56Ω load, 48 kHz)
Dynamic Range: 104 dB (A-wtd, 56Ω load)
THD + N: 0.009% (1 kHz, -1 dBFS, no load)
Impedance Working Range: 32Ω to 300Ω
Physical
Height: 1.75" (44 mm)
Width: 7" (180 mm)
Depth: 5.5" (144 mm)
Weight: 1.6 lbs. (0.7 kg)
