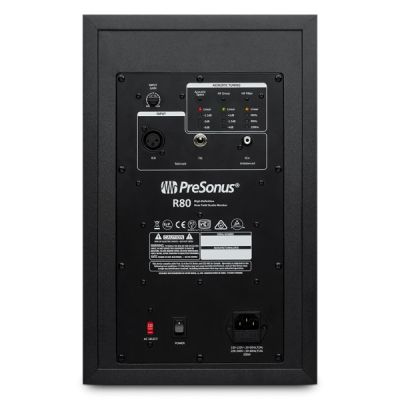

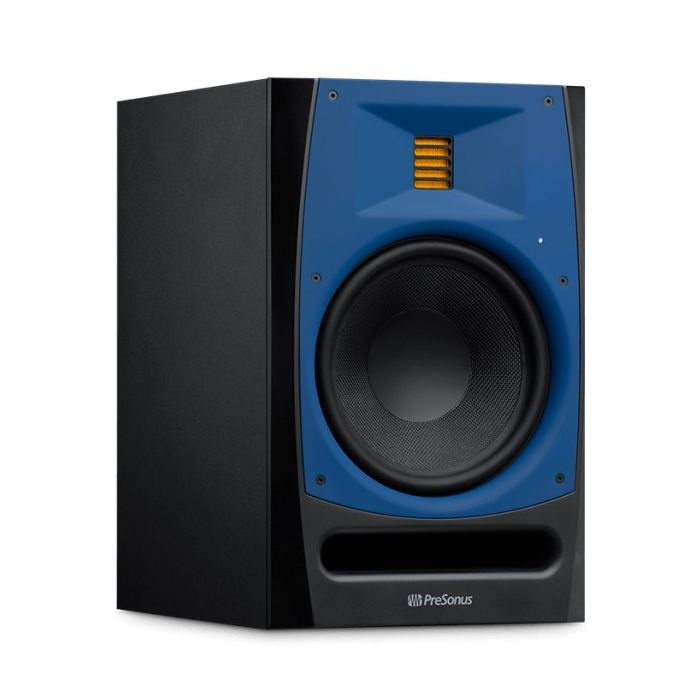

PreSonus R80

R80: AMT design provides a wide soundstage and amazing transient response

Features

Components and Construction

2-way active AMT design provides articulate high-frequency response and wide stereo imaging
Custom-designed, 6.8-inch, AMT ribbon tweeter responds to the subtlest waveforms and the highest frequencies
8-inch woven composite LF drivers provide transparent mid- and low-frequency reproduction for clean sound and punchy bass
Balanced XLR and ¼-inch TRS plus unbalanced RCA inputs provide flexibility for seamless integration into any environment

User Controls

Acoustic Space settings (Linear, -1.5 dB, -3 dB, -6 dB) compensate for room placement

Power and Safety

Biamped 150W RMS (LF = 100W, HF = 50W), Class D power amplifier with switching power supply
RF interference, output current limiting, over temperature, turn-on/off transient, and subsonic filter protection
Energy Conservation Mode (with enable/disable) lowers standby power to <0.5W
External mains fuse
Internal power supply with IEC connector

Technical Specifications

Inputs

1- Balanced XLR
1- Balanced ¼” TRS
1- Unbalanced RCA

Performance

Frequency Response: 40 Hz – 22 kHz
Crossover Frequency: 2.6 kHz
LF Amplifier Power: 100W Class D
HF Amplifier Power: 50W Class D
Peak SPL (@ 1 meter): 107 dB
LF Driver: 8” woven composite
HF Driver Type: AMT
Diaphragm: 6.8-inch2 (4,400 mm2)
Equiv. Diaphragm ø: 3” (75 mm)
Input Impedance: 20 kΩ balanced, 10 kΩ unbalanced
SNR (typical, A-weighted): >100 dB

Power

Factory preprogrammed: 100-120V ～50/60 Hz or 220-240V ～50/60 Hz
Standby Power: < 0.5W

Protection

RF interference
Output-current limiting
Over-temperature
Turn-on/off transient
Subsonic filter
External mains fuse

User Controls

Volume Range: A-type taper
HF Driver: Linear, +1 dB, -3 dB, -6 dB
Highpass filter: Linear, 60 Hz, 80 Hz, 100 Hz
Acoustic Space: Linear, -1.5 dB, -3 dB, -6 dB
Energy Conservation Mode: On/Off/Query

Cabinet
