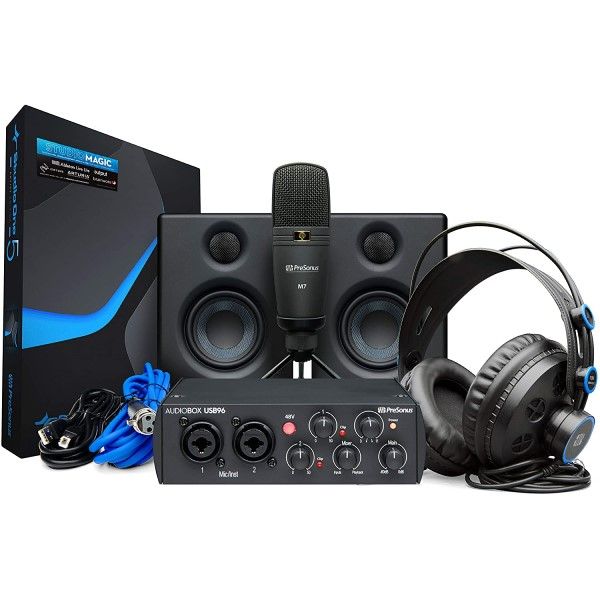

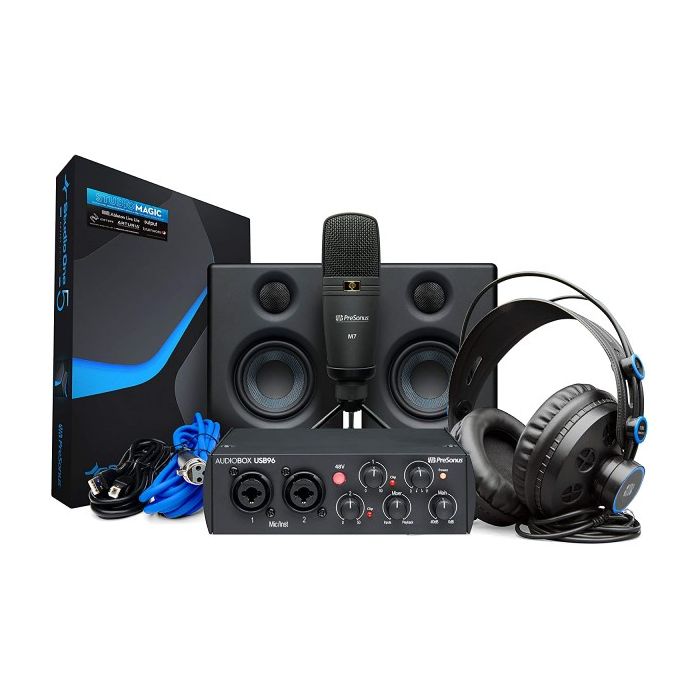

PreSonus Audiobox Studio Ultimate Bundle - 25th Anniversary Edition

AudioBox Studio Ultimate Bundle: Deluxe Hardware/Software Recording Collection

Features

AudioBox USB® 96

• Bus-powered USB audio and MIDI interface
• Perfect match with Studio One® Artist software for Mac® and Windows®
• 24-bit resolution, 44.1, 48, 88.1, and 96 kHz sampling rate
• 2 combo mic/instrument inputs with Class A mic preamplifiers
• 48V phantom power (for included M7 microphone or other condenser microphones)
• Zero-latency monitoring via internal analog mixer
• Headphone jack with level control (for included HD7 headphones or other headphones)
• 1/3U rack-mountable
• Computer-to-interface connection cable included

Studio One Artist software

• Elegant single-window work environment
• Powerful drag-and-drop functionality
• Unlimited audio tracks, MIDI tracks, virtual instruments, buses, and FX channels
• Content browser with convenient sort options and preview player
• Most intuitive MIDI-mapping system available
• Real-time audio time-stretching and resampling
• Multitrack comping and MIDI editing
• Transient detection and editing and groove extraction
• Automatic delay compensation
• Advanced automation
• Integrates tightly with Celemony Melodyne
• Instantly configures to PreSonus® interfaces
• Compatible with ASIO-, Windows Audio-, and Core Audio-compliant interfaces
• 26 Native Effects 32-bit effects and virtual instrument plug-ins
• 10+ GB of third-party software, loops, and instruments
• Mac- and Windows-compatible

Computer system requirements:

Studio One® is a modern, cross-platform DAW that is capable of operating as a 32-bit or 64-bit application. While we make every effort to ensure Studio One will run well on the widest variety of computers possible, please read these specifications carefully to determine compatibility with your system.

Below are the minimum computer-system requirements for Studio One.

Mac

• macOS® 10.11 or higher (64-bit only) or later
• Intel® Core Duo processor (Intel Core™ 2 Duo or Intel Core i3 or better recommended)
• 2 GB RAM (4 GB or more recommended)

Windows

• Windows® 7x 64/x86 SP1 or Windows 8/8.1 x64/x86 or Windows 10 x64/x86
• Intel Core 2 processor (Intel Core i3 processor or better recommended)
• 4 GB RAM (8 GB or more recommended)

Windows and Mac Systems

• USB 2.0 Port
• Internet connection (for activation)
• Monitor with at least 1024x768 resolution
• 20 GB hard-disk space
• Internal or external 7200 RPM storage drive highly recommended

Technical Specifications

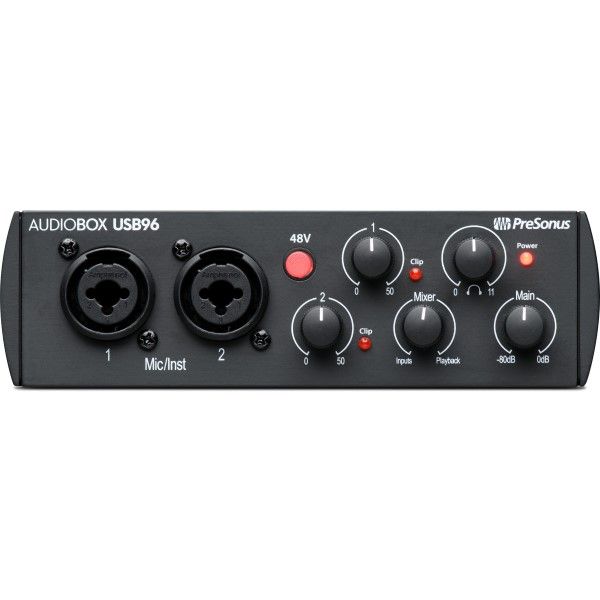

AudioBox USB® 96 Specifications

Microphone Preamp

Type: XLR Female Balanced
Frequency Response (±3.0 dB): 20 Hz to 20 kHz
Input Impedance (Balanced): 1200Ω
THD+N (unwtd, 1 kHz @ +4 dBu Output, Unity Gain) :< 0.008%
S/N Ratio (Unity Gain, Ref. = +4 dBu, 20 Hz to 22 kHz): > 95 dB
Common Mode Rejection Ratio (1 kHz, 55 dB Gain): > 45 dB
Gain Control Range (± 1 dB): 0 dB to 35 dB
Max Input Level (Unity Gain, 1 kHz @ 0.5% THD+N): -3 dBu
Phantom Power (±2 VDC): +48 VDC

Instrument Input

Type: ¼"
TRS Female Unbalanced Input Impedance: 0.5 MΩ

Line Outputs

Type: ¼"
Balanced Output Impedance: 51Ω

Headphone Output

Type: ¼" TRS Active Stereo
Maximum Output: 60 mW/Ch @ 60Ω Load
Frequency Response (±1.0 dB): 20 Hz - 30 kHz

MIDI I/O

Type: Dual 5-pin Female DIN

Digital Audio

ADC Dynamic Range (A-wtd, 48 kHz Sample Rate): 105 dB
DAC Dynamic Range (A-wtd, 48 kHz Sample Rate): 105 dB
Bit Depth: 24
Reference Level for 0 dBFS: +4 dBu
Internal Sample Frequency Selections (kHz): 44.1, 48, 88.2, 96
Power: USB 2.0 Bus-powered

Physical

Dimensions: 1/3U (steel chassis)
Height: 5.5” (139.7 mm)
Depth: 1.75" (44.45 mm)
Width: 5.5” (139.7 mm)
Weight: 1.4 lbs (0.64 kg)

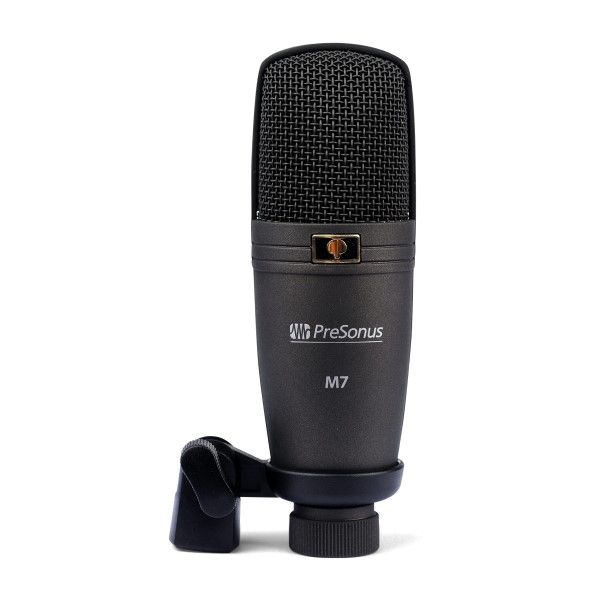

M7 Microphone Specifications

General

Type: Large-diaphragm condenser microphone
Element: Electret
Polar Pattern: Cardioid
Frequency Response: 40 Hz - 18 kHz
Sensitivity: -39 dBV/pa (12.2 mV/pa)
Rated Impedance: 200Ω
Equivalent Input Noise (EIN): 20 dB
Maximum SPL: 136 dB SPL
Phantom Power Required: +12 to +52 VDC, 3 mA
S/N Ratio: 74 dB
Dynamic Range: 11 dB
Current Consumption: 3.5 mA

Physical

Diameter: 2.13" (54 mm), maximum
Length: 6.69" (170 mm)
Weight: 11.3 oz. (320g)

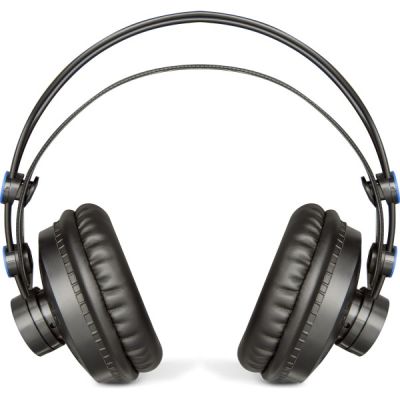

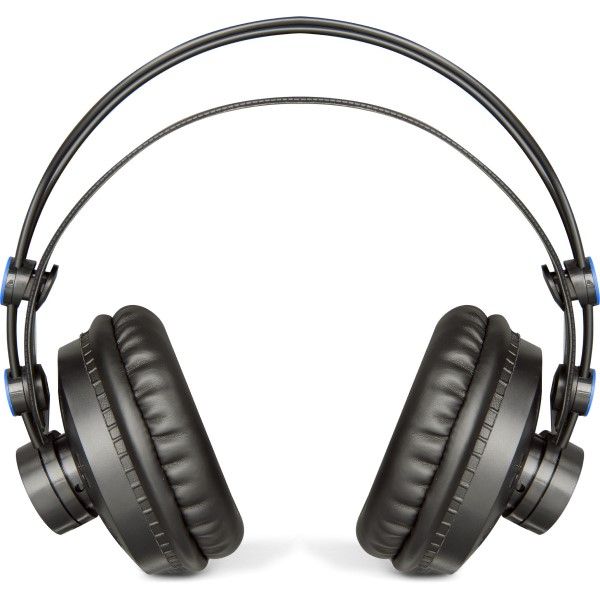

HD7 Headphone Specifications

General

Acoustic Design: Dynamic, semi-open
Driver: 50 mm, neodymium
Frequency Response: 10 Hz to 30 kHz
Sensitivity: 98 dB SPL (1 mW)
Maximum Power: 300 mW
Rated Impedance: 56Ω
Earpad: Leather

Physical

Weight, without Cable: 7.8 oz (222g)
Cable: 8' 2" (2.5m) straight, single-sided
Plug Adapter: 1/8" to 1/4" (3.5 to 6.3 mm), screw-on, gold-plated, stereo mini-plug

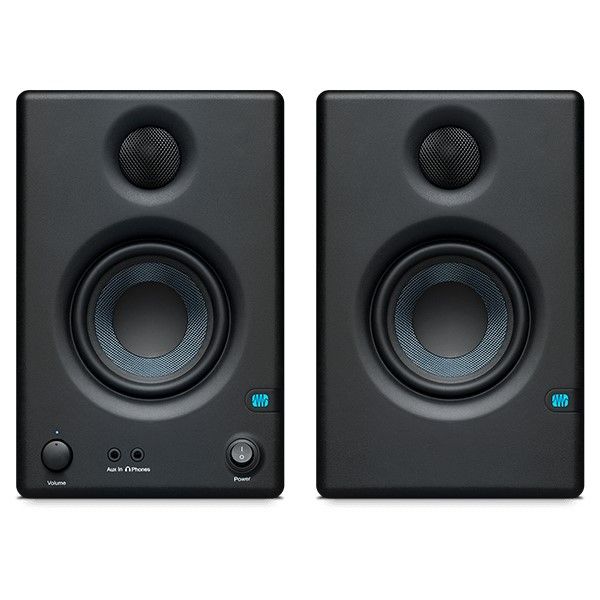

Eris E3.5

Inputs

• 1- Stereo 1/8"
• 2- Balanced ¼” TRS
• 2- Unbalanced RCA
