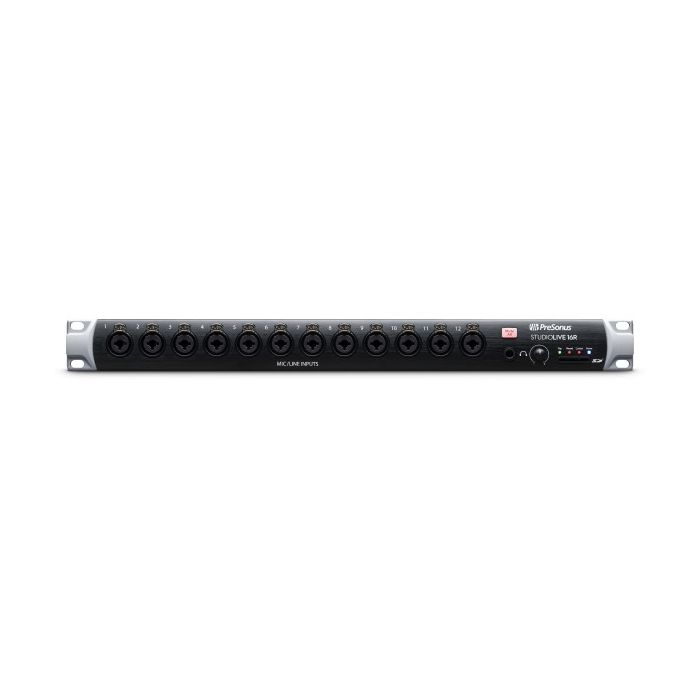

PreSonus StudioLive 16R

Computer system requirements:
Below are the minimum computer-system requirements for UC Surface, QMix®-UC, and Studio One®.

Mac

• macOS® 10.13 or higher (64-bit only)
• Intel® Core™ i3 or better
• Minimum 4 GB RAM (8 GB or more recommended)

iOS

• iOS 10 or later
• iPad Pro, iPad Air 2, iPad Air, iPad mini 4, iPad mini with Retina display, iPad (4th generation)

Technical Specifications

Microphone Preamplifier

Input Type: Combo locking XLR mic-¼” TRS line.

Frequency Response to Main Output (at unity gain): 20-20 kHz, ±0.5 dBu

Input Impedance: 1 kΩ

THD to Main Output: <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd

S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd): 94 dB

Common Mode Rejection Ratio (1 kHz at unity gain): 65 dB

Gain Control Range (±1 dB): 0 dB to +60 dB

Maximum Input Level (unity gain): +12 dBu

Phantom Power (±2 VDC): 48 VDC, switchable per channel

Unbalanced Inputs (Ch. 15-16)

Type: RCA Female, unbalanced (stereo pair)

Maximum Input Level: +12 dBu, ±0.5 dBu

Main Outputs

Type: XLR Male, balanced

Maximum Output Level: +24 dBu, ±0.5 dBu

Output Impedance: 100Ω

Mix Outputs

Type: ¼” TRS Female, balanced

Maximum Output Level: +18 dBu, ±0.5 dBu

Output Impedance: 100Ω

Headphone Output

Type: ¼” TRS Female, active stereo

Maximum Output: 100 mW/ch. @ 60Ω load

Frequency Response: 20 Hz – 20 kHz (± 0.5 dB)

THD+N: 0.01%, 1 kHz, max gain, 20 Hz BW, unwtd

S/N Ratio: 96 dB, 1 kHz, max gain, 20 Hz BW, unwtd

System Crosstalk

Input to Output: -90 dB (Ref = +4 dBu, 20 Hz-20 kHz, unwtd)

Adjacent Channels: -87 dB (Ref = +4 dBu, 20 Hz-20 kHz, unwtd

Digital Audio and Control

ADC Dynamic Range: 115 dB (A-wtd, 48 kHz)

DAC Dynamic Range: 115 dB (A-wtd, 48 kHz)

USB Recording Port: USB 2.0, Type-B

Network Control Port: RJ-45

AVB Audio Network Port: Locking XLR Ethernet

Internal Processing: 32-bit, floating point

Sampling Rate: 48 kHz, 44.1 kHz

A/D/A Bit Depth: 24

Reference Level for 0 dBFS: +18 dBu

Total System Latency: 1.9 ms (local routing, analog in-analog out, all processing active)

Clock

Jitter: <20 ps RMS (20 Hz - 20 kHz)

Jitter Attenuation: >60 dB (1 ns in, 1 ps out)

Power / Environmental

Connector: IEC

Input-Voltage Range: 90 to 230 VAC (±10%)

Power Requirements (continuous): 85W

Recommended Ambient Operating Temperature: 0˚ to 40˚ Celsius / 32˚ to 104˚ Fahrenheit

Physical

Height: 1.75” (45mm)

Width: 19” (483mm)

Depth: 12” (305mm)

Weight: 8.6 lbs. (3.9 kg)
