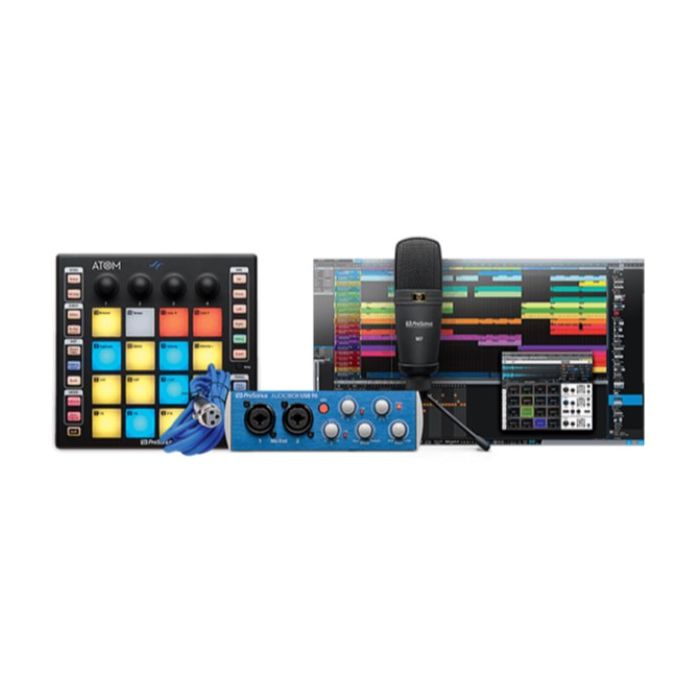

PreSonus ATOM Producer Lab

Details

ATOM Producer Lab

Features

Overview

Complete, all-in-one music production kit
ATOM™ USB pad controller for making beats, playing virtual instruments, and triggering samples and loops
AudioBox USB® 96 audio/MIDI interface
Studio One® Artist and Ableton® Live Lite production software and Studio Magic Plug-in Suite
M7 studio condenser microphone
MVP Loops content custom-curated for ATOM

ATOM Pad Controller

Trigger loops and effects and play virtual instruments with 16 full-size, velocity- and pressure-sensitive RGB pads.
8 assignable pad banks
MIDI Keyboard mode, Note Repeat mode, and Full Velocity mode to customize instrument control. (Application dependent)
4 programmable rotary encoders and 20 assignable buttons, navigate and set more parameters faster
Pressure switchable between MIDI aftertouch, channel pressure, and CC messages
Selectable pad velocity curves and pad pressure thresholds

Studio One® Artist Production Software

AudioBox USB 96 audio interface and ATOM pad controller are automatically detected by Studio One Artist, no setup required
Elegant single-window work environment
Powerful drag-and-drop functionality
Unlimited audio tracks, MIDI tracks, virtual instruments, buses, and FX channels
Navigate and choose an instrument from the Browser
Studio One dynamically switches ATOM between Keyboard and Drum modes depending on the selected instrument
31 Native Effects and 5 virtual instrument plug-ins
10+ GB of third-party software, loops, and instruments
Mac- and Windows-compatible

Ableton® Live Lite ATOM Integration Features

Navigate Up, Down, Left, or Right in Live's Session view in banks of 4 with ATOM's navigation buttons
Launch clips and scenes using ATOM's Session mode
RGB LEDs display which clips are playing or stopped and reflect each clip's assigned color
Play virtual instruments and Live's Drum Rack device using ATOM's Note mode
Navigate Live's mixer using ATOM's Channel mode
Select, Solo, and Record Enable channels as well as stop all clips on a selected channel
Knobs are used to change track volume, track panning, Sends A, and Sends B for the selected bank
Switch between Session and Arranger views from ATOM
Record in either Session Record or Arranger Record modes
Dedicated User mode for custom user assignments, Metronome On/Off, Save and Undo, Loop On/Off, and more...
Mac- and Windows-compatible

AudioBox® USB 96 Audio Interface

Bus-powered USB 2.0 audio and MIDI interface
2 combo mic/instrument inputs with Class A mic preamplifiers
48V phantom power (for included M7 microphone or other condenser microphones)
Zero-latency monitoring via internal analog mixer
Headphone jack with level control
Compact, rugged, all-metal chassis
USB cable included for connection to computer

M7 Microphone

Large-diaphragm design
Captures far more detail than a dynamic mic
Phantom-powered via AudioBox 96 USB
9' / 3 m cable included
Mic stand adapter
Cloth carry bag included

Computer system requirements:
Below are the minimum computer-system requirements for ATOM with Studio One 4 or later:

Mac

Mac® OS X 10.11 or higher (64-bit only)
Intel® Core® 2 Duo processor (Intel Core i3 or better recommended)

Windows

Windows® 7 (SP1 + platform update), Windows 8.1, or Windows 10 (64-bit only)
Intel Core Duo or AMD® Athlon™ X2 processor (Intel Core 2 Duo or AMD Athlon X4 or better recommended)

Mac and Windows Systems

4 GB RAM (8 GB or more recommended)
USB 2.0 port
Internet connection (needed for software installation and activation)
Monitor with 1366 x 768 resolution (high-dpi monitor recommended)
40 GB hard-drive space
Universal Control 2.9 or later (for firmware updates)
Studio One 4.1+ required for native integration

ATOM Technical Specifications

Input

Connection Type: USB 2.0 (bus-powered)

Pads, Buttons, and Knobs:

16 full-size velocity- and pressure-sensitive, RGB LED pads
20 assignable buttons
4 endless rotary knobs
1 Setup button

Dimensions

Height: 0.82” (20.75 mm)
Depth: 7.68” (195 mm)
Width: 7.95” (202 mm)
Weight: 1 lb. (0.45 kg)

AudioBox USB 96 Technical Specifications

Microphone Preamp

Type: XLR Female Balanced
Frequency Response (±3.0 dB): 20 Hz to 20 kHz
Input Impedance (Balanced): 1200Ω
THD+N (unwtd, 1 kHz @ +4 dBu Output, Unity Gain): < 0.008%
S/N Ratio (Unity Gain, Ref. = +4 dBu, 20 Hz to 22 kHz): > 95 dB
Common Mode Rejection Ratio (1 kHz, 55 dB Gain): > 45 dB
Gain Control Range (± 1 dB): 0 dB to 35 dB
Max Input Level (Unity Gain, 1 kHz @ 0.5% THD+N): -3 dBu
Phantom Power (±2 VDC): +48 VDC

Instrument Input

Type: ¼" TS Female Unbalanced
Input Impedance: 0.5 MΩ

Line Outputs

Type: ¼" Balanced
Output Impedance: 51Ω

Headphone Output

Type: ¼" TRS Active Stereo
Maximum Output: 60 mW/Ch @ 60Ω Load
Frequency Response: (±1.0 dB) 20 Hz - 30 kHz

MIDI I/O

Type Dual: 5-pin Female DIN

Digital Audio

ADC Dynamic Range (A-wtd, 48 kHz Sample Rate): 105 dB
DAC Dynamic Range (A-wtd, 48 kHz Sample Rate): 105 dB
Bit Depth: 24
Reference Level for 0 dBFS: +4 dBu
Internal Sample Frequency Selections (kHz): 44.1, 48, 88.2, 96
Power: USB 2.0 bus-powered

Physical

Dimensions: 1/3U (steel chassis)
Height: 5.5” (139.7 mm)
Depth: 1.75" (44.45 mm)
Width: 5.5” (139.7 mm)
Weight: 5 lbs (2.27 kg)

M7 Microphone Specifications

General

Type: Large-diaphragm condenser microphone
Element: Electret
Polar Pattern: Cardioid
Frequency Response: 40 Hz - 18 kHz
Sensitivity: -39 dBV/pa (12.2 mV/pa)
Rated Impedance: 200Ω
Equivalent Input Noise (EIN): 20 dB
Maximum SPL: 136 dB SPL
Phantom Power Required: +12 to +52 VDC, 3 mA
S/N Ratio: 74 dB
Dynamic Range: 11 dB
Current Consumption: 3.5 mA
