EVENT System Package — 8× EVENT-28A + 4× EVENT-118A with Covers & Castors

Name: DAS EVENT28a & EVENT118A 8x4 System
Brand: DAS Audio
SKU: DASEVENT28A8x4pack
Price: 39243.94 USD
Availability: InStock

Configured 4-per-side array with 2 subs per side · Power and rigging not included

Compact, powered line array solution for touring and installs. Eight EVENT-28A dual-8″ elements provide 100° horizontal coverage and high output per cabinet. Four EVENT-118A powered 18″ subwoofers deliver tight, musical low end and integrate mechanically with the tops. Package includes factory protective covers and castor boards for efficient load-in/out. Suitable for live bands, DJs, houses of worship, corporate AV, and civic events that need clear vocals, even coverage, and controlled low-frequency impact.

System Makeup

8× EVENT-28A (4 per side) · 4× EVENT-118A (2 per side)

Estimated Audience

~600–1,000 people, venue dependent (indoor ≈ upper range; outdoor ≈ lower range). Use prediction software for final design.

Horizontal Coverage

100° nominal (per element)

Max SPL Reference

EVENT-28A up to 133 dB peak per cabinet; EVENT-118A up to ~134 dB peak (at 1 m)

Key Features

Powered, FIR-processed line array for fast deployment
4× EVENT-28A per side builds coherent vertical coverage
2× EVENT-118A per side extends low end with tight punch
Integrated rigging for flown or ground-stacked setups

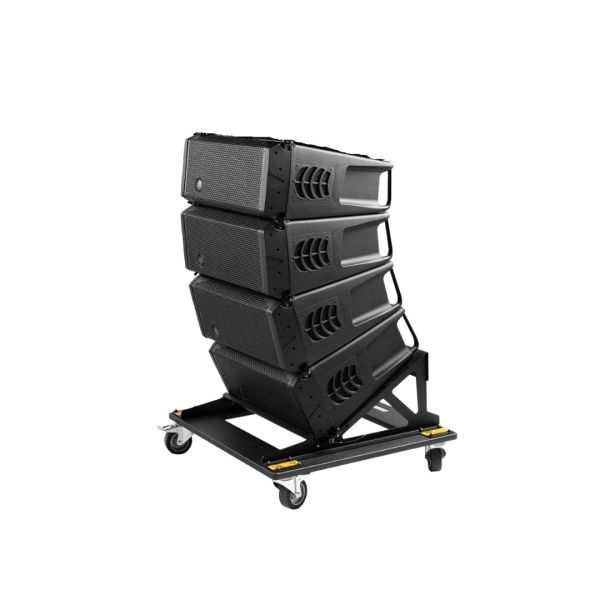

Protective covers and castor boards included for transport
Scales with additional elements if larger coverage is required

Component Specifications

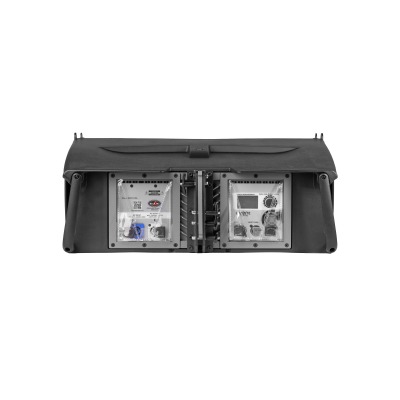

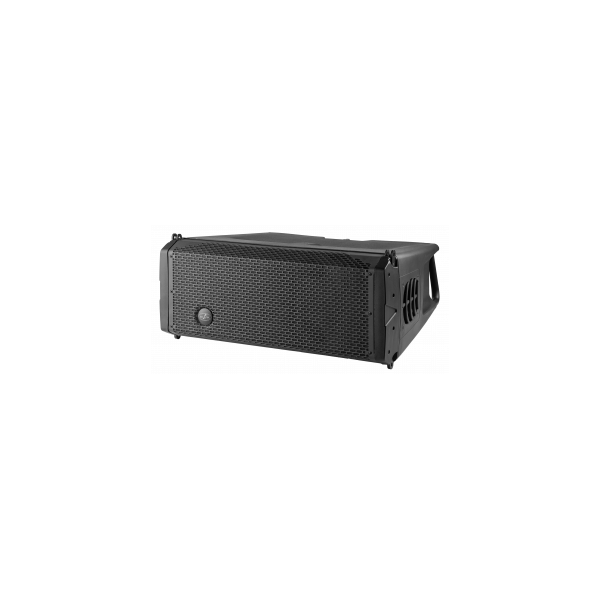

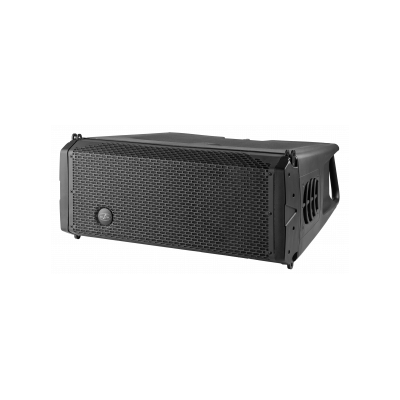

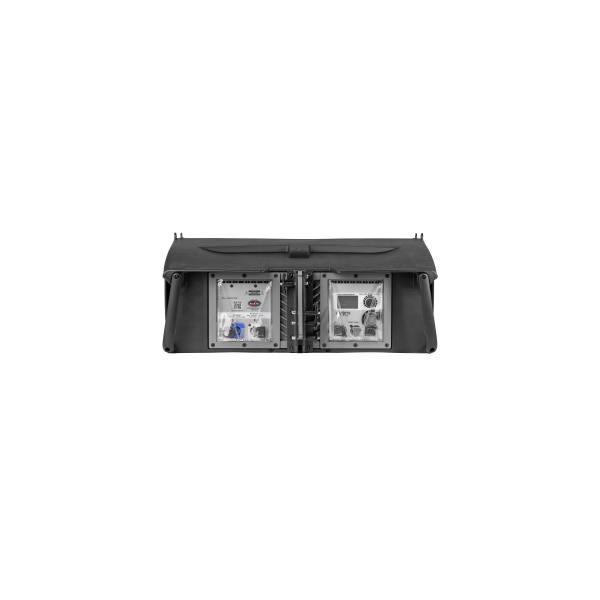

EVENT-28A Line Array Element (per cabinet)

Drivers

2× 8″ LF (neodymium) + M-60 HF

Amplification

Class-D, bi-amped

Max SPL

Up to 133 dB peak @1 m

Bandwidth

Approx. 70 Hz–20 kHz

Dispersion

100° H × 10° V (nominal)

Weight

~20.5 kg (45 lb)

Enclosure

Polypropylene, captive rigging

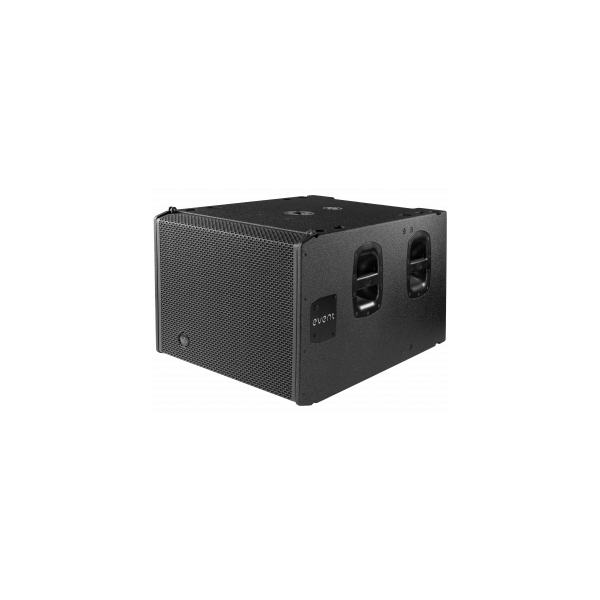

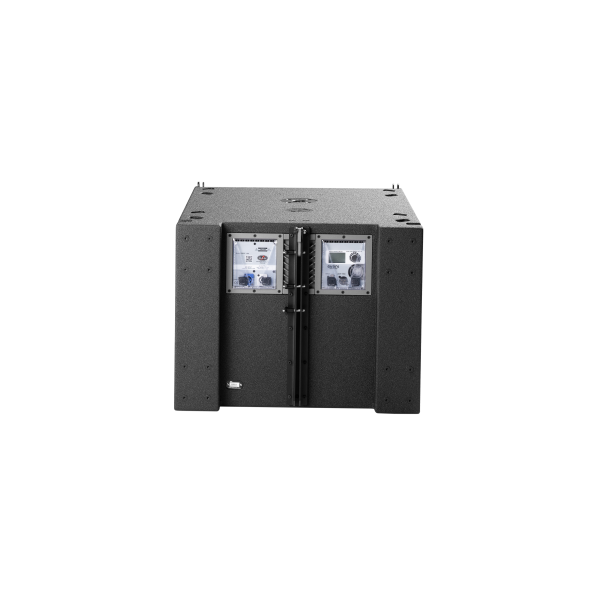

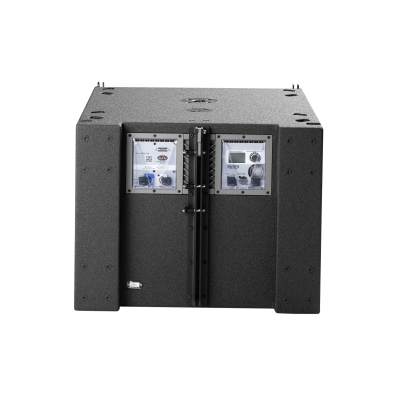

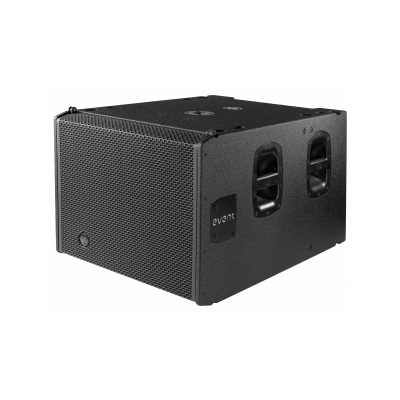

EVENT-118A Subwoofer (per cabinet)

Driver

Front-loaded 18″ (18FWN, 3″ VCD)

Amplification

Powered, Class-D

Max SPL

Approx. 134 dB peak @1 m

LF Range

~35–125 Hz (-10 dB)

Integration

Mechanical compatibility with EVENT-28A for flown or stacked arrays

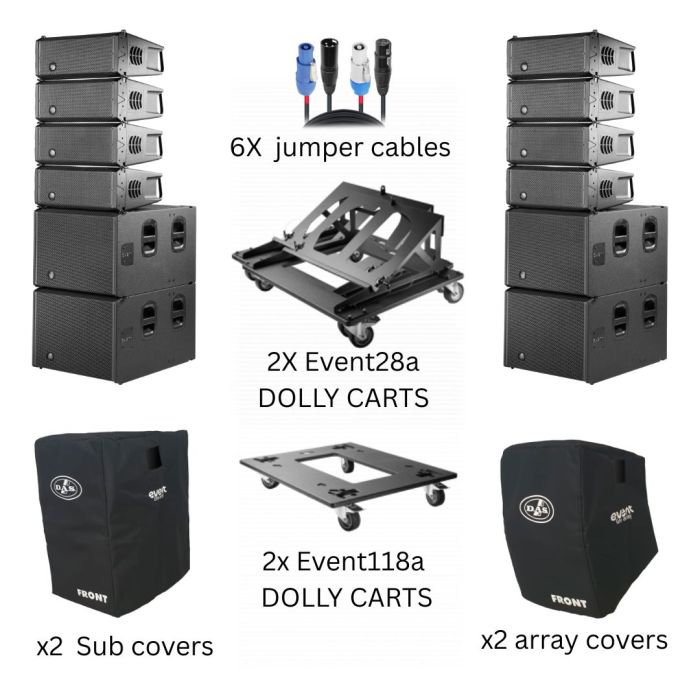

Included in This Package

8× DAS EVENT-28A powered line array elements
4× DAS EVENT-118A powered 18″ subwoofers
Protective covers for all cabinets
Castor boards/dollies for subs for transport

Rigging hardware, poles, power cabling, networking, and suspension accessories sold separately unless otherwise specified.

Audience capacity varies with target SPL, program material, venue geometry, trim height, and splay. Use prediction tools and on-site measurement to finalize coverage and safety. For wide rooms, consider front fills and delays.
