Yamaha NY64-D Dante Expansion Card - 64??64 I/O for TF Series
$524.99
Pickup is available in 1 stores
iHomiLA
821 S Los Angeles St, Los Angeles, 90014
United States
Pickup available
3
pcs
In stock
Yamaha
Yamaha NY64-D Dante Expansion Card - 64??64 I/O for TF Series
Item #: YANY64D | UPC:

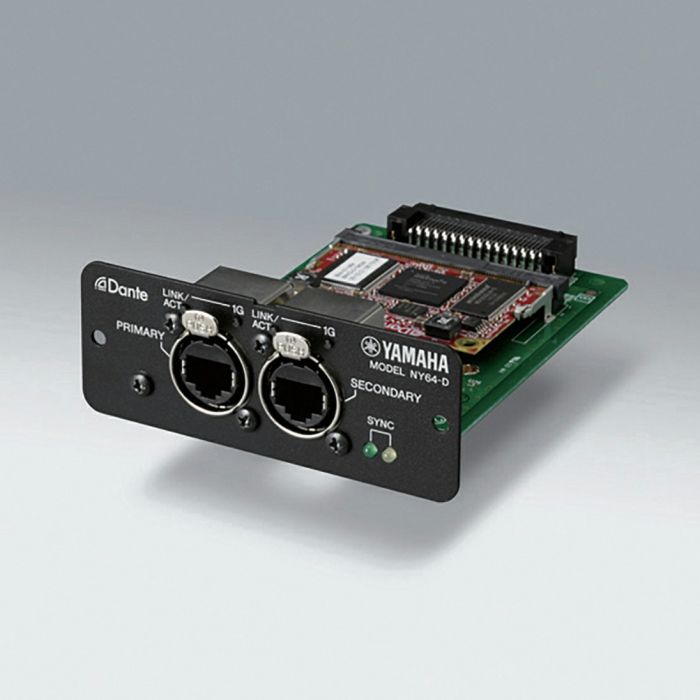

The Yamaha NY64-D card expands TF series consoles with Dante networking. It provides 64 inputs and 64 outputs of uncompressed 48 kHz/24-bit audio, enabling multi-room audio distribution and digital stage boxes without cumbersome analog snakes. When paired with a Tio1608-D I/O rack, the NY64-D supports stage box setups with up to 48 inputs and 24 outputs. Its primary and secondary Dante ports allow redundant network connections for reliability, and installation is as simple as sliding the card into the expansion slot.
Key Features
- I/O expansion card for TF series consoles (TF3, TF5 and TF-RACK)
- Transmits and receives up to 128 channels (64 in/64 out) of uncompressed 48 kHz/24-bit digital audio via Dante network
- Enables stage box setups with Tio1608-D for up to 48 inputs and 24 outputs

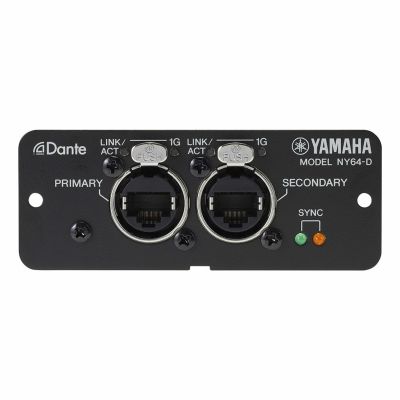

- Primary and secondary Dante ports provide redundant network connections
- Supports daisy-chaining and flexible audio routing over standard Ethernet cables
- Plug-and-play installation into TF console expansion slot
Specifications
Compatibility
TF Series digital mixing consoles
Channels
64 inputs and 64 outputs (128 channels total)
Sampling Frequency
48 kHz
Bit Depth
24 bit
Network Interface
Dante audio over RJ45 Ethernet
Stage Box Support
Works with Tio1608-D for up to 48 in/24 out
Product Gallery
Related Keywords:
Yamaha NY64-D, Dante expansion card, TF series, 64x64 I/O, digital audio networking
| In-Store Pickup | Yes |
|---|---|
| UPC | 889025101462 |
| Stock Last | 3 |
