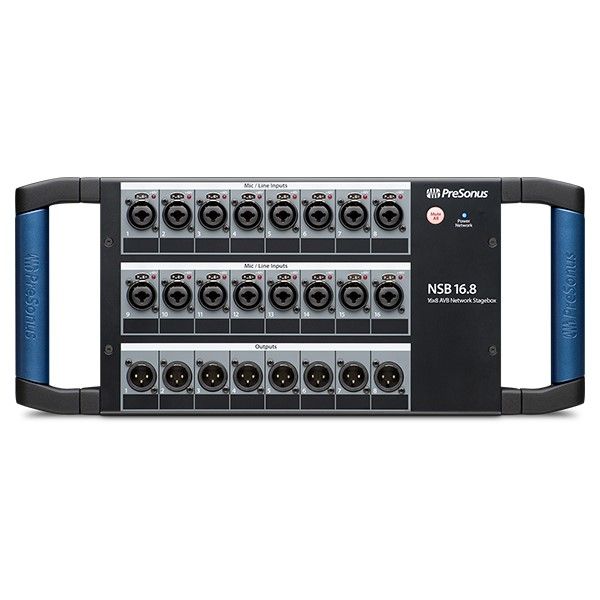

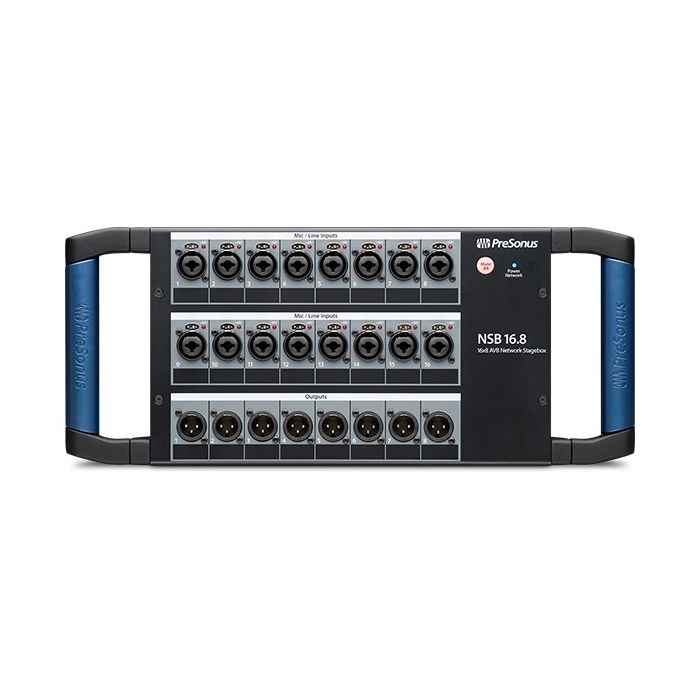

PreSonus NSB 16.8
PreSonus NSB 16.8: 16x8 AVB-networked stage box
PreSonus NSB 16.8: 16x8 AVB-networked stage box
Features
- 16x8 network stage box for StudioLive Series III console mixers
- 16 digitally controlled XMAX mic/line inputs with gain compensation for shared streams
- 8 line outputs
- Easy configuration from StudioLive Series III console mixers and UC Surface
- Built-in 2-port AVB switch with locking Ethernet connections for easy point-to-point and daisy-chain network configurations
- Rugged all-metal stage box enclosure

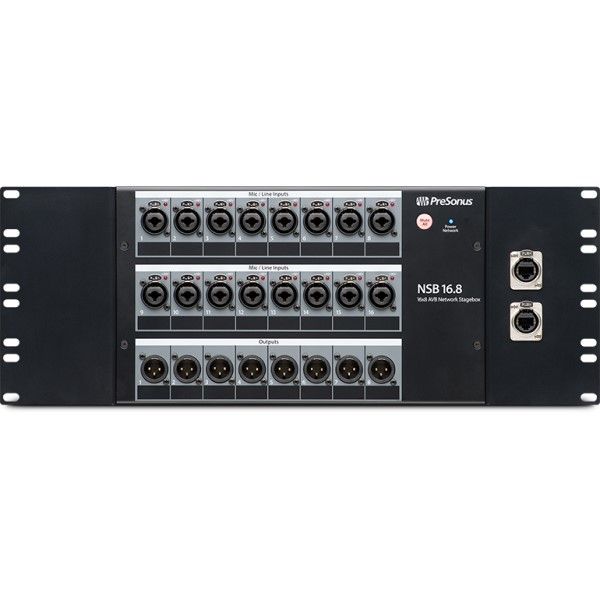

- Optional rack ears
- Compatible with stage pockets from Ace Backstage
Microphone Preamplifier
Input Type: XLR Female, balanced
Frequency Response to Main Output (at unity gain): 20-20 kHz, ±0.5 dBu
Input Impedance: 1 kΩ
THD to Main Output: <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd
S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd): 94 dB
Common Mode Rejection Ratio (1 kHz at unity gain): 65 dB
Gain Control Range (±1 dB): 0 dB to +60 dB
Maximum Input Level (unity gain): +12 dBu
Phantom Power (±2 VDC): 48 VDC, switchable per channel
Line Inputs
Type: ¼” TRS Female, balanced
Frequency Response to Main Output (at unity gain): 20-20 kHz, ±0.5 dBu
Input Impedance: 10 kΩ
THD to Main Output: <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd
S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd): 94 dB
Maximum Input Level: +18 dBu
XLR Outputs
Type: XLR Male, balanced
Maximum Output Level: +24 dBu, ±0.5 dBu
Output Impedance: 100Ω
Digital Audio
ADC Dynamic Range: 115 dB (A-wtd, 48 kHz)
DAC Dynamic Range: 115 dB (A-wtd, 48 kHz)

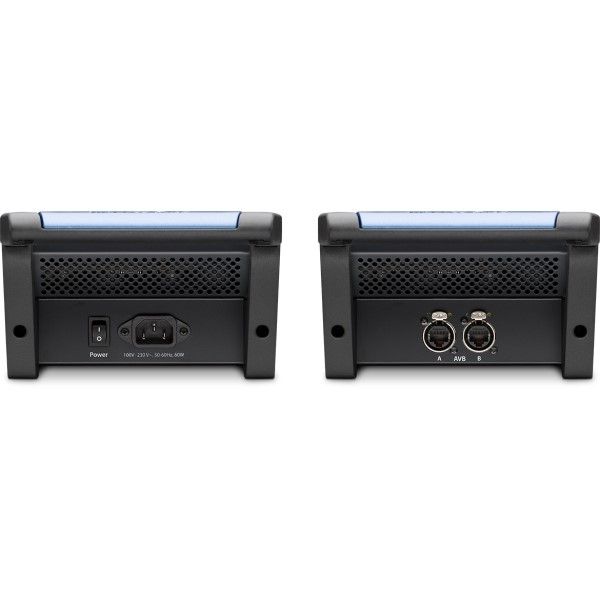

AVB Audio Network Ports: Locking XLR Ethernet
Sampling Rate: 48 kHz, 44.1 kHz
Power
Connector: Locking IEC
Input-Voltage Range: 90 to 230 VAC (±10%)
Physical
Height: 7” (178 mm)
Width: 16.7” (424 mm)
Depth: 4.5” (114 mm)
Weight: 6.2 lbs. (2.8 kg)
| UPC | 673454006487 |
|---|
