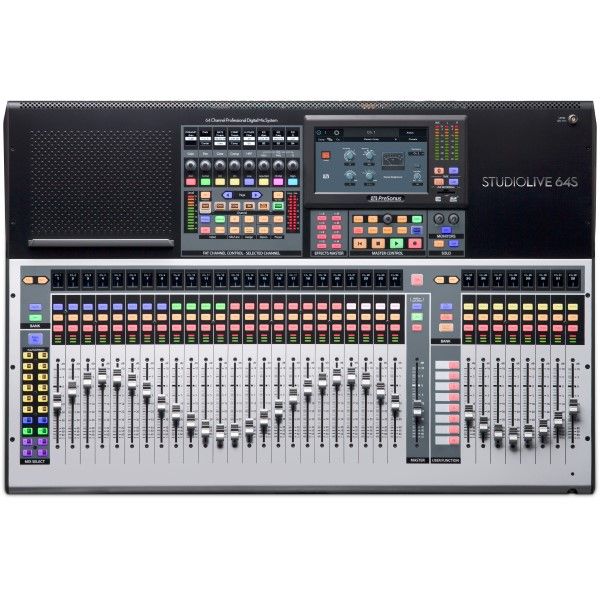

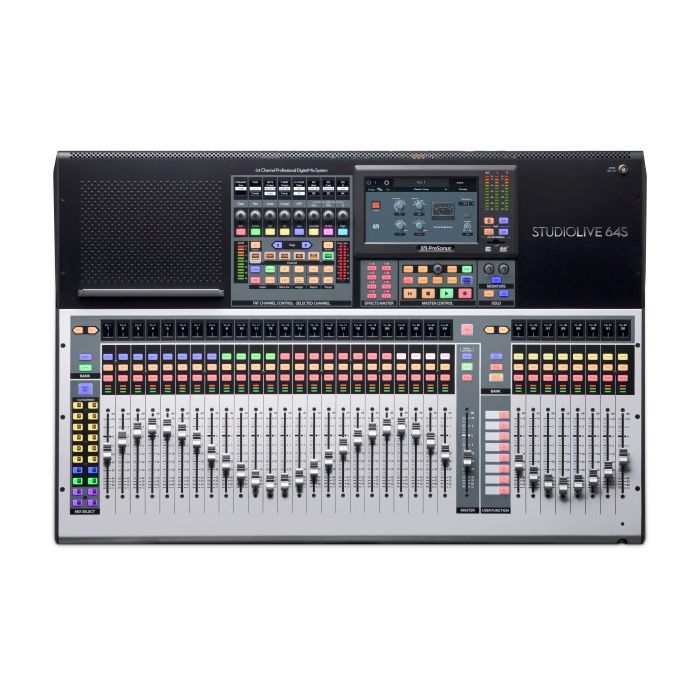

PreSonus StudioLive 64S Series III
StudioLive® 64S: 64-channel digital mixer and USB audio interface
StudioLive® 64S: 64-channel digital mixer and USB audio interface
Features
- Powered by the new quad-core PreSonus FLEX DSP Engine to provide the most processing of any digital mixer in its class
- 76 input-channel digital mixer with 33 touch-sensitive motorized faders
- 64 channels (individually sourced from any of the 32 local digitally controlled XMAX mic/line inputs or any AVB, USB, or SD input)
- 2 balanced stereo aux inputs
- 1 stereo tape input (RCA, Bluetooth™ connectivity, USB, AVB or SD)
- 8 FLEX FX returns
- 1 Talkback
- 43 mix buses
- 32 FlexMixes (Aux, Subgroup, Matrix)
- 8 dedicated FLEX FX buses
- Stereo Main bus
- Main Mono/Center bus with per-channel level send and Center Divergence
- 526 simultaneous processors
- HPF
- Gate / Expander
- Compressor with Fat Channel plug-in models
- 4-band/6-band parametric EQ with Fat Channel plug-in models
- Limiter
- 31-band Graphic EQ
- 8 FLEX FX slots featuring legendary classic reverb emulations and delays
- State Space-Modeled Fat Channel compressor and EQ plug-ins available on every input channel and output bus
- FLEX FX multi-effects processor with 8 slots to load legendary reverb emulations and delays with 8 dedicated effects buses
- 24 DCAs to control groups of channels
- 128-channel (64x64) recording over USB
- Onboard multi-channel SD recorder (34x34) with true Virtual Soundcheck mode
- AVB Networking onboard (64x64) to connect with other mixers, NSB-series stage boxes, EarMix 16M personal monitor mixers and more
- User Profiles for managing multiple operators with custom permissions
- Per channel digital patching from any analog, AVB, USB, or SD Card source
- DAW Control
- Advanced Studio One control integration
- MCU emulation mode optimized for Logic
- HUI emulation mode optimized for Pro Tools
- Remote control every mix function from your computer, iPad, or Android tablet with UC Surface (included)
- Put your musicians’ monitor mix under their fingers with QMix-UC (included) for iOS or Android
- Capture multitrack software included
- Automated Virtual Soundcheck
- Store StudioLive mix scenes with your audio
- Advanced Studio One integration (Studio One Artist Included)
- XMAX mic preamp control from Studio One
- Control Fat Channel parameters from Studio One mixing console
Computer system requirements:
Below are the minimum computer-system requirements for UC Surface, QMix®-UC, and Studio One®.
Mac
- macOS® 10.13 or higher (64-bit only)
- Intel® Core™ i3 or better
- Minimum 4 GB RAM (8 GB or more recommended)
Windows
- Windows® 10 (64-bit only)
- Intel Core i3 or better
- Minimum 4 GB RAM (8 GB or more recommended)
Mac and Windows Systems
- USB 2.0 port
- Internet connection
- Internal or external 7200 RPM storage drive highly recommended
- 30 GB hard disk space
- Monitor with 1366x768 resolution
iOS
- iOS 10 or later
- iPad Pro, iPad Air 2, iPad Air, iPad mini 4, iPad mini with Retina display, iPad (4th generation)
Android
- Android™ 6.0 (Marshmallow) or later
- Android smartphone (QMix-UC)
- Android tablet (8-inch) with 1024x768 resolution (UC Surface)
Technical Specifications
Microphone Preamplifier
Input Type: XLR Female, balanced
Frequency Response to Main Output (at unity gain): 20-20 kHz, ±0.5 dBu
Input Impedance: 1 kΩ
THD to Main Output: <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd
S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd): 94 dB
Common Mode Rejection Ratio (1 kHz at unity gain): 65 dB
Gain Control Range (±1 dB): 0 dB to +60 dB
Maximum Input Level (unity gain): +12 dBu
Phantom Power (±2 VDC): 48 VDC, switchable per channel
Line Inputs
Type: ¼” TRS Female, balanced
Frequency Response to Main Output (at unity gain): 20-20 kHz, ±0.5 dBu
Input Impedance: 10 kΩ
THD to Main Output: <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd
S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd): 94 dB
Maximum Input Level: +18 dBu
Tape Inputs
Type: RCA Female, unbalanced (stereo pair)
Maximum Input Level: +12 dBu, ±0.5 dBu
XLR Outputs
Type: XLR Male, balanced
Maximum Output Level: +24 dBu, ±0.5 dBu
Output Impedance: 100Ω
Line Outputs
Type: ¼” TRS Female, balanced
Maximum Output Level: +18 dBu, ±0.5 dBu
Output Impedance: 100Ω
Tape Outputs
Type: RCA Female, unbalanced (stereo pair)
Maximum Output Level: +18 dBu, ±0.5 dBu
Output Impedance: 100Ω
Headphone Output
Type: ¼” TRS Female, active stereo
Maximum Output: 100 mW/ch. @ 60Ω load
Frequency Response: 20 Hz – 20 kHz (± 0.5 dB)
THD+N: 0.01%, 1 kHz, max gain, 20 Hz BW, unwtd
S/N Ratio: 96 dB, 1 kHz, max gain, 20 Hz BW, unwtd
System Crosstalk
Input to Output: -90 dB (Ref = +4 dBu, 20 Hz-20 kHz, unwtd)
Adjacent Channels: -87 dB (Ref = +4 dBu, 20 Hz-20 kHz, unwtd)
Digital Audio and Control
ADC Dynamic Range: 115 dB (A-wtd, 48 kHz)
DAC Dynamic Range: 115 dB (A-wtd, 48 kHz)
USB Recording Port: USB 2.0, Type-B
Bluetooth™ Input: 4.1, stereo
AES/EBU Output: XLR Male
Network Control Port: RJ-45
AVB Audio Network Port: Locking XLR Ethernet
Internal Processing: 32-bit, floating point
Sampling Rate: 48 kHz, 44.1 kHz
A/D/A Bit Depth: 24
Reference Level for 0 dBFS: +18 dBu
Total System Latency: 1.9 ms (local routing, analog in-analog out, all processing active)
Clock
Jitter: <20 ps RMS (20 Hz - 20 kHz)
Jitter Attenuation: >60 dB (1 ns in, 1 ps out)
Power / Environmental
Connector: IEC
Input-Voltage Range: 90 to 230 VAC (±10%)
Power Requirements (continuous): 85W
Recommended Ambient Operating Temperature: 0˚ to 40˚ Celsius / 32˚ to 104˚ Fahrenheit
Physical
Height: 6.51” (165.36 mm)
Width: 32.37” (822.21 mm)
Depth: 22.97” (583.48 mm)
Weight: 37.2 lbs. (16.9 kg)
