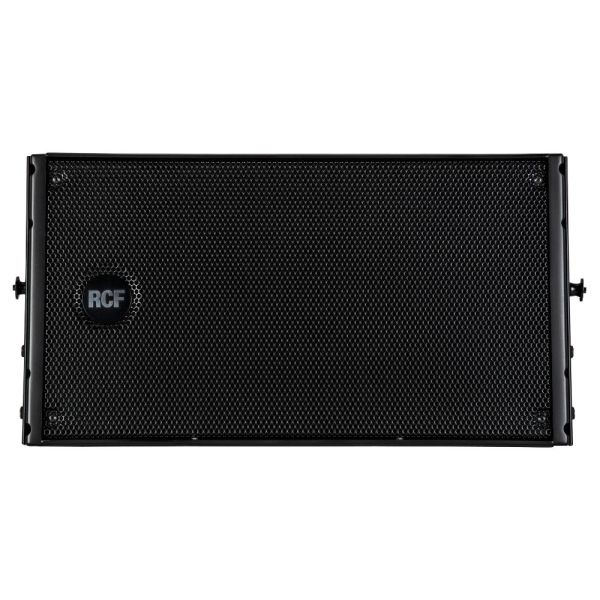

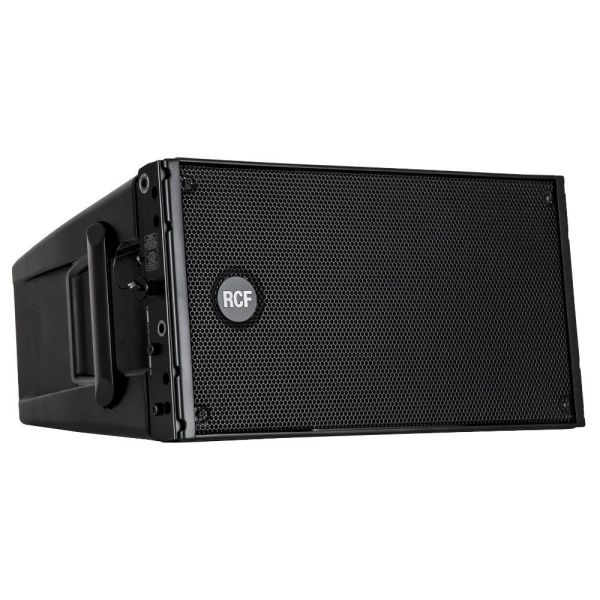

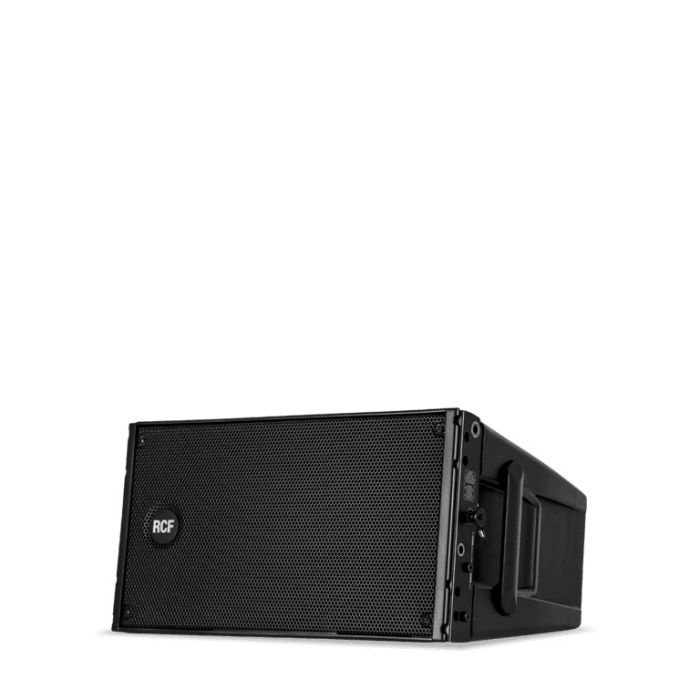

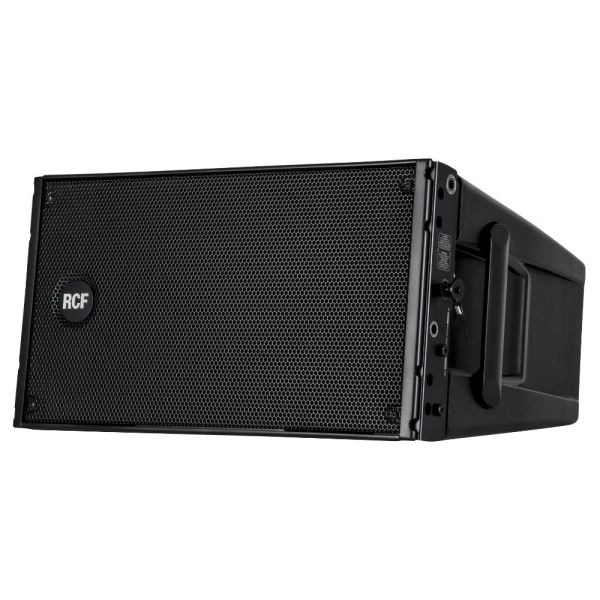

RCF HDL 10-A ACTIVE LINE ARRAY MODULE

FEATURES

• 1400 Watt Peak power - 700 Watt RMS
• 133 dB max SPL
• 65 Hz 20 kHz frequency response
• 2 x 8" Woofers
• 1 x 2" Compression Driver

DSP controlled Input section with selectable presets Tour grade safe and solid variable mechanics Composite PP enclosure structurally wooden reinforced The very compact size, no compromise transducers and a unique composite cabinet design make the HDL 10-A the perfect tool in many situations. Ideal in live sound reinforcement and reliable installed situations. The HDL 10-A is the ideal choice when line array performance is needed and a fast and easy set up is a must. The system is powered from a 1400 Watt Peak Power 2 way digital amplifier, sound is processed from a powerful DSP. The HDL 15-AS is the ideal flyable bass complement for the HDL 10-A array system.

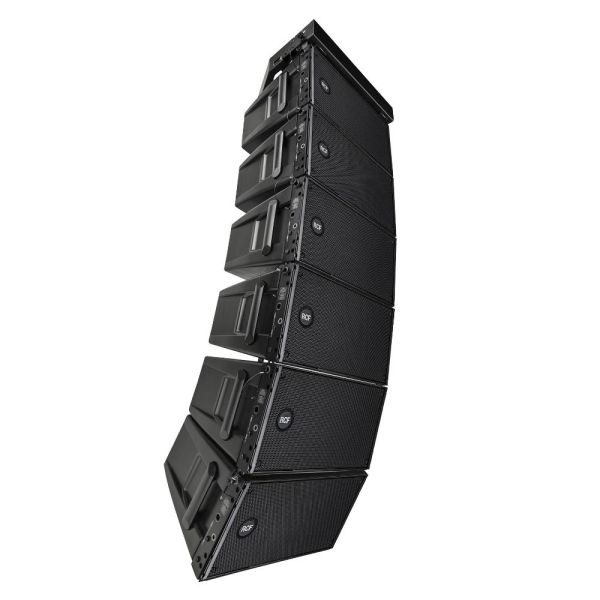

Tour sound in a compact size
The HDL 10-A is a true active and high power ready to use touring system equipped with a high efficiency Class-D amplifier that delivers superior SPL reducing energy requirement. The integrated processing and the cabling reduction will make the set-up faster and easier and, thanks to its compact size, the truck space requirement is reduced to the minimum.

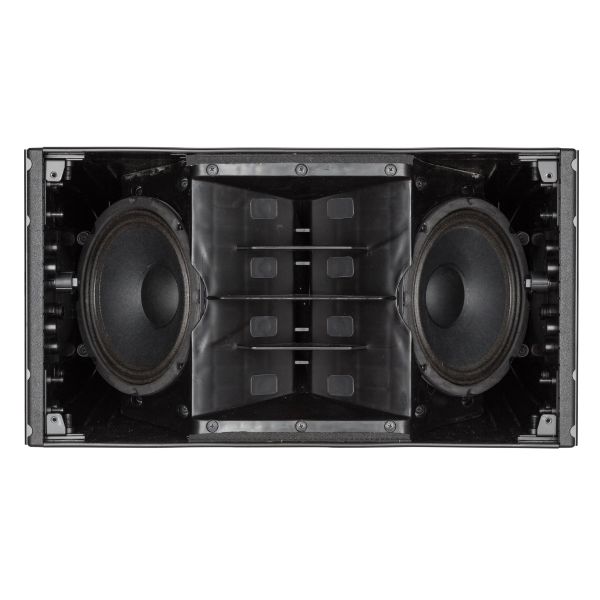

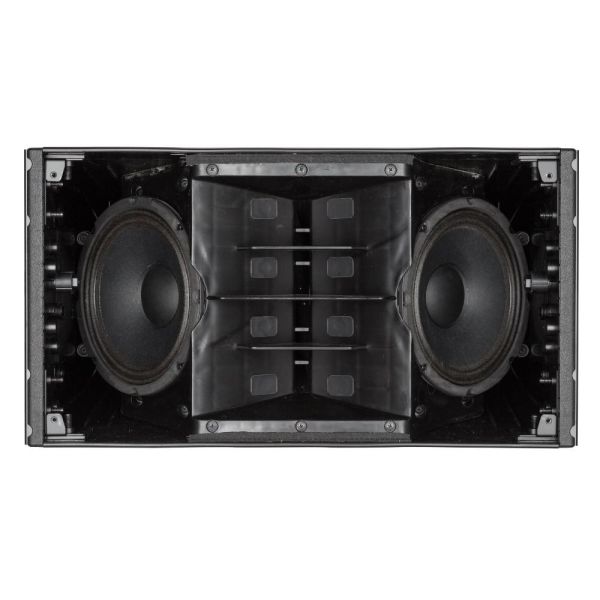

RCF precision transducers
High frequencies - The ND640 large format compression driver delivers one of the key advantages of the HDL 10-A, the 2.5” voice coil allows a crossover point of 800Hz and therefore almost all of the vocal range can be produced by this driver. This allows better coverage and dispersion control, and superior efficiency.

• Low frequencies - High power woofers. Very high efficient and controlled bass reproduction.
• 2 X 8" Woofers, 2.0" Inside-Outside voice coil
• Water resistant fibre doped cone
• Polycotton M-roll surround
• High power magnetic structure

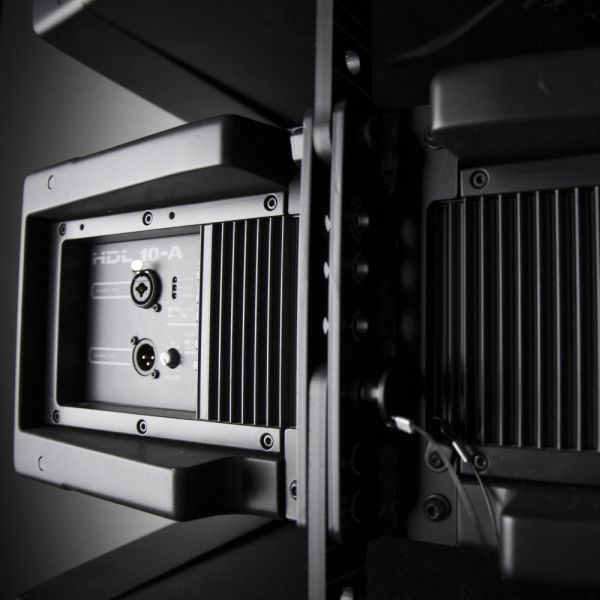

Powerful class D amplifiers
RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. HDL amplifiers deliver a ultra-fast attack, realistic transient response, and impressive audio performance. The amplifier features a solid machined aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the HDL amplifiers present SMPS power supply section to produce maximum output and minimum weight.

SPECIFICATIONS
ACOUSTICAL SPECIFICATIONS
Frequency Response:
65 Hz ÷ 20000 Hz
Max SPL @ 1m:
133 dB
Horizontal coverage angle:
100°
Vertical coverage angle:
15°
TRANSDUCERS
Compression Driver:
1 x 2.0'', 2.5'' v.c
Woofer:
2 x 8'', 2.0'' v.c

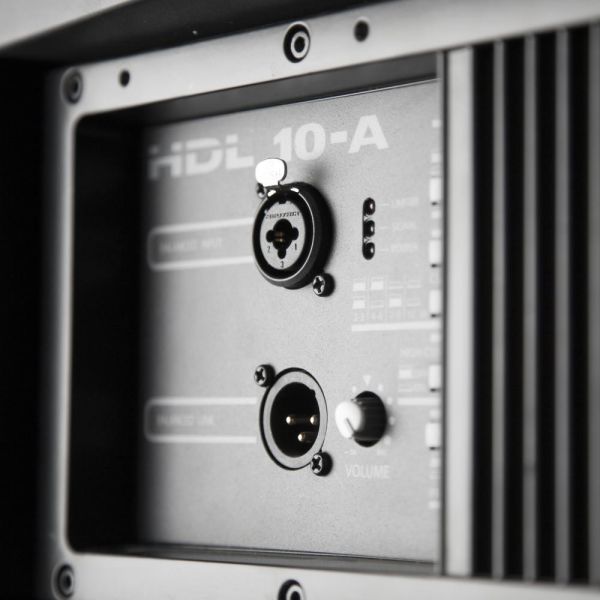

INPUT/OUTPUT SECTION
Input signal:
bal/unbal
Input connectors:
XLR
Output connectors:
XLR
Input sensitivity:
-2 dBu/+4 dBu
PROCESSOR SECTION
Crossover Frequencies:
800 Hz
Protections:
Thermal, RMS
Limiter:
Soft Limiter

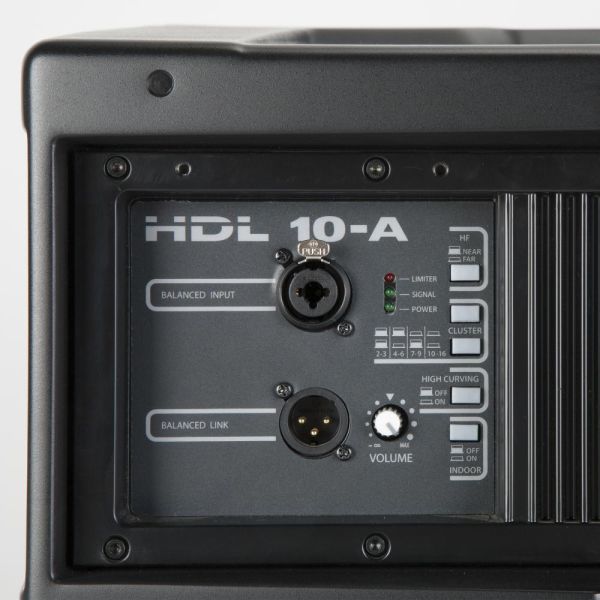

Controls:
Cluster, HF, High curving, Indoor
POWER SECTION
Total Power:
1400 W Peak, 700 W RMS
High frequencies:
400 W Peak, 200 W RMS
Low frequencies:
1000 W Peak, 500 W RMS
Cooling:
Convection

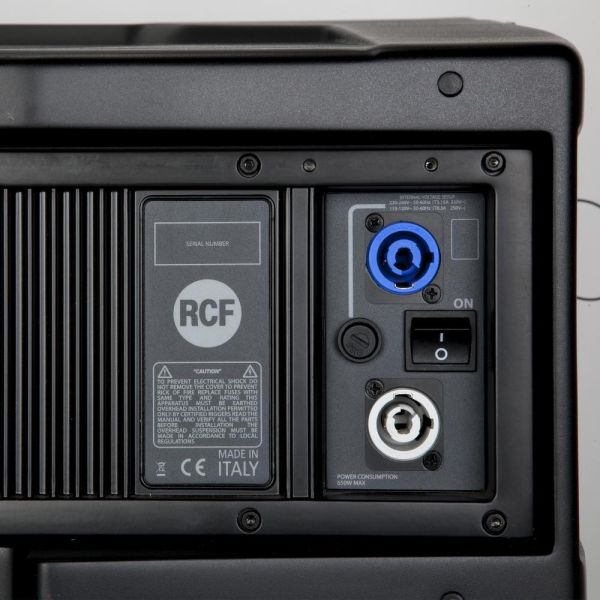

Connections:
Powercon IN/OUT
PHYSICAL SPECIFICATIONS
Cabinet/Case Material:
PP Composite
Hardware:
Rigging flyware

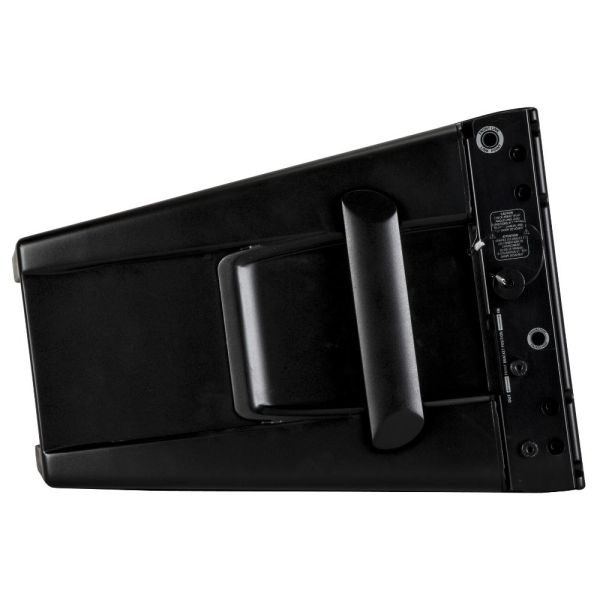

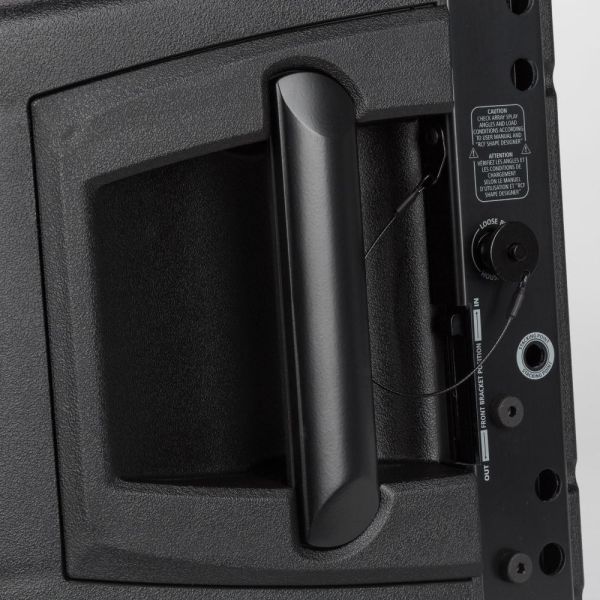

Handles:
2 side
Grille:
Steel
Color:
Black, White
SIZE
Height:
294 mm / 11.57 inches
Width:
569 mm / 22.4 inches
Depth:
434 mm / 17.09 inches
Weight:
20.4 kg / 44.97 lbs
SHIPPING INFORMATION
Package Height:
375 mm / 14.76 inches
Package Width:
650 mm / 25.59 inches
Package Depth:
500 mm / 19.69 inches
Package Weight:
23 kg / 50.71 lbs
