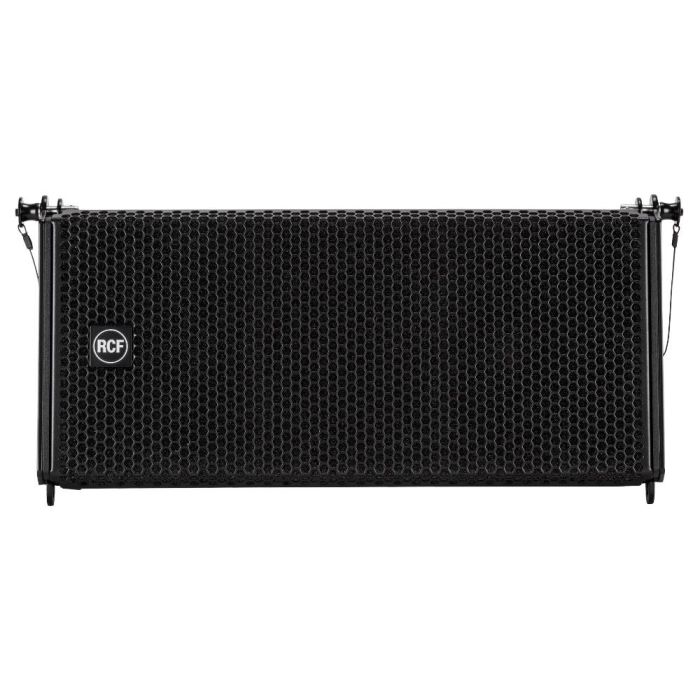

RCF HDL6-A 1400-watt 6-inch Compact Active Line Array Module - Black 1,400W Powered Line Array

SKU
HDL6A
$1,799.00
In stock

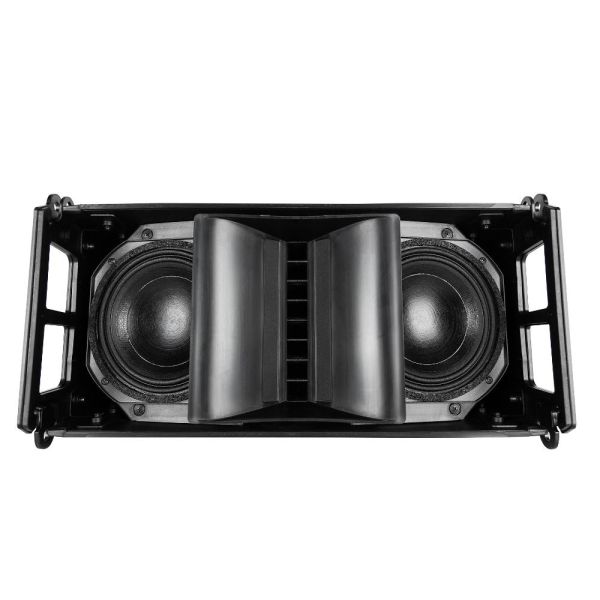

-1400 W, two-way amplification -131 dB max SPL -1.7" voice coil neodymium compression driver -2 x high power neodymium 6.0"woofers -48 kHz, 32 bit floating point DSP processing -Symmetrical design -Extremely low weight -FiRPHASE processing The HDL6-A is the ideal choice when line array performance is needed and a fast and easy set-up a must. A 1400 W 2-channel class-D amplifier powers the system. A powerful DSP processes the sound including crossover, phase correction, limiting and protection. The system features state-of-the-art RCF transducers – two powerful 6.0” woofers for a solid bass reproduction plus a high powered 1.7” voice coil compression driver mounted on a precise 100° x 10° waveguide delivers vocal clarity with high definition and an incredible dynamic. The HDL 12-AS is the ideal flyable bass complement for the HDL 6-A array system.
View Pickup Points
Pickup is available in 1 stores

iHomiLA

821 S Los Angeles St, Los Angeles, 90014

United States

Pickup available

10 pcs
In stock
Acoustical specifications
Frequency Response
65 Hz ÷ 20000 Hz
Max SPL @ 1m
131 dB
Horizontal coverage angle
100°
Vertical coverage angle
10°
Transducers
Compression Driver
1 x 1.0'' neo, 1.75'' v.c
Woofer
2 x 6.0'' neo, 2.0'' v.c

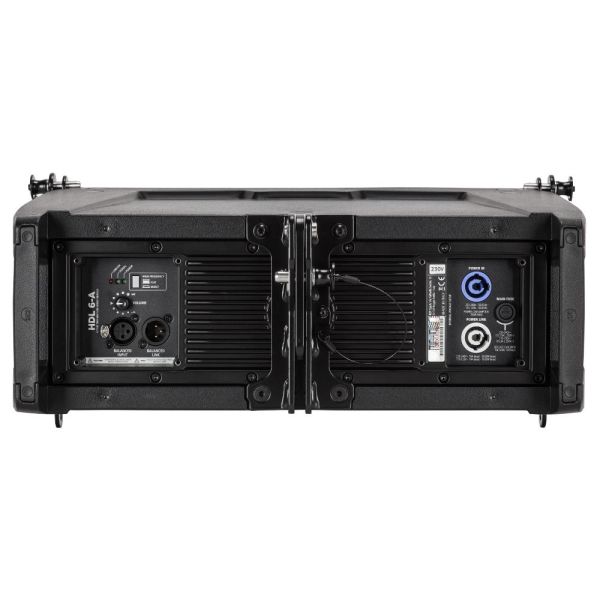

Input/Output section
Input signal
bal/unbal
Input connectors
XLR
Output connectors
XLR
Input sensitivity
+4 dBu
Processor section
Crossover Frequencies
900 Hz
Protections
Thermal, RMS
Limiter
Soft Limiter
Controls
HF correction
Power section
Total Power
1400 W Peak, 700 W RMS
High frequencies
400 W Peak, 200 W RMS
Low frequencies
1000 W Peak, 500 W RMS
Cooling
Convection
Connections
Powercon IN/OUT
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
PP Composite
Hardware

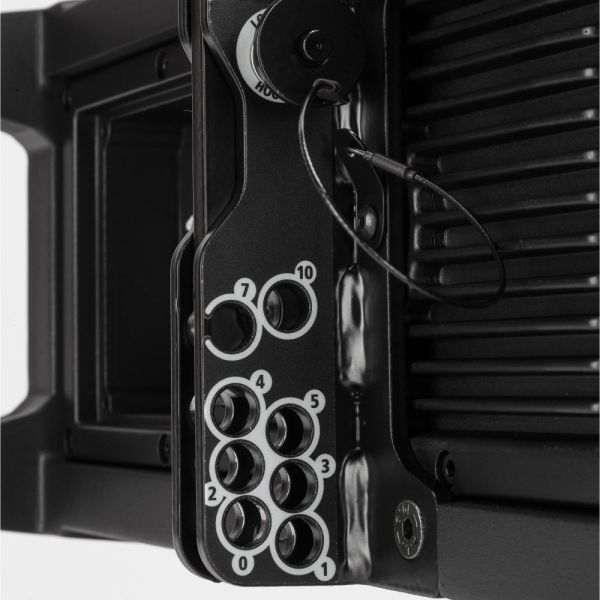

Array fittings
Handles
2 Back
Grille
Steel
Color
Black, White
Size / Weight
Height
237 mm / 9.33 inches
Width
470 mm / 18.5 inches
Depth
377 mm / 14.84 inches
Weight
11.6 kg / 25.57 lbs
More Information
Drop Shipping No
UPC 8024530014483
Stock Last 10
