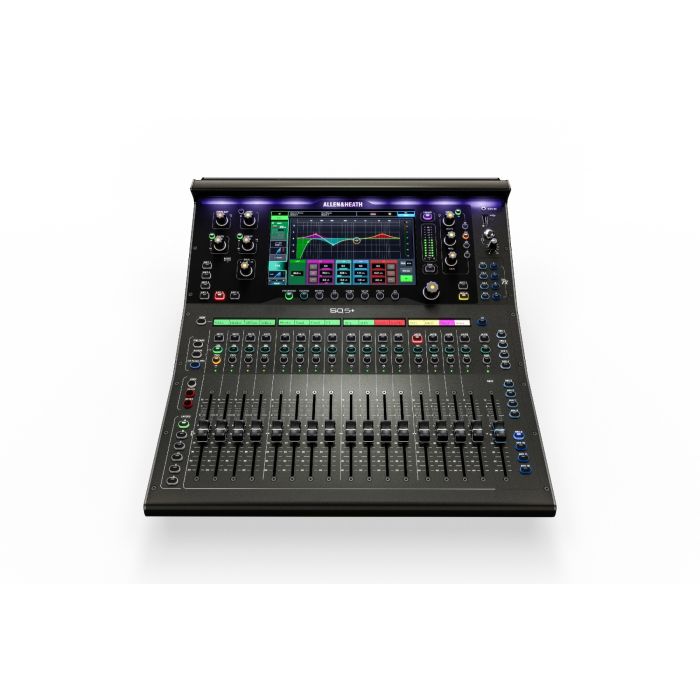

Allen & Heath SQ5+ RackUltra FX Enabled 48-channel Digital Mixer with DEEP Processing

Skip to the beginning of the images gallery

Details

More Information

Reviews

Questions

Allen & Heath

SQ5+ RackUltra FX Enabled 48-channel Digital Mixer with DEEP Processing

Item #: AH-SQ-5-PLUS | UPC: 5056756902582

Watch the Allen & Heath SQ+ Series overview and feature demonstration.

The Allen & Heath SQ5+ is a compact 48-input digital mixer built around a 96kHz XCVI core for ultra-low latency, phase-coherent mixing, and professional-grade audio performance. Designed for owner-operators, mid-sized venues, small tours, houses of worship, studios, and production environments, it delivers clear tone, strong projection through live sound systems, and responsive hands-on control. The SQ5+ enhances the proven SQ-5 platform with additional processing power, a larger 9" capacitive touchscreen, an updated graphical interface, and a refined carbon-on-graphite control surface. With 17 motorized faders, six customizable channel-strip layers, onboard FX, RackUltra FX engines, DEEP processing capability, and flexible local and network I/O, the SQ5+ gives engineers a powerful balance of portability, build quality, and mix control for both stage and studio workflows.

Key Features

48-input channel digital mixing powered by a 96kHz XCVI core for low latency and phase-coherent audio
Includes 4 RackUltra FX engines with dedicated send and return channels
Supports the latest DEEP channel processing for expanded tonal control
Large 9" capacitive touchscreen with reimagined SQ+ interface
17 motorized 100mm faders with six customizable channel-strip layers for fast workflow
128x128 SLink port, USB-B 32x32 audio interface, local XLR I/O, AES3 output, and remote app control

Specifications

Processing Core

96kHz XCVI Core

Input Channels

48 Input Processing Channels

Mix Architecture

Stereo Main LR, 12 Mono/Stereo Group/Aux Mixes, 6 Mono/Linkable Matrix

FX Processing

8 FX Engines plus 4 RackUltra FX Engines with dedicated stereo returns

Local Inputs

16 XLR Mic/Line, 3 Stereo Line Inputs, 1 XLR Talkback

Local Outputs

12 XLR, 2 TRS, 1 AES3 Stereo Digital Output, Stereo Headphone Output

Expansion / Networking

128x128 Intelligent SLink Port, RJ45 Network Socket, remote control via free apps

USB Audio

USB-A stereo/multichannel record/playback; USB-B 32x32 audio interface

Control Surface

9" Capacitive Touchscreen, 17 Motorized 100mm Faders, 8 Soft Keys

Product Dimensions

514.9mm L × 440mm W × 198mm H / 20.3" × 17.3" × 7.8"

Product Weight

11.2kg / 24.7 lbs

Packaged Dimensions / Weight

605mm × 702mm × 353mm / 23.8" × 27.6" × 13.9"; 14.9kg / 32.8 lbs
