YADXR12MKII
In stock

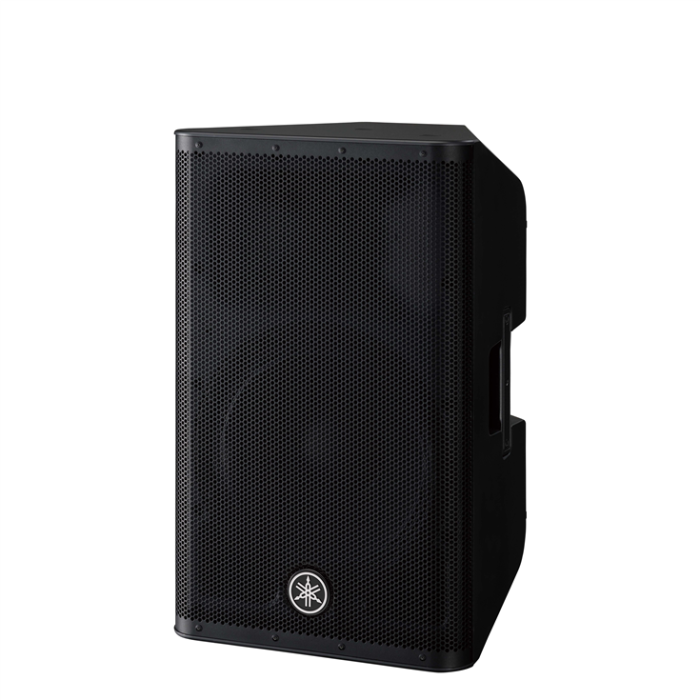

Yamaha DXR12MKII Powered Speaker, 1100W, 12" LF, 1.75" HF Compression Driver
$909.99
Pickup is available in 1 stores
iHomiLA
821 S Los Angeles St, Los Angeles, 90014
United States
Pickup available
3
pcs
In stock
Yamaha
DXR12 MKII Powered Speaker – 12" LF / 1.75" HF Compression Driver
Item #: YADXR12MKII | 1100W Peak Output
The Yamaha DXR12 MKII is a 12-inch, 1100W bi-amplified powered speaker built for superior clarity, power, and reliability. Featuring a 12-inch low-frequency driver and a 1.75-inch neodymium high-frequency compression driver, it delivers up to 134 dB SPL with remarkable precision. The advanced FIR-X tuning ensures accurate crossover performance and minimized phase distortion, while D-Contour dynamic processing maintains consistent clarity at any volume. With a built-in 3-channel mixer, rugged ABS enclosure, and flexible mounting options, the DXR12 MKII is ideal for front-of-house, stage monitoring, and fixed installations.
Part of Yamaha’s DXR MKII Series, the DXR12 MKII offers professional sound reinforcement in a portable format, delivering the power and performance trusted by musicians, venues, and sound engineers worldwide.
Key Features
- 12-inch low-frequency driver with 2.5-inch voice coil and 1.75-inch neodymium compression driver.
- 1100W peak (700W continuous) Class-D bi-amplification for up to 134 dB SPL output.
- FIR-X tuning crossover and D-Contour processor for high-definition sound at any level.
- 3-channel onboard mixer with XLR, TRS, and RCA inputs, plus link and thru outputs.
- Lightweight, durable ABS cabinet with M10 rigging points and dual-angle pole mount socket.
Specifications
Speaker Type
12" 2-way bi-amped powered speaker, bass reflex
Frequency Range
52 Hz – 20 kHz
Coverage
90° horizontal × 60° vertical
Power Output
1100W peak / 700W continuous (LF: 600W, HF: 100W)
Maximum SPL
134 dB SPL
Drivers
12" LF cone, 1.75" HF neodymium compression driver
Inputs
2 × XLR/TRS combo, RCA stereo, XLR Thru and Link Out
Processing
FIR-X tuning, D-Contour (FOH/Monitor/Off)
Dimensions (W × H × D)
14.3" × 23.6" × 13.8" (362 × 601 × 350 mm)
Weight
41 lb (18.6 kg)
Mounting Options
35 mm pole socket (0° / -7° tilt), M10 rigging points
Related Keywords:
Yamaha DXR12 MKII, YADXR12MKII, powered PA speaker, 12-inch active loudspeaker, Yamaha professional audio, live sound
| In-Store Pickup | Yes |
|---|---|
| UPC | 889025122696 |
| Stock Last | 3 |
