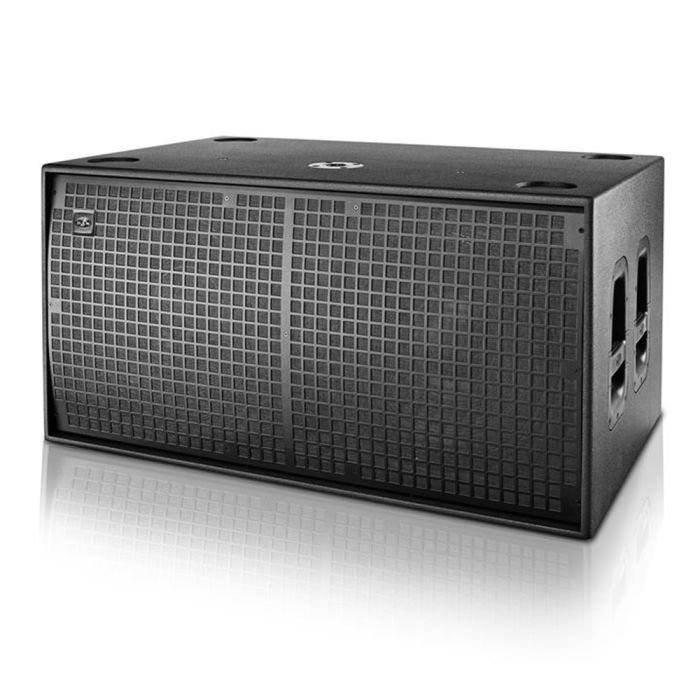

Das Audio Event 218A

Powered high-performance subwoofer system
3600 Wpeak Class D amplifier
Two 18LX loudspeakers with 4 voice coils
Front loaded bass-reflex configuration
Durable ISO-flex finish.

The EVENT-218A dual 18 powered subwoofer makes use of one of DASs most acclaimed loudspeakers; the LX series long excursion transducers which were introduced in the high-level LX-218. The enclosure is designed for horizontal use; built using quality Birch plywood; finished with the ISO-flex coating and has a pole mount socket on the upper panel.

The power amplifier provides 3600 Wpeak power and offers features found on the more expensive LX subwoofers such as the Cardioid Preset mode switch which offers specific signal treatment for easy set-up of pairs of systems in cardioid subwoofer applications. The system includes two balanced inputs (A-B) with stereo HPF (100 Hz) filtered output connections for satellite systems. Defeating the HPF filter offers stereo loop-thru connections. The variable LPF crossover ranges from 80 Hz-125 Hz. Gain control and polarity reverse feature to increase user control over the system.

Specifications:

• Nominal LF Amplifier Power: 3600 Wpeak
• Frequency Range (-10 dB): 32 Hz - 125 Hz
• Rated Peak SPL at 1 m: 140 dB
• Internal Crossover: 100 Hz
• Connectors: Input: Female XLR Loop Thru: Male XLR AC Input: powerCON AC Output: powerCON
• AC Requirements: 6.0 A, 115 V, 50 Hz/60 Hz 3.0 A, 230 V, 50 Hz/60 Hz
• Enclosure Material: Birch Plywood
• Color/Finish: Black ISO-flex Paint
