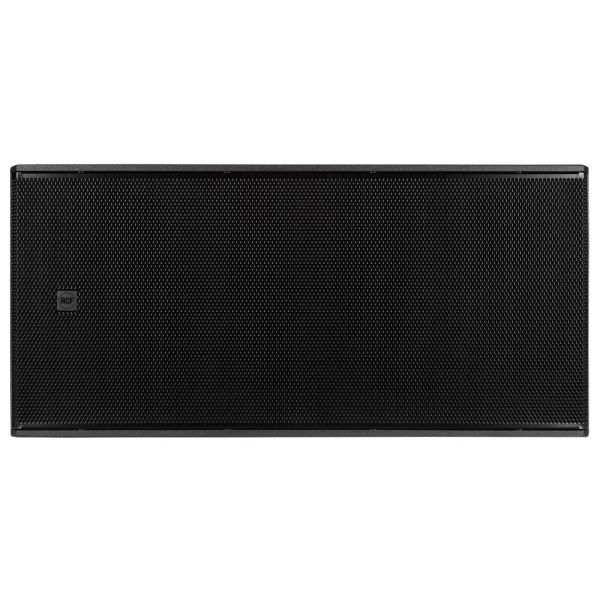

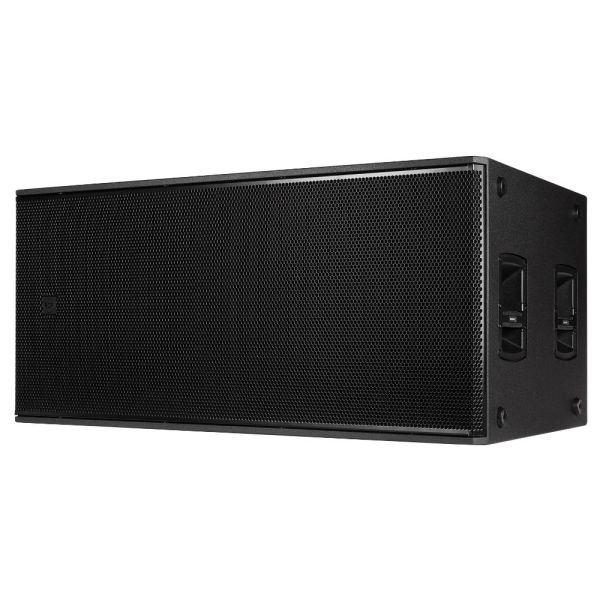

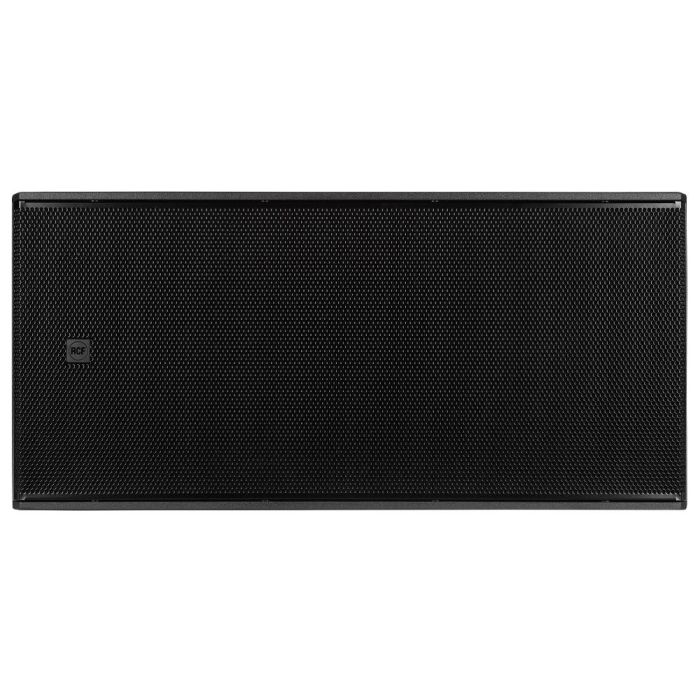

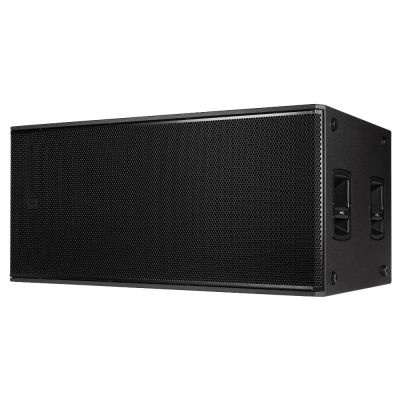

The SUB 8008-AS is a double 18” high power active subwoofer for live bands, DJs, Clubs, and Rental Companies. It employs a state-of-the-art transducer featuring a high-power ceramic magnetic circuit with a 4” voice coil. The power amplifier manages extreme currents up to 4400W delivering sound pressure levels up to 137 dB with exceptional headroom. The ultra-fast attack with accurate power handling is managed with high efficiency, producing a very low heat loss for silent and fan-less cooling. Built specifically for demanding live sound applications with deep, powerful bass response. Rear panel controls include 12 presets, crossover frequency, polarity switch, Deep/Punch selection, cardioid, and output delay settings. The tour-ready, rugged all-wood cabinet with scratch-resistant polyurea coating is easy to carry and secure for installation. With its rugged construction, sound quality, and high power, SUB 8008-AS is perfect in mid to big-sized venues and touring applications.

Legendary subwoofers
RCF subwoofers are the first choice of many sound engineers, thanks to the very high SPL levels at very low frequencies, small dimensions compared to the competitors, self-powered design, internal delay control, long-term reliability, cardioid configuration options, and impressive size/weight to SPL output ratio. Your crowd will be able to live an engaging immersive experience in both live sound or DJing applications.

Industry-Leading Subs
Lightweight and powerful, RCF woofers are a reference in high performance. RCF Precision Transducers engineers have developed new specific magnet sizes and molds to optimize magnetic flux while maintaining a low weight. The 18", 4.0" voice coil magnetic circuit topology is capable of delivering the highest, balanced level of performance in three specific areas: maintenance of a consistent, high integrity magnetic flux gap, exceptionally low distortion and efficiently integrating the magnetic circuit in a minimum weight design. The T-pole design optimization generates the minimum amount of flux modulation in the magnetic assembly during typical voice coil movement within the gap.

Tour-ready workhorse

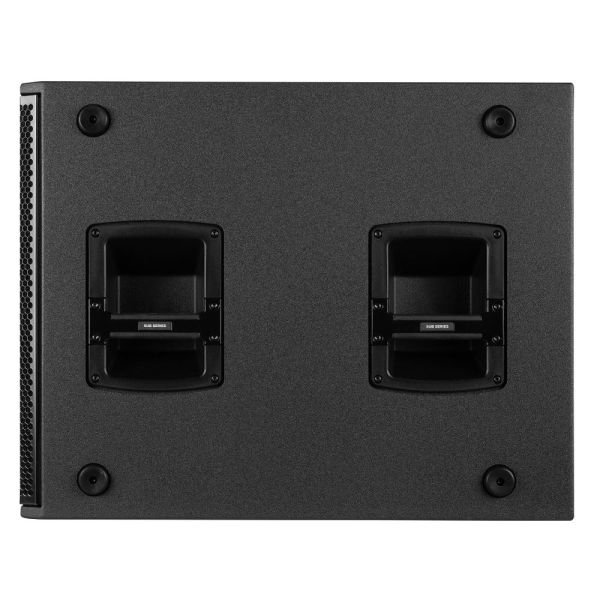

SUB 8008-AS is suitable for a wide range of live sound applications. The rugged all-plywood cabinet is easy to carry and two or more cabinets are stackable and light-weight, for easy set-up and tear down, thanks to the ergonomic handles with rubber grip on each side. Two M20 threaded pole mounts on the top and side allow the cabinet to be used in vertical or horizontal configurations. The heavy-duty polyurea coating, the powder-coated metal grille, and the rugged structure of the cabinet withstand long-term use and transportation. Separate housing for the amplifier guarantees component efficiency and reliability. An acoustically transparent sound foam backing on the inside of the grille ensures protection from dust and humidity. Due to the frontal vented ports, the subwoofer can also be used in recessed spaces.

Power that moves

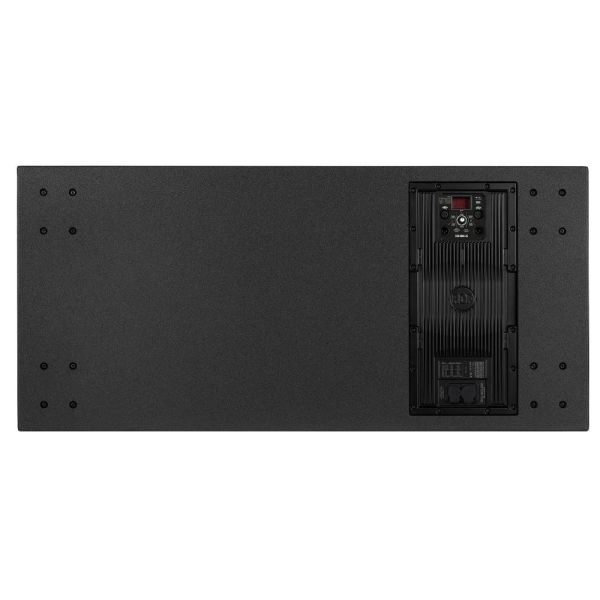

The most powerful amplifier in its class. RCF's improvements in transducer design make them stronger and powerful, so the amplifier follows the evolution. With 4400W peak power, the 2-channel Class-D amplifier is able to manage extreme sound pressure levels with an ultra-fast attack, realistic transient response, and very low heat loss. So energy-efficient that there's no need for a cooling fan - the amplifier is attached to a solid aluminum heat exchanger in the rear of the cabinet - with no moving parts. The stereo input circuit with crossover features a new low distortion design with an advanced safety limiter, maintaining the true character of the input signal at all levels. RCF amplifiers are designed according to EN62368-1 for maximum safety and present a Switch Mode Power Supply section joining high-efficiency with minimum weight.

Acoustical specifications

Frequency Response: 30 Hz ÷ 120 Hz
Max SPL @ 1m: 137 dB

Input/Output section

Input signal: bal/unbal
Input connectors: XLR
Output connectors: XLR
Input sensitivity: -2 dBu/+4 dBu

Power section

Total Power: 4400 W Peak
Low frequencies: 4400 W Peak
Cooling: Convection/Forced
Connections: Powercon TRUE1 TOP IN/OUT

Size

Height: 550 mm / 21.65 inches
Width: 1180 mm / 46.46 inches
Depth: 700 mm / 27.56 inches
Weight: 80 kg / 176.37 lbs

Transducers Woofer: 2 x 18'', 4.0'' v.c

Processor section

Crossover Frequencies: Selectable
Protections: Thermal, Excurs., RMS
Limiter: Soft Limiter
Controls: Xover, Phase switch, Deep/Punch, Output
Delay Setting

Physical specifications

Cabinet/Case Material: Plywood
Hardware: 2 x M20
Handles: 2 x side
Grille: Steel
Color: Black

Shipping information

Package Height: 600 mm / 23.62 inches
Package Width: 1370 mm / 53.94 inches
Package Depth: 900 mm / 35.43 inches
Package Weight: 86 kg / 189.6 lbs
