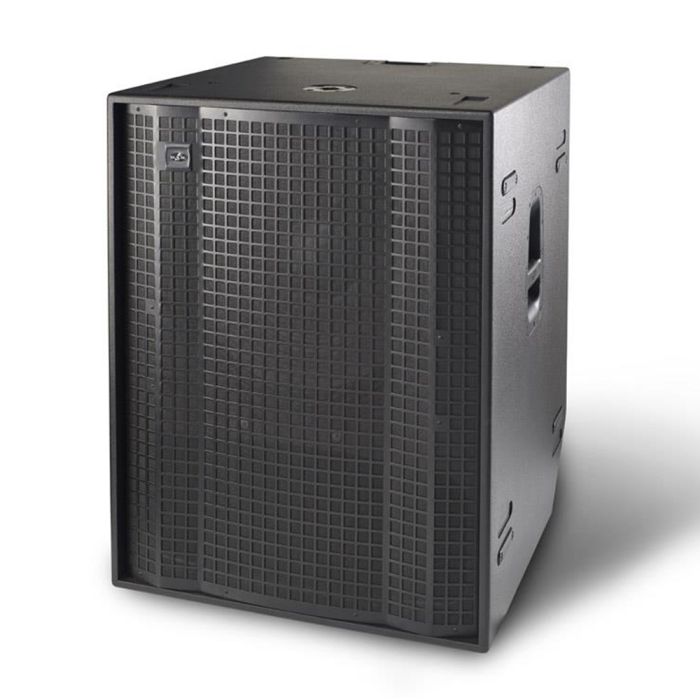

Das Audio Event 121A

Active direct radiating rear-loaded subwoofer system
1 x 21 DAS 21LFN neodymium loudspeaker
3200Wpeak 1600 Wcontinuous
Class D amplifier and digital signal processing (DSP)
Two balanced inputs with stereo filtered output connections
Variable low-pass filter 63 Hz-100 Hz
Top located pole mount socket for TRD-6 optional pole mount

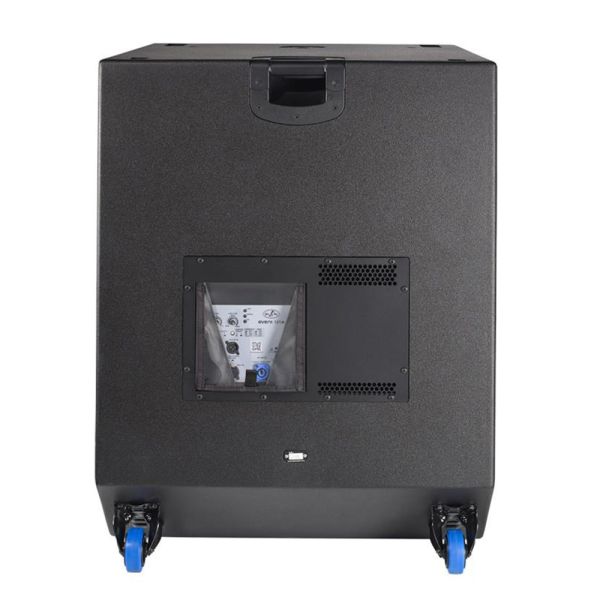

Rear located wheels to ease transport
Top grade Birch cabinet construction
Durable ISO-flex finish

The EVENT-121A is a direct radiating rear-loaded powered subwoofer system which incorporates a single 21 neodymium loudspeaker providing earth-moving low-frequency reproduction for the Event Series line arrays. The combination of direct radiation and rear-loading provides a high output; tight and accurate sub-bass response.

The EVENT-121A employs the new DAS 21LFN loudspeaker which offers impressive features such as a 4 sandwich split winding voice coil; a powerful FEA optimized neodymium magnet assembly and a FEA optimized suspension system with double silicon spider. The result is a loudspeaker with exceptional sensitivity; high power handling capacity and a quality suspension design capable of withstanding the stress and mechanical fatigue of todays high-power pro audio systems. An aluminum demodulating ring benefits lower distortion and effective forced ventilation of the voice coil gap provides for a high thermal rating; and reduced power compression.

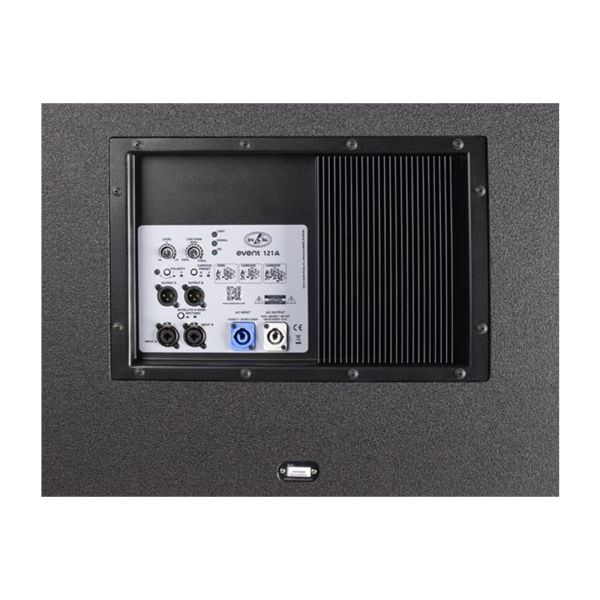

The EVENT-121A electronics package includes a 3200 Wpeak Class D amplifier and 24-bit high-end DSP for top quality audio reproduction. On the rear panel; controls can be found for gain; polarity and a continually variable low-pass filter which ranges from 63 Hz to 100 Hz. A unique cardioid preset button simplifies the use of subs in cardioid configurations; making setup of two to three units a snap without the need for an external DSP. The EVENT-121A is phase response coherent with the EVENT-208A; EVENT-210A and EVENT-212A active tops offering precise alignment. Two balanced inputs with stereo filtered outputs which can be switched to pass-through connections are provided.

Specification:

• Nominal LF Amplifier Power : 3200 Wpeak - 1600 Wcontinuous
• Frequency Range : (-10 dB) 30 Hz - 125 Hz
• Rated Peak SPL at 1 m : 141 dB
• Connectors : INPUT: 2 x Female XLR LOOP THRU: 2 x Male XLR AC INPUT: powerCON NAC 3 FCA AC OUTPUT: powerCON NAC 3 FCB
• AC Requirements : 115 V, 7.2 A, 50 Hz/60 Hz 230 V, 3.6 A, 50 Hz/60 Hz
• Enclosure Material : Birch Plywood
• Color/Finish : Black/ISO-flex
• Dimensions (H x W x D) : 96 x 73.8 x 75 cm 37.8 x 29 x 29.5 in
• Weight : 75 kg (165 lb)
