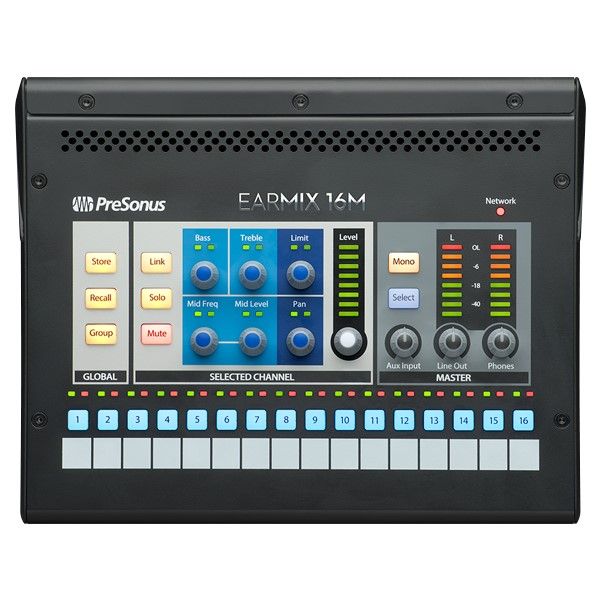

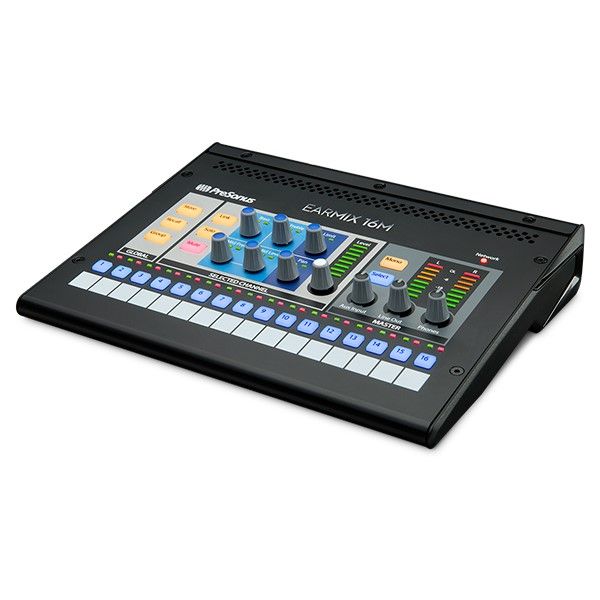

PreSonus EarMix 16M
Features

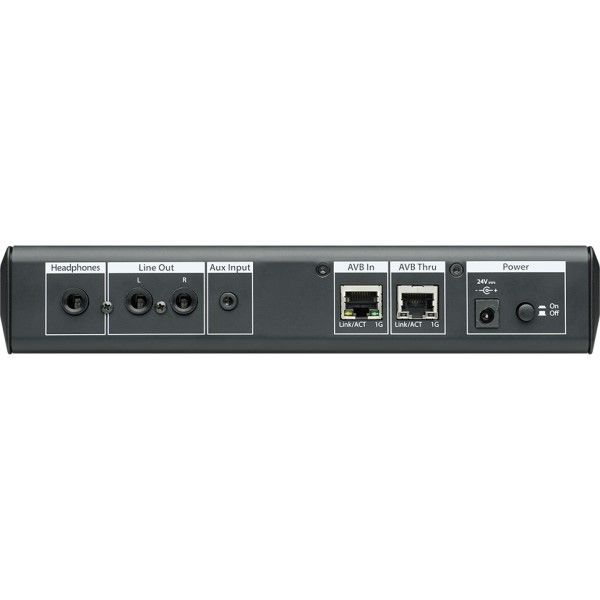

Analog Input/Output
- 1/8-inch stereo aux input
- 2 Balanced ¼-inch TRS line outputs
- ¼-inch TRS stereo headphone output with loud, clear headphone amp that can drive low-impedance in-ear monitors
Meters, Controls, and Processing
- 3-band EQ with sweepable mid frequency on all channels and main mix
- Limiter on all channels and main mix
- Stereo channel linking
- Channel grouping
- Solo and Mute
- Mix scene Store and Recall; store up to 16 mix scenes locally
- 16 Signal present and clip LEDs (one for each input)
- 8-segment stereo output meter
- Channel Level rotary control with 8-segment level indicator
- Aux Input level control
- Independent Monitor (line out) and Phones level controls
- Routing setup from StudioLive Series III consoles and UC Surface
Digital
- 16 mono channels of input via AVB networking
- 2 AVB Ethernet ports
- 24 bit, up to 48 kHz operation
Power
- External 24 VDC power supply (included)
- Support for PoE power
Physical
- Mic stand mounting option (sold separately)
Technical Specifications
Headphone Output
Type: ¼” TRS Female, active stereo
Maximum Output: 150 mW/ch. @ 60Ω load
Frequency Response: 20 Hz – 20 kHz (± 0.05 dB)
THD+N: 0.01%, 1 kHz, max gain, 20 Hz BW, unwtd
Line Outputs
Type: ¼” TRS Female, balanced
Maximum Output Level: +18 dBu, ±0.5 dBu
Output Impedance: 100Ω
Digital Audio
DAC Dynamic Range: 115 dB (A-wtd, 48 kHz)
AVB Audio Network Ports: RJ45
Sampling Rate: 48 kHz, 44.1 kHz
Power
External Power Supply: 24 VDC
PoE Power: 802.3at Type 1
Physical
Height: 1.8” (46 mm)
Width: 9.4” (239 mm)
Depth: 7.6” (193 mm)
Weight: 1.2 lbs (0.5 kg)
| UPC | 673454006470 |
|---|
